ViscousForces.cl File Reference

Tool to compute the fluid viscous force and moment. More...

#include "resources/Scripts/types/types.h"
#include "resources/Scripts/KernelFunctions/Kernel.h"

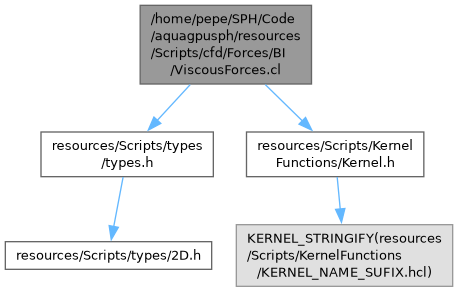

Include dependency graph for ViscousForces.cl:

Macros
#define	_F_   viscousForces_f[i].XYZ

Functions
__kernel void	entry (const __global uint *iset, const __global int *imove, __global vec *viscousForces_f, __global vec4 *viscousForces_m, const __global vec *r, const __global vec *normal, const __global vec *u, const __global float *rho, const __global float *m, __constant float *visc_dyn, usize N, float dr, unsigned int viscousForces_iset, vec viscousForces_r, LINKLIST_LOCAL_PARAMS)
	Tool to compute the viscous force and moment for an especific body.

Detailed Description

Tool to compute the fluid viscous force and moment.

Macro Definition Documentation

_F_

#define _F_   viscousForces_f[i].XYZ

Function Documentation

entry()

__kernel void entry	(	const __global uint *	iset,
		const __global int *	imove,
		__global vec *	viscousForces_f,
		__global vec4 *	viscousForces_m,
		const __global vec *	r,
		const __global vec *	normal,
		const __global vec *	u,
		const __global float *	rho,
		const __global float *	m,
		__constant float *	visc_dyn,
		usize	N,
		float	dr,
		unsigned int	viscousForces_iset,
		vec	viscousForces_r,
		LINKLIST_LOCAL_PARAMS	)

Tool to compute the viscous force and moment for an especific body.

In this approach the following operation is performed for the boundary elements: \( \mathbf{f}_a = \mu \, \sum_b -\frac{ \left(\mathbf{u}_b - \mathbf{u}_a\right) - \left(\left(\mathbf{u}_b - \mathbf{u}_a\right) \cdot \mathbf{n}_a \right) \mathbf{n}_a}{ \left(\mathbf{r}_b - \mathbf{r}_a\right) \cdot \mathbf{n}_a}s_a \, W\left(\mathbf{u}_b - \mathbf{u}_a\right) \frac{m_b}{\rho_b}\) where \( s_a \) is the area of the element, stored in the masses array. The moment is computed therefore as: \( \mathbf{m}_a = \mathbf{f}_a \times \left(\mathbf{r}_a - \mathbf{r}_0 \right) \) becoming \( \mathbf{r}_0 \) the reference point where the moment should be computed.

Parameters

iset	Set of particles index.
imove	Moving flags. imove > 0 for regular fluid particles. imove = 0 for sensors. imove < 0 for boundary elements/particles.
viscousForces_f	Force of each boundary element to be computed [N].
viscousForces_m	Moment of each boundary element to be computed
r	Position \( \mathbf{r} \).
normal	Normal \( \mathbf{n} \).
u	Velocity \( \mathbf{u} \).
rho	Density \( \rho \).
m	Mass \( m \).
visc_dyn	Dynamic viscosity \( \mu \).
icell	Cell where each particle is located.
ihoc	Head of chain for each cell (first particle found).
N	Number of particles.
n_cells	Number of cells in each direction
dr	Distance between particles \( \Delta r \).
viscousForces_iset	Particles set to be computed.
viscousForces_r	Point with respect the moments are computed \( \mathbf{r}_0 \).

Here is the call graph for this function:
