Ghost particles Laplacian of the velocity computation. More...

#include "resources/Scripts/types/types.h"
#include "resources/Scripts/KernelFunctions/Kernel.h"

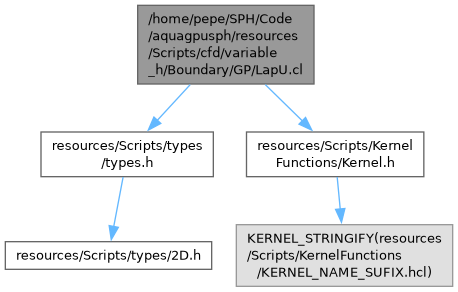

Include dependency graph for LapU.cl:

Macros
#define	__CLEARY__ 8.f
#define	_LAPU_ lap_u[i].XYZ

Functions
__kernel void	entry (const __global int imove, const __global vec r, const __global vec u, const __global float rho, const __global float m, const __global float h_var, __global vec *lap_u, usize N, LINKLIST_LOCAL_PARAMS)
	Ghost particles Laplacian of the velocity computation.

Detailed Description

Ghost particles Laplacian of the velocity computation.

Macro Definition Documentation

◆ CLEARY

#define __CLEARY__ 8.f

◆ _LAPU_

#define _LAPU_ lap_u[i].XYZ

Function Documentation

◆ entry()

__kernel void entry	(	const __global int *	imove,
		const __global vec *	r,
		const __global vec *	u,
		const __global float *	rho,
		const __global float *	m,
		const __global float *	h_var,
		__global vec *	lap_u,
		usize	N,
		LINKLIST_LOCAL_PARAMS	)

Ghost particles Laplacian of the velocity computation.

This method compute the Laplacian of the velocity also in the mirroring boundary elements because such information will be required to extend the pressure field.

Parameters

imove	Moving flags. imove > 0 for regular fluid particles. imove = 0 for sensors. imove < 0 for boundary elements/particles.
r	Position \( \mathbf{r} \).
u	Velocity \( \mathbf{u} \).
rho	Density \( \rho \).
m	Mass \( m \).
h_var	variable kernel lenght \( h \).
lap_u	Velocity laplacian \( \frac{\Delta \mathbf{u}}{rho} \).
icell	Cell where each particle is located.
ihoc	Head of chain for each cell (first particle found).
N	Number of particles.
n_cells	Number of cells in each direction

Here is the call graph for this function:
