Interpolation.cl File Reference

Fluid particles interactions computation. More...

#include "resources/Scripts/types/types.h"
#include "resources/Scripts/KernelFunctions/Kernel.h"

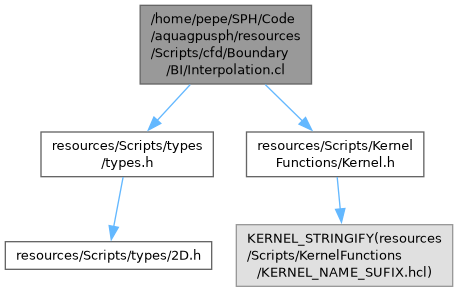

Include dependency graph for Interpolation.cl:

Macros
#define	_P_   p[i]

Functions
__kernel void	entry (const __global uint *iset, const __global int *imove, const __global vec *r, const __global float *m, const __global float *rho, const __global vec *grad_p, __global float *p, __constant float *refd, usize N, LINKLIST_LOCAL_PARAMS)
	Pressure interpolation at the boundary elements.

Detailed Description

Fluid particles interactions computation.

Macro Definition Documentation

_P_

#define _P_   p[i]

Function Documentation

entry()

__kernel void entry	(	const __global uint *	iset,
		const __global int *	imove,
		const __global vec *	r,
		const __global float *	m,
		const __global float *	rho,
		const __global vec *	grad_p,
		__global float *	p,
		__constant float *	refd,
		usize	N,
		LINKLIST_LOCAL_PARAMS	)

Pressure interpolation at the boundary elements.

The values are computed using just the fluid information. The resulting interpolated values are not renormalized yet.

Just the elements with the flag imove = -3 are considered boundary elements.

Parameters

iset	Set of particles index.
imove	Moving flags. imove > 0 for regular fluid particles. imove = 0 for sensors. imove < 0 for boundary elements/particles.
r	Position \( \mathbf{r} \).
m	Mass \( m \).
rho	Density \( \rho \).
grad_p	Pressure gradient \( \frac{\nabla p}{rho} \).
p	Pressure \( p \).
icell	Cell where each particle is located.
ihoc	Head of chain for each cell (first particle found).
refd	Density of reference of the fluid \( \rho_0 \).
N	Number of particles.
n_cells	Number of cells in each direction

See also

SensorsRenormalization.cl

Here is the call graph for this function:
