MPI syncing point. More...

#include "resources/Scripts/types/types.h"
#include "resources/Scripts/KernelFunctions/Kernel.h"

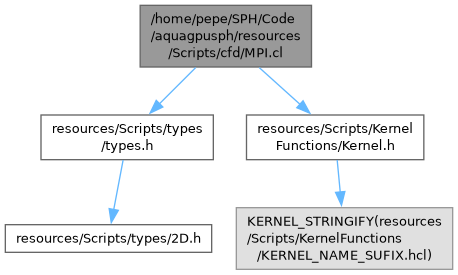

Include dependency graph for MPI.cl:

Macros
#define	__CLEARY__ 8.f
#define	_SHEPARD_ shepard[i]
#define	_GRADP_ grad_p[i].XYZ
#define	_LAPU_ lap_u[i].XYZ
#define	_DIVU_ div_u[i]

Functions
__kernel void	copy (__global unsigned int mpi_iset, __global vec mpi_r, __global vec mpi_u, __global vec mpi_dudt, __global float mpi_rho, __global float mpi_drhodt, __global float mpi_m, const __global unsigned int iset, const __global vec r, const __global vec u, const __global vec dudt, const __global float rho, const __global float drhodt, const __global float m, usize N)
	Copy the data.
__kernel void	append (__global unsigned int iset, __global vec r, __global vec u, __global vec dudt, __global float rho, __global float drhodt, __global float m, __global int imove, const __global usize mpi_local_mask, const __global unsigned int mpi_iset, const __global vec mpi_r, const __global vec mpi_u, const __global vec mpi_dudt, const __global float mpi_rho, const __global float mpi_drhodt, const __global float mpi_m, unsigned int mpi_rank, usize nbuffer, usize N)
	Append the particles received from other processes.
__kernel void	remove (__global int imove, __global vec r, __global vec u, __global vec dudt, __global float m, const __global usize mpi_local_mask, unsigned int mpi_rank, vec domain_max, usize N)
	Remove the particles sent to other processes.
__kernel void	backup_r (const __global usize mpi_neigh_mask, const __global vec mpi_r, __global vec *mpi_r_in, vec r_max, unsigned int mpi_rank, usize N, usize n_radix)
	Backup the position of the MPI particles to sort that later.
__kernel void	sort (const __global unsigned int mpi_iset_in, __global unsigned int mpi_iset, const __global vec mpi_r_in, __global vec mpi_r, const __global vec mpi_u_in, __global vec mpi_u, const __global float mpi_rho_in, __global float mpi_rho, const __global float mpi_m_in, __global float mpi_m, const __global usize *mpi_id_sorted, usize N)
	Sort all the particle variables by the cell indexes.
__kernel void	eos (__global unsigned int mpi_iset, __global float mpi_rho, __global float mpi_p, __constant float refd, usize N, float cs, float p0)
	Stiff Equation Of State (EOS) computation.
__kernel void	gamma (const __global int imove, const __global vec r, const __global float rho, const __global float m, const __global vec mpi_r, const __global float mpi_rho, const __global float mpi_m, __global float shepard, usize N, LINKLIST_REMOTE_PARAMS)
	Shepard factor computation.
__kernel void	interactions (const __global int imove, const __global vec r, const __global vec u, const __global float rho, const __global float p, const __global vec mpi_r, const __global vec mpi_u, const __global float mpi_rho, const __global float mpi_p, const __global float mpi_m, __global vec grad_p, __global vec lap_u, __global float *div_u, usize N, LINKLIST_REMOTE_PARAMS)
	Fluid particles interactions with the neighbours from other processes.

Detailed Description

MPI syncing point.

Macro Definition Documentation

◆ CLEARY

#define __CLEARY__ 8.f

◆ _DIVU_

#define _DIVU_ div_u[i]

◆ _GRADP_

#define _GRADP_ grad_p[i].XYZ

◆ _LAPU_

#define _LAPU_ lap_u[i].XYZ

◆ _SHEPARD_

#define _SHEPARD_ shepard[i]

Function Documentation

◆ append()

__kernel void append	(	__global unsigned int *	iset,
		__global vec *	r,
		__global vec *	u,
		__global vec *	dudt,
		__global float *	rho,
		__global float *	drhodt,
		__global float *	m,
		__global int *	imove,
		const __global usize *	mpi_local_mask,
		const __global unsigned int *	mpi_iset,
		const __global vec *	mpi_r,
		const __global vec *	mpi_u,
		const __global vec *	mpi_dudt,
		const __global float *	mpi_rho,
		const __global float *	mpi_drhodt,
		const __global float *	mpi_m,
		unsigned int	mpi_rank,
		usize	nbuffer,
		usize	N )

Append the particles received from other processes.

The restored particles has always imove=0 flag

Parameters

imove	Moving flags imove > 0 for regular fluid particles imove = 0 for sensors imove < 0 for boundary elements/particles
r_in	Position \( \mathbf{r} \)
u_in	Velocity \( \mathbf{u} \)
dudt_in	Velocity rate of change \( \frac{d \mathbf{u}}{d t} \)
rho_in	Density \( \rho \)
drhodt_in	Density rate of change \( \frac{d \rho}{d t} \)
m	Mass \( m \)
mpi_local_mask	Incoming processes mask
mpi_r	Position \( \mathbf{r} \) MPI copy
mpi_u	Velocity \( \mathbf{u} \) MPI copy
mpi_dudt	Velocity rate of change \( \frac{d \mathbf{u}}{d t} \) MPI copy
mpi_rho	Density \( \rho \) MPI copy
mpi_drhodt	Density rate of change \( \frac{d \rho}{d t} \) MPI copy
mpi_m	Mass \( m \) MPI copy
mpi_rank	MPI process index
nbuffer	Number of buffer particles
N	Number of particles

◆ backup_r()

__kernel void backup_r	(	const __global usize *	mpi_neigh_mask,
		const __global vec *	mpi_r,
		__global vec *	mpi_r_in,
		vec	r_max,
		unsigned int	mpi_rank,
		usize	N,
		usize	n_radix )

Backup the position of the MPI particles to sort that later.

Just the particles coming from other processes are backuped

Parameters

mpi_neigh_mask	Incoming processes mask
mpi_r	Position \( \mathbf{r} \) MPI copy
mpi_r_in	Position \( \mathbf{r} \) MPI copy
r_max	The maximum position detected by the Link-List
mpi_rank	The current process id
N	Number of particles
n_radix	Number of elements on `mpi_r_in`

◆ copy()

__kernel void copy	(	__global unsigned int *	mpi_iset,
		__global vec *	mpi_r,
		__global vec *	mpi_u,
		__global vec *	mpi_dudt,
		__global float *	mpi_rho,
		__global float *	mpi_drhodt,
		__global float *	mpi_m,
		const __global unsigned int *	iset,
		const __global vec *	r,
		const __global vec *	u,
		const __global vec *	dudt,
		const __global float *	rho,
		const __global float *	drhodt,
		const __global float *	m,
		usize	N )

Copy the data.

To make the operation as asynchronous as possible, we are copying all the available data, regardless it is useful or not. That is a bit computationally less efficient, but allows to start transfering data ASAP, while we still operate to neglect the particles

It is intended that the fields copied here are the same subsequently exchanged later with the mpi-sync tool

Parameters

mpi_iset	Particles set MPI copy
mpi_r	Position \( \mathbf{r} \) MPI copy
mpi_u	Velocity \( \mathbf{u} \) MPI copy
mpi_dudt	Velocity rate of change \( \frac{d \mathbf{u}}{d t} \) MPI copy
mpi_rho	Density \( \rho \) MPI copy
mpi_drhodt	Density rate of change \( \frac{d \rho}{d t} \) MPI copy
mpi_m	Mass \( m \) MPI copy
iset	Particles set
r	Position \( \mathbf{r} \)
u	Velocity \( \mathbf{u} \)
dudt	Velocity rate of change \( \frac{d \mathbf{u}}{d t} \)
rho	Density \( \rho \)
drhodt	Density rate of change \( \frac{d \rho}{d t} \)
m	Mass \( m \)
N	Number of particles

◆ eos()

__kernel void eos	(	__global unsigned int *	mpi_iset,
		__global float *	mpi_rho,
		__global float *	mpi_p,
		__constant float *	refd,
		usize	N,
		float	cs,
		float	p0 )

Stiff Equation Of State (EOS) computation.

The equation of state relates the pressure and the density fields, \( p = p_0 + c_s^2 \left(\rho - \rho_0 \right) \)

Parameters

mpi_iset	Set of particles index.
mpi_rho	Density \( \rho_{n+1/2} \).
mpi_p	Pressure \( p_{n+1/2} \).
refd	Density of reference of the fluid \( \rho_0 \).
N	Number of particles.
cs	Speed of sound \( c_s \).
p0	Background pressure \( p_0 \).

◆ gamma()

__kernel void gamma	(	const __global int *	imove,
		const __global vec *	r,
		const __global float *	rho,
		const __global float *	m,
		const __global vec *	mpi_r,
		const __global float *	mpi_rho,
		const __global float *	mpi_m,
		__global float *	shepard,
		usize	N,
		LINKLIST_REMOTE_PARAMS	)

Shepard factor computation.

\[ \gamma(\mathbf{x}) = \int_{\Omega} W(\mathbf{y} - \mathbf{x}) \mathrm{d}\mathbf{y} \]

The shepard renormalization factor is applied for several purposes:

To interpolate values
To recover the consistency with the Boundary Integrals formulation
Debugging

In the shepard factor computation the fluid extension particles are not taken into account.

Parameters

imove	Moving flags. imove > 0 for regular fluid particles. imove = 0 for sensors. imove < 0 for boundary elements/particles.
r	Position \( \mathbf{r} \).
rho	Density \( \rho \).
m	Mass \( m \).
mpi_r	Neighs position \( \mathbf{r} \).
mpi_rho	Neighs density \( \rho \).
mpi_m	Neighs mass \( m \).
shepard	Shepard term \( \gamma(\mathbf{x}) = \int_{\Omega} W(\mathbf{y} - \mathbf{x}) \mathrm{d}\mathbf{y} \).
icell	Cell where each particle is located.
ihoc	Head of chain for each cell (first particle found).
N	Number of particles.
n_cells	Number of cells in each direction

Here is the call graph for this function:

◆ interactions()

__kernel void interactions	(	const __global int *	imove,
		const __global vec *	r,
		const __global vec *	u,
		const __global float *	rho,
		const __global float *	p,
		const __global vec *	mpi_r,
		const __global vec *	mpi_u,
		const __global float *	mpi_rho,
		const __global float *	mpi_p,
		const __global float *	mpi_m,
		__global vec *	grad_p,
		__global vec *	lap_u,
		__global float *	div_u,
		usize	N,
		LINKLIST_REMOTE_PARAMS	)

Fluid particles interactions with the neighbours from other processes.

Compute the differential operators involved in the numerical scheme, taking into account just the fluid-fluid interactions with the MPI revceived.

Parameters

imove	Moving flags. imove > 0 for regular fluid particles. imove = 0 for sensors. imove < 0 for boundary elements/particles.
r	Position \( \mathbf{r} \).
u	Velocity \( \mathbf{u} \).
rho	Density \( \rho \).
p	Pressure \( p \).
mpi_r	Neighs position \( \mathbf{r} \).
mpi_u	Neighs velocity \( \mathbf{u} \).
mpi_rho	Neighs density \( \rho \).
mpi_p	Neighs pressure \( p \).
mpi_m	Neighs mass \( m \).
grad_p	Pressure gradient \( \frac{\nabla p}{rho} \).
lap_u	Velocity laplacian \( \frac{\Delta \mathbf{u}}{rho} \).
div_u	Velocity divergence \( \rho \nabla \cdot \mathbf{u} \).
N	Number of particles.
icell	Cell where each particle is located.
mpi_icell	Cell where each neighbour is located.
mpi_ihoc	Head of chain for each cell (first neighbour found).
n_cells	Number of cells in each direction

Here is the call graph for this function:

◆ remove()

__kernel void remove	(	__global int *	imove,
		__global vec *	r,
		__global vec *	u,
		__global vec *	dudt,
		__global float *	m,
		const __global usize *	mpi_local_mask,
		unsigned int	mpi_rank,
		vec	domain_max,
		usize	N )

Remove the particles sent to other processes.

Parameters

imove	Moving flags imove > 0 for regular fluid particles imove = 0 for sensors imove < 0 for boundary elements/particles
r	Position \( \mathbf{r} \)
u	Velocity \( \mathbf{u} \).
dudt	Velocity rate of change \( \frac{d \mathbf{u}}{d t} \).
m	Mass \( m \).
mpi_local_mask	Incoming processes mask
mpi_rank	The current process id
N	Number of particles

◆ sort()

__kernel void sort	(	const __global unsigned int *	mpi_iset_in,
		__global unsigned int *	mpi_iset,
		const __global vec *	mpi_r_in,
		__global vec *	mpi_r,
		const __global vec *	mpi_u_in,
		__global vec *	mpi_u,
		const __global float *	mpi_rho_in,
		__global float *	mpi_rho,
		const __global float *	mpi_m_in,
		__global float *	mpi_m,
		const __global usize *	mpi_id_sorted,
		usize	N )

Sort all the particle variables by the cell indexes.

Due to the large number of registers consumed (21 global memory arrays are loaded), it is safer carrying out the sorting process in to stages. This is the first stage.

Parameters

mpi_r_in	Unsorted position \( \mathbf{r} \).
mpi_r	Sorted position \( \mathbf{r} \).
mpi_u_in	Unsorted velocity \( \mathbf{u} \).
mpi_u	Sorted velocity \( \mathbf{u} \).
mpi_rho_in	Unsorted density \( \rho \).
mpi_rho	Sorted density \( \rho \).
mpi_m_in	Unsorted mass \( m \).
mpi_m	Sorted mass \( m \).
mpi_id_sorted	Permutations list from the unsorted space to the sorted one.
N	Number of particles.

Macros

Functions

Detailed Description

Macro Definition Documentation

◆ __CLEARY__

◆ _DIVU_

◆ _GRADP_

◆ _LAPU_

◆ _SHEPARD_

Function Documentation

◆ append()

◆ backup_r()

◆ copy()

◆ eos()

◆ gamma()

◆ interactions()

◆ remove()

◆ sort()
