deltaSPH.cl File Reference

Particles interactions computation. More...

#include "resources/Scripts/types/types.h"
#include "resources/Scripts/KernelFunctions/Kernel.h"

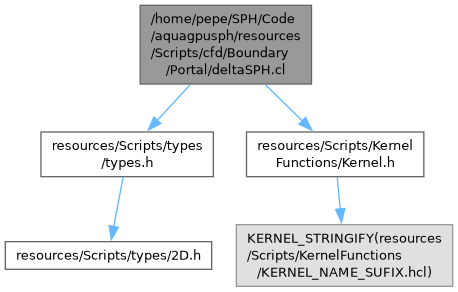

Include dependency graph for deltaSPH.cl:

Macros
#define	_GRADP_   lap_p_corr[i].XYZ
#define	_LAPP_   lap_p[i]
#define	_LAPP_   lap_p[i]

Functions
__kernel void	full (const __global int *imove, const __global int *imirrored, const __global vec *r, const __global float *rho, const __global float *m, const __global float *p, __global vec *lap_p_corr, usize N, LINKLIST_LOCAL_PARAMS)
	MLS based correction term, due to the particles at the other portal side.
__kernel void	lapp (const __global int *imove, const __global int *imirrored, const __global vec *r, const __global float *rho, const __global float *m, const __global float *p, __global float *lap_p, usize N, LINKLIST_LOCAL_PARAMS)
	Laplacian of the pressure computation.
__kernel void	lapp_corr (const __global int *imove, const __global int *imirrored, const __global vec *r, const __global float *rho, const __global float *m, const __global vec *lap_p_corr, __global float *lap_p, usize N, LINKLIST_LOCAL_PARAMS)
	Laplacian of the pressure correction.

Detailed Description

Particles interactions computation.

Macro Definition Documentation

_GRADP_

#define _GRADP_   lap_p_corr[i].XYZ

_LAPP_ [1/2]

#define _LAPP_   lap_p[i]

_LAPP_ [2/2]

#define _LAPP_   lap_p[i]

Function Documentation

full()

__kernel void full	(	const __global int *	imove,
		const __global int *	imirrored,
		const __global vec *	r,
		const __global float *	rho,
		const __global float *	m,
		const __global float *	p,
		__global vec *	lap_p_corr,
		usize	N,
		LINKLIST_LOCAL_PARAMS	)

MLS based correction term, due to the particles at the other portal side.

The term computed with this function should be later renormalized by MLS.

Parameters

imove	Moving flags. imove > 0 for regular fluid particles. imove = 0 for sensors. imove < 0 for boundary elements/particles.
imirrored	0 if the particle has not been mirrored, 1 otherwise.
r	Position \( \mathbf{r} \).
rho	Density \( \rho \).
m	Mass \( m \).
p	Pressure \( p \).
lap_p_corr	Correction term for the Morris Laplacian formula.
icell	Cell where each particle is located.
ihoc	Head of chain for each cell (first particle found).
N	Number of particles.
n_cells	Number of cells in each direction

Here is the call graph for this function:

lapp()

__kernel void lapp	(	const __global int *	imove,
		const __global int *	imirrored,
		const __global vec *	r,
		const __global float *	rho,
		const __global float *	m,
		const __global float *	p,
		__global float *	lap_p,
		usize	N,
		LINKLIST_LOCAL_PARAMS	)

Laplacian of the pressure computation.

Parameters

imove	Moving flags. imove > 0 for regular fluid particles. imove = 0 for sensors. imove < 0 for boundary elements/particles.
imirrored	0 if the particle has not been mirrored, 1 otherwise.
r	Position \( \mathbf{r} \).
rho	Density \( \rho \).
m	Mass \( m \).
p	Pressure \( p \).
lap_p	Pressure laplacian \( \Delta p \).
icell	Cell where each particle is located.
ihoc	Head of chain for each cell (first particle found).
N	Number of particles.
n_cells	Number of cells in each direction

Here is the call graph for this function:

lapp_corr()

__kernel void lapp_corr	(	const __global int *	imove,
		const __global int *	imirrored,
		const __global vec *	r,
		const __global float *	rho,
		const __global float *	m,
		const __global vec *	lap_p_corr,
		__global float *	lap_p,
		usize	N,
		LINKLIST_LOCAL_PARAMS	)

Laplacian of the pressure correction.

Parameters

imove	Moving flags. imove > 0 for regular fluid particles. imove = 0 for sensors. imove < 0 for boundary elements/particles.
imirrored	0 if the particle has not been mirrored, 1 otherwise.
r	Position \( \mathbf{r} \).
rho	Density \( \rho \).
m	Mass \( m \).
p	Pressure \( p \).
lap_p_corr	Correction term for the Morris Laplacian formula.
lap_p	Pressure laplacian \( \Delta p \).
icell	Cell where each particle is located.
ihoc	Head of chain for each cell (first particle found).
N	Number of particles.
n_cells	Number of cells in each direction

Here is the call graph for this function:
