Fluid particles interactions computation. More...

#include "resources/Scripts/types/types.h"
#include "resources/Scripts/KernelFunctions/Kernel.h"
#include "resources/Scripts/cfd/ideal_gas/sound_speed.hcl"

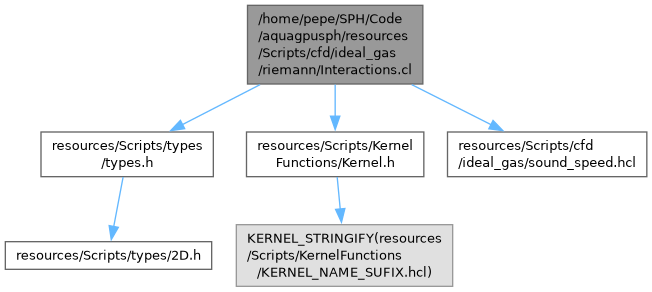

Include dependency graph for Interactions.cl:

Macros
#define	_GRADP_ grad_p[i].XYZ
#define	_W_DEN_ work_density[i]
#define	_DIVU_ div_u[i]

Functions
__kernel void	entry (const __global unsigned int iset, const __global int imove, const __global vec r, const __global vec u, const __global float rho, const __global float m, const __global float p, __global vec grad_p, __global float div_u, __global float work_density, __constant float *gamma, usize N, LINKLIST_LOCAL_PARAMS)
	Fluid particles interactions computation.

Detailed Description

Fluid particles interactions computation.

Macro Definition Documentation

◆ _DIVU_

#define _DIVU_ div_u[i]

◆ _GRADP_

#define _GRADP_ grad_p[i].XYZ

◆ _W_DEN_

#define _W_DEN_ work_density[i]

Function Documentation

◆ entry()

__kernel void entry	(	const __global unsigned int *	iset,
		const __global int *	imove,
		const __global vec *	r,
		const __global vec *	u,
		const __global float *	rho,
		const __global float *	m,
		const __global float *	p,
		__global vec *	grad_p,
		__global float *	div_u,
		__global float *	work_density,
		__constant float *	gamma,
		usize	N,
		LINKLIST_LOCAL_PARAMS	)

Fluid particles interactions computation.

Compute the differential operators involved in the numerical scheme, taking into account just the fluid-fluid interactions.

Parameters

imove	Moving flags. imove > 0 for regular fluid particles. imove = 0 for sensors. imove < 0 for boundary elements/particles.
r	Position \( \mathbf{r} \).
u	Velocity \( \mathbf{u} \).
rho	Density \( \rho \).
m	Mass \( m \).
p	Pressure \( p \).
grad_p	Pressure gradient \( \frac{\nabla p}{rho} \).
lap_u	Velocity laplacian \( \frac{\Delta \mathbf{u}}{rho} \).
div_u	Velocity divergence \( \rho \nabla \cdot \mathbf{u} \).
N	Number of particles.
icell	Cell where each particle is located.
ihoc	Head of chain for each cell (first particle found).
n_cells	Number of cells in each direction

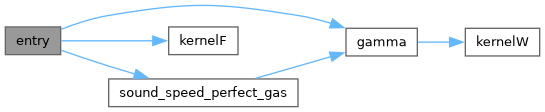

Here is the call graph for this function:
