Aqua::InputOutput::TimeManager Class Reference

Simulation time flow manager. More...

#include <TimeManager.hpp>

Public Member Functions
	TimeManager (const ProblemSetup &sim_data)
	~TimeManager ()
	Destructor.
bool	mustStop ()
	Check if the simulation must be finished.
bool	mustPrintOutput ()
	Check if a general simulation output must be printed.
unsigned int	step () const
	Get the simulation time step index.
float	time () const
	Get the simulation time instant.
unsigned int	frame () const
	Get the simulation frame.
float	dt () const
	Get the simulation time step \( \Delta t \).
float	maxTime () const
	Get the total simulation time to compute.
unsigned int	maxStep () const
	Get the number of frames to compute.
unsigned int	maxFrame () const
	Get the number of frames to compute.
void	outputStep (int s)
	Set the last output event time step index.
int	outputStep () const
	Get the last output event time step index.
int	outputIPF () const
	Get the iterations per output frame.
void	outputTime (float t)
	Set the last output event time instant.
float	outputTime () const
	Get the last output event time instant.
float	outputFPS () const
	Get the output frames per second.

Detailed Description

Simulation time flow manager.

This class controls the time variable \( t \), and more specifically the time events triggers, like the output updates, the number of output frames performed, etc...

See also

Aqua::InputOutput::ProblemSetup::sphTimingParameters

Constructor & Destructor Documentation

TimeManager()

Aqua::InputOutput::TimeManager::TimeManager

(

const ProblemSetup &

sim_data

)

Constructor

Parameters

sim_data

Simulation data

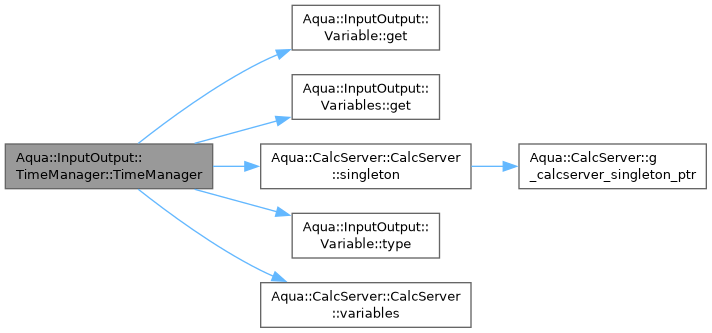

Here is the call graph for this function:

~TimeManager()

Aqua::InputOutput::TimeManager::~TimeManager

(

)

Destructor.

Member Function Documentation

dt()

float Aqua::InputOutput::TimeManager::dt ( ) const

inline

Get the simulation time step \( \Delta t \).

Returns

Simulation time step \( \Delta t \).

frame()

unsigned int Aqua::InputOutput::TimeManager::frame ( ) const

inline

Get the simulation frame.

The frame is the index of the current particles output.

Returns

Simulation frame.

maxFrame()

unsigned int Aqua::InputOutput::TimeManager::maxFrame ( ) const

inline

Get the number of frames to compute.

Returns

Number of frames to compute.

maxStep()

unsigned int Aqua::InputOutput::TimeManager::maxStep ( ) const

inline

Get the number of frames to compute.

Returns

Number of frames to compute.

maxTime()

float Aqua::InputOutput::TimeManager::maxTime ( ) const

inline

Get the total simulation time to compute.

Returns

Total simulation time to compute.

mustPrintOutput()

bool Aqua::InputOutput::TimeManager::mustPrintOutput

(

)

Check if a general simulation output must be printed.

Returns

true if an output should be printed, false otherwise.

Warning

This method is returning true just one time per time step (i.e. until update() is called again).

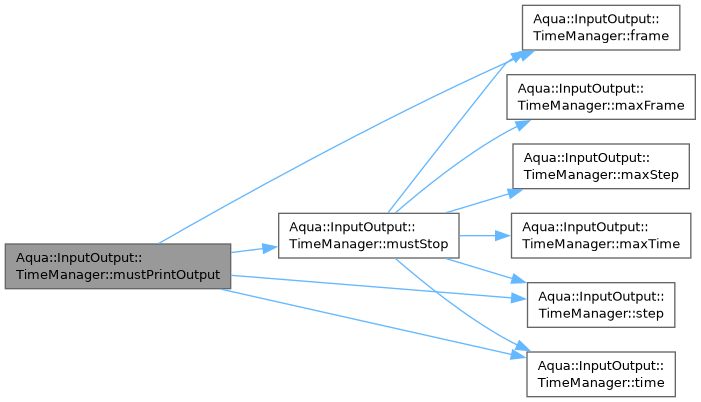

Here is the call graph for this function:

mustStop()

bool Aqua::InputOutput::TimeManager::mustStop

(

)

Check if the simulation must be finished.

Returns

true if simulation should finish, false otherwise.

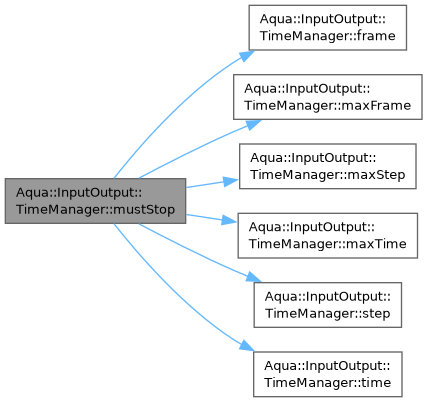

Here is the call graph for this function:

outputFPS()

float Aqua::InputOutput::TimeManager::outputFPS ( ) const

inline

Get the output frames per second.

Returns

Frames per second.

outputIPF()

int Aqua::InputOutput::TimeManager::outputIPF ( ) const

inline

Get the iterations per output frame.

Returns

Iterations per frame.

outputStep() [1/2]

int Aqua::InputOutput::TimeManager::outputStep ( ) const

inline

Get the last output event time step index.

Returns

Last output event time step index.

outputStep() [2/2]

void Aqua::InputOutput::TimeManager::outputStep ( int s )

inline

Set the last output event time step index.

Parameters

s	last output event time step index.

outputTime() [1/2]

float Aqua::InputOutput::TimeManager::outputTime ( ) const

inline

Get the last output event time instant.

Returns

Last output event time instant.

outputTime() [2/2]

void Aqua::InputOutput::TimeManager::outputTime ( float t )

inline

Set the last output event time instant.

Parameters

t	Last output event time instant.

step()

unsigned int Aqua::InputOutput::TimeManager::step ( ) const

inline

Get the simulation time step index.

Returns

Simulation time step index.

time()

float Aqua::InputOutput::TimeManager::time ( ) const

inline

Get the simulation time instant.

Returns

Simulation time instant.

---

The documentation for this class was generated from the following files:

• /home/pepe/SPH/Code/aquagpusph/aquagpusph/TimeManager.hpp
• /home/pepe/SPH/Code/aquagpusph/aquagpusph/TimeManager.cpp
