A generic Scalar variable. More...

#include <Variable.hpp>

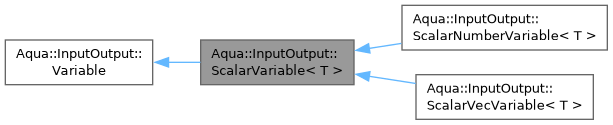

Inheritance diagram for Aqua::InputOutput::ScalarVariable< T >:

[legend]

Collaboration diagram for Aqua::InputOutput::ScalarVariable< T >:

Public Member Functions
	ScalarVariable (const std::string varname, const std::string vartype)
	Constructor.
	~ScalarVariable ()
	Destructor.
bool	isArray ()
	Report that the varaible is not an array.
size_t	typesize () const
	Get the variable type size.
void *	get (bool synced=true)
	Get variable pointer basis pointer.
void	get (T &value, bool synced=true)
	Get variable value.
void	set (void *ptr, bool synced=true)
	Set variable from memory.
void	set (T &value, bool synced=true)
	Set variable value.
T	value (bool synced=true)
	Get the variable value.
void	value (T &value, bool synced=true)
	Set the variable value.
virtual PyObject *	getPythonObject (int i0=0, int n=0)=0
	Get a Python Object representation of the variable.
virtual bool	setFromPythonObject (PyObject *obj, int i0=0, int n=0)=0
	Set the variable from a Python object.
virtual const std::string	asString (bool synced)=0
	Get the variable text representation.
Public Member Functions inherited from Aqua::InputOutput::Variable
	Variable (const std::string varname, const std::string vartype)
	Constructor.
virtual	~Variable ()
	Destructor.
bool	isScalar ()
	Let efficiently know whether the variable is a scalar or not.
std::string	name () const
	Name of the variable.
virtual std::string	type () const
	Type of the variable.
virtual size_t	size () const
	Get the variable type size.
virtual void *	get (bool UNUSED_PARAM synced=true)
	Get variable pointer basis pointer.
void *	get_async ()
	Get variable pointer basis pointer.
void	set_async (void *ptr)
	Set variable from memory.
virtual PyObject *	getPythonObject (int UNUSED_PARAM i0=0, int UNUSED_PARAM n=0)
	Get a Python interpretation of the variable.
virtual bool	setFromPythonObject (PyObject UNUSED_PARAM *obj, int UNUSED_PARAM i0=0, int UNUSED_PARAM n=0)
	Set the variable from a Python object.
virtual const std::string	asString (bool UNUSED_PARAM synced=true)
	Get the variable text representation.
void	setEvent (cl_event event)
	Set the variable current writing event.
void	setWritingEvent (cl_event event)
	Alias of InputOutput::Variable::setEvent()
cl_event	getEvent () const
	Returns the last writing event associated to this variable.
cl_event	getWritingEvent () const
	Alias of InputOutput::Variable::getEvent()
void	addReadingEvent (cl_event event)
	Add a new reading event to the variable.
std::vector< cl_event >	getReadingEvents () const
	Get the list of reading events.
void	sync (bool readonly=false)
	Wait for variable reading and writing events to be completed.

Protected Attributes
T	_value
	Variable value.

Additional Inherited Members
Protected Member Functions inherited from Aqua::InputOutput::Variable
void	cleanReadingEvents ()
	Clean up the list of reading events.
Static Protected Member Functions inherited from Aqua::InputOutput::Variable
static cl_event	createDummyEvent ()
	Create a competed user event to be set as the writing event when synced writing operations are carried out.

Detailed Description

template<class T>
class Aqua::InputOutput::ScalarVariable< T >

A generic Scalar variable.

Constructor & Destructor Documentation

◆ ScalarVariable()

template<class T>

Aqua::InputOutput::ScalarVariable< T >::ScalarVariable	(	const std::string	varname,
		const std::string	vartype )

inline

Constructor.

Parameters

varname	Name of the variable.
vartype	Type of the variable.

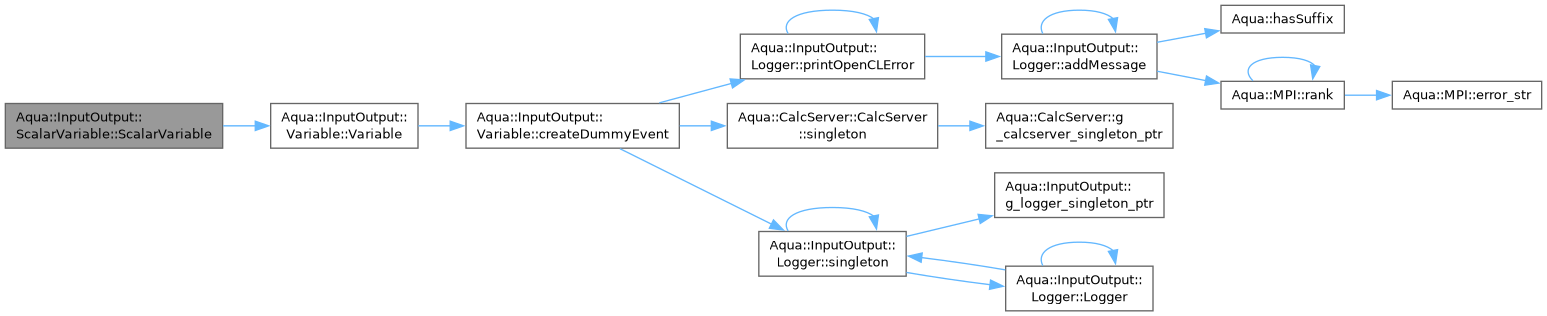

Here is the call graph for this function:

◆ ~ScalarVariable()

template<class T>

Aqua::InputOutput::ScalarVariable< T >::~ScalarVariable ( )

inline

Destructor.

Member Function Documentation

◆ asString()

template<class T>

virtual const std::string Aqua::InputOutput::ScalarVariable< T >::asString ( bool synced )

pure virtual

Get the variable text representation.

Parameters

synced true if the function shall block until the last writing event is dispatched, false otherwise

Returns: The variable represented as a string, NULL in case of errors.

Implemented in Aqua::InputOutput::ScalarNumberVariable< T >, Aqua::InputOutput::ScalarNumberVariable< dcl >, Aqua::InputOutput::ScalarNumberVariable< fcl >, Aqua::InputOutput::ScalarNumberVariable< icl >, Aqua::InputOutput::ScalarNumberVariable< lcl >, Aqua::InputOutput::ScalarNumberVariable< uicl >, Aqua::InputOutput::ScalarNumberVariable< ulcl >, and Aqua::InputOutput::ScalarVecVariable< T >.

◆ get() [1/2]

template<class T>

void * Aqua::InputOutput::ScalarVariable< T >::get ( bool synced = true )

inline

Get variable pointer basis pointer.

This is a blocking operation, that will retain the program until the underlying variable event is complete. For asynchronous variable retrieval see get_async()

Parameters

synced true if the operation shall block the execution until the variable events are dispatched

Returns: Implementation pointer

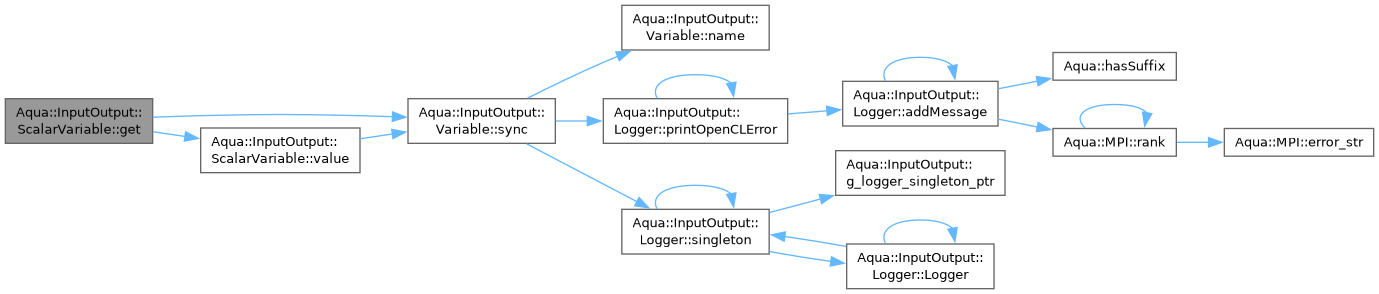

Here is the call graph for this function:

◆ get() [2/2]

template<class T>

void Aqua::InputOutput::ScalarVariable< T >::get	(	T &	value,
		bool	synced = true )

inline

Get variable value.

This is a blocking operation, that will retain the program until the underlying variable event is complete. For asynchronous variable retrieval see get_async()

Parameters

value	Output value
synced	true if the operation shall block the execution until the variable events are dispatched

Here is the call graph for this function:

◆ getPythonObject()

template<class T>

virtual PyObject * Aqua::InputOutput::ScalarVariable< T >::getPythonObject	(	int	i0 = 0,
		int	n = 0 )

pure virtual

Get a Python Object representation of the variable.

Parameters

i0	ignored parameter.
n	ignored parameter.

Returns: Python object.

Implemented in Aqua::InputOutput::DoubleVariable, Aqua::InputOutput::FloatVariable, Aqua::InputOutput::IntVariable, Aqua::InputOutput::LongVariable, Aqua::InputOutput::ScalarVecVariable< T >, Aqua::InputOutput::UIntVariable, and Aqua::InputOutput::ULongVariable.

◆ isArray()

template<class T>

bool Aqua::InputOutput::ScalarVariable< T >::isArray ( )

inlinevirtual

Report that the varaible is not an array.

Returns: false

Implements Aqua::InputOutput::Variable.

◆ set() [1/2]

template<class T>

void Aqua::InputOutput::ScalarVariable< T >::set	(	T &	value,
		bool	synced = true )

inline

Set variable value.

This is a blocking operation, that will retain the program until the underlying variable event is complete.

Parameters

value	New value
synced	true if the operation shall block the execution until the variable events are dispatched

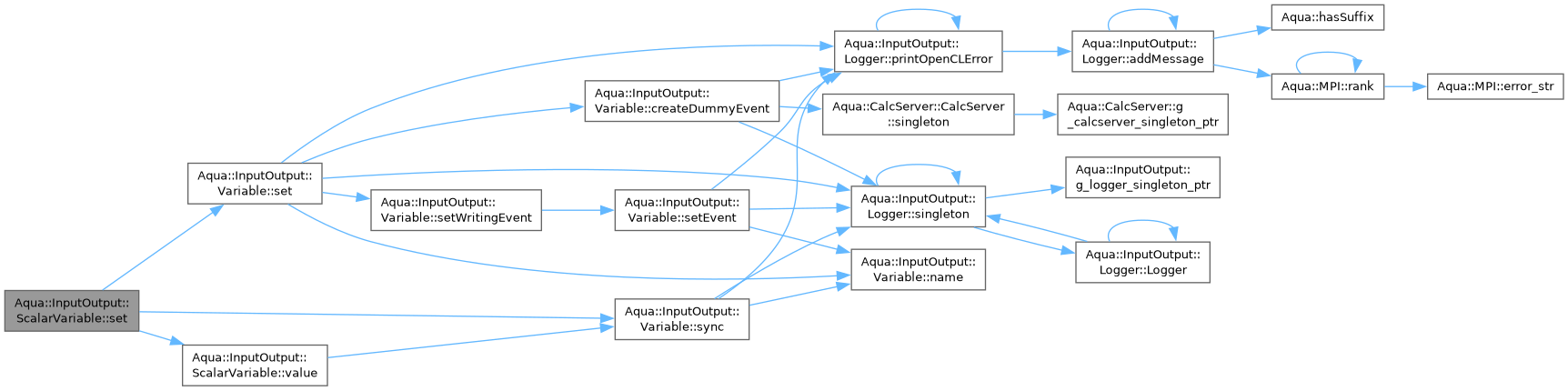

Here is the call graph for this function:

◆ set() [2/2]

template<class T>

void Aqua::InputOutput::ScalarVariable< T >::set	(	void *	ptr,
		bool	synced = true )

inlinevirtual

Set variable from memory.

This is a blocking operation, that will retain the program until the underlying variable event is complete.

Parameters

ptr	Memory to copy
synced	true if the operation shall block the execution until the variable events are dispatched

Reimplemented from Aqua::InputOutput::Variable.

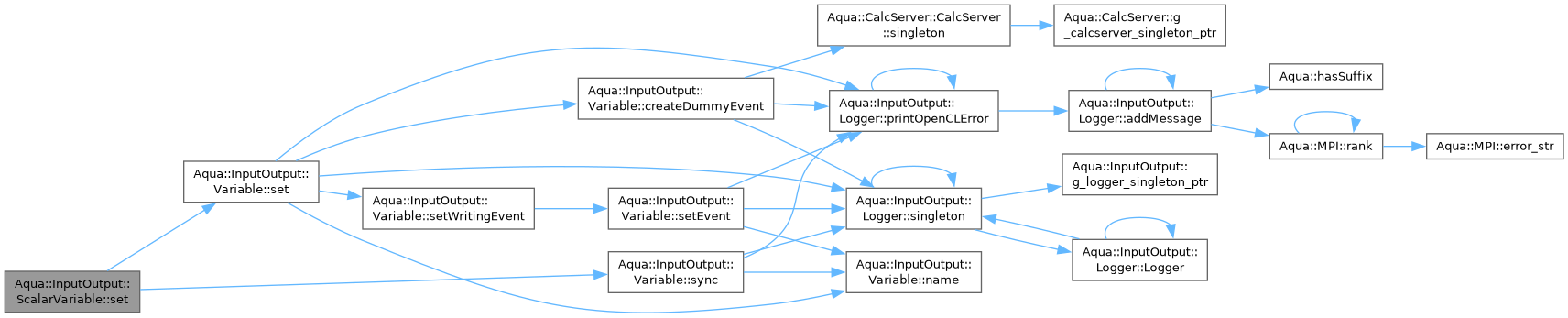

Here is the call graph for this function:

◆ setFromPythonObject()

template<class T>

virtual bool Aqua::InputOutput::ScalarVariable< T >::setFromPythonObject	(	PyObject *	obj,
		int	i0 = 0,
		int	n = 0 )

pure virtual

Set the variable from a Python object.

Parameters

obj	Python object.
i0	ignored parameter.
n	ignored parameter

Returns: false if all gone right, true otherwise.

Implemented in Aqua::InputOutput::DoubleVariable, Aqua::InputOutput::FloatVariable, Aqua::InputOutput::IntVariable, Aqua::InputOutput::LongVariable, Aqua::InputOutput::ScalarVecVariable< T >, Aqua::InputOutput::UIntVariable, and Aqua::InputOutput::ULongVariable.

◆ typesize()

template<class T>

size_t Aqua::InputOutput::ScalarVariable< T >::typesize ( ) const

inlinevirtual

Get the variable type size.

Returns: Variable type size (in bytes)

Reimplemented from Aqua::InputOutput::Variable.

◆ value() [1/2]

template<class T>

T Aqua::InputOutput::ScalarVariable< T >::value ( bool synced = true )

inline

Get the variable value.

Parameters

synced true if the operation shall block the execution until the variable events are dispatched

Returns: Output value

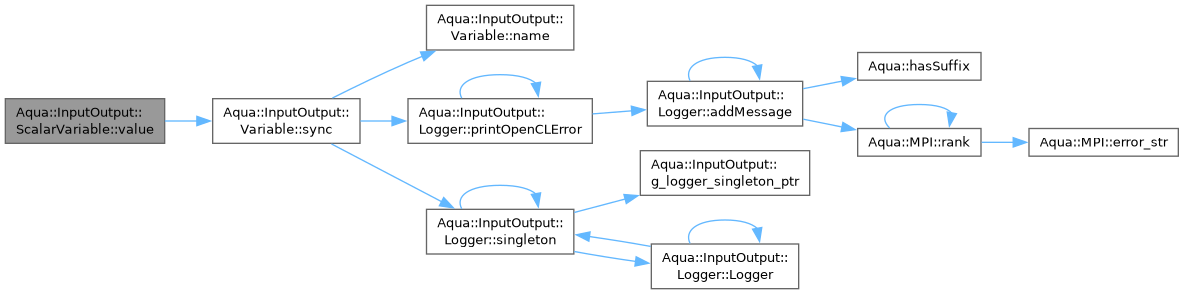

Here is the call graph for this function:

◆ value() [2/2]

template<class T>

void Aqua::InputOutput::ScalarVariable< T >::value	(	T &	value,
		bool	synced = true )

inline

Set the variable value.

Parameters

synced true if the operation shall block the execution until the variable events are dispatched

Returns: Output value

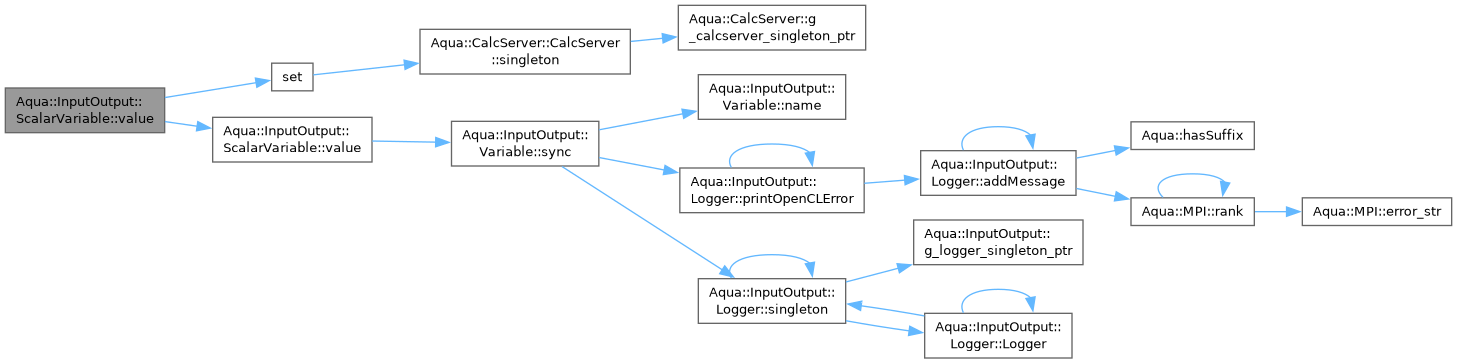

Here is the call graph for this function:

Field Documentation

◆ _value

template<class T>

T Aqua::InputOutput::ScalarVariable< T >::_value

protected

Variable value.

The documentation for this class was generated from the following file:

/home/pepe/SPH/Code/aquagpusph/aquagpusph/Variable.hpp
