A generic variable. Almost useless, use the overloaded classes instead of this one. More...

#include <Variable.hpp>

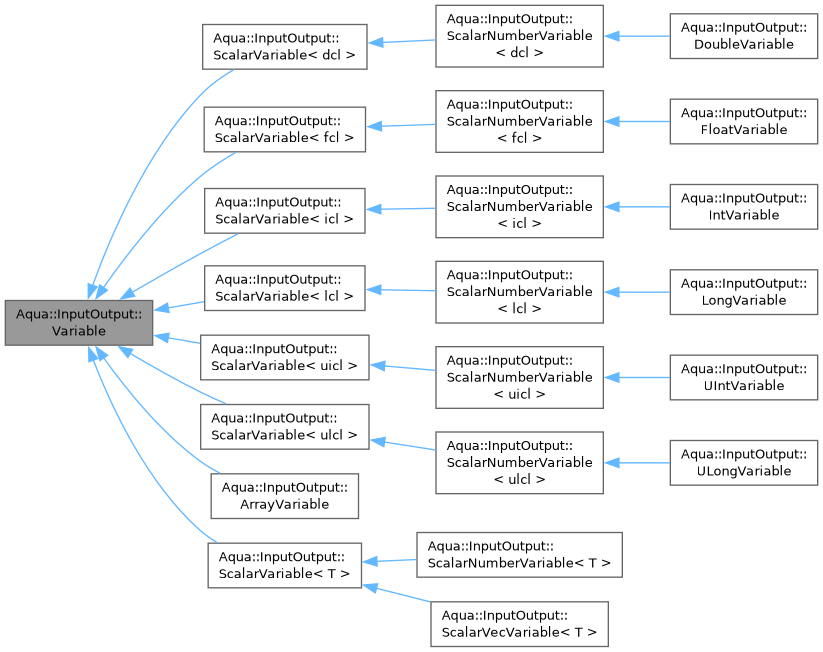

Inheritance diagram for Aqua::InputOutput::Variable:

[legend]

Public Member Functions
	Variable (const std::string varname, const std::string vartype)
	Constructor.
virtual	~Variable ()
	Destructor.
virtual bool	isArray ()=0
	Let efficiently know whether the variable is an array or not.
bool	isScalar ()
	Let efficiently know whether the variable is a scalar or not.
std::string	name () const
	Name of the variable.
virtual std::string	type () const
	Type of the variable.
virtual size_t	typesize () const
	Get the variable type size.
virtual size_t	size () const
	Get the variable type size.
virtual void *	get (bool UNUSED_PARAM synced=true)
	Get variable pointer basis pointer.
void *	get_async ()
	Get variable pointer basis pointer.
virtual void	set (void *ptr, bool synced=true)
	Set variable from memory.
void	set_async (void *ptr)
	Set variable from memory.
virtual PyObject *	getPythonObject (int UNUSED_PARAM i0=0, int UNUSED_PARAM n=0)
	Get a Python interpretation of the variable.
virtual bool	setFromPythonObject (PyObject UNUSED_PARAM *obj, int UNUSED_PARAM i0=0, int UNUSED_PARAM n=0)
	Set the variable from a Python object.
virtual const std::string	asString (bool UNUSED_PARAM synced=true)
	Get the variable text representation.
void	setEvent (cl_event event)
	Set the variable current writing event.
void	setWritingEvent (cl_event event)
	Alias of InputOutput::Variable::setEvent()
cl_event	getEvent () const
	Returns the last writing event associated to this variable.
cl_event	getWritingEvent () const
	Alias of InputOutput::Variable::getEvent()
void	addReadingEvent (cl_event event)
	Add a new reading event to the variable.
std::vector< cl_event >	getReadingEvents () const
	Get the list of reading events.
void	sync (bool readonly=false)
	Wait for variable reading and writing events to be completed.

Protected Member Functions
void	cleanReadingEvents ()
	Clean up the list of reading events.

Static Protected Member Functions
static cl_event	createDummyEvent ()
	Create a competed user event to be set as the writing event when synced writing operations are carried out.

Detailed Description

A generic variable. Almost useless, use the overloaded classes instead of this one.

Constructor & Destructor Documentation

◆ Variable()

Aqua::InputOutput::Variable::Variable	(	const std::string	varname,
		const std::string	vartype )

Constructor.

Parameters

varname	Name of the variable.
vartype	Type of the variable.

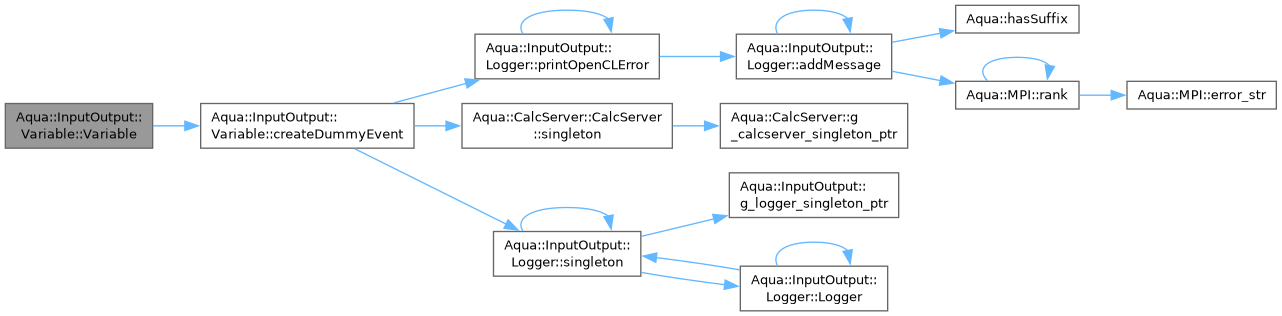

Here is the call graph for this function:

◆ ~Variable()

Aqua::InputOutput::Variable::~Variable ( )

virtual

Destructor.

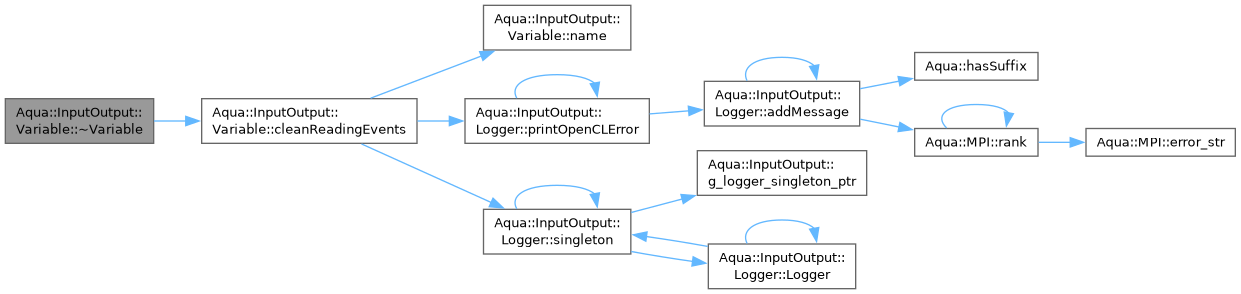

Here is the call graph for this function:

Member Function Documentation

◆ asString()

virtual const std::string Aqua::InputOutput::Variable::asString ( bool UNUSED_PARAM synced = true )

inlinevirtual

Get the variable text representation.

Returns: The variable represented as a string, NULL in case of errors.

◆ createDummyEvent()

cl_event Aqua::InputOutput::Variable::createDummyEvent ( )

staticprotected

Create a competed user event to be set as the writing event when synced writing operations are carried out.

Returns: The completed event

Exceptions

std::runtime_error If the OpenCL event creation fails

Here is the call graph for this function:

◆ get()

virtual void * Aqua::InputOutput::Variable::get ( bool UNUSED_PARAM synced = true )

inlinevirtual

Get variable pointer basis pointer.

Parameters

synced true if the operation shall block the execution until the variable events are dispatched

Returns: Implementation pointer, NULL for this class.

Reimplemented in Aqua::InputOutput::ArrayVariable.

◆ get_async()

void * Aqua::InputOutput::Variable::get_async ( )

inline

Get variable pointer basis pointer.

Sometimes a tool would make events micromanagement, becoming useful to can retrieve the value in an asynchronous way. That is for instance the case of events manipulated in callbacks

Returns: Implementation pointer

Here is the call graph for this function:

◆ getPythonObject()

virtual PyObject * Aqua::InputOutput::Variable::getPythonObject	(	int UNUSED_PARAM	i0 = 0,
		int UNUSED_PARAM	n = 0 )

inlinevirtual

Get a Python interpretation of the variable.

Parameters

i0	First component to be read, just for array variables.
n	Number of component to be read, just for array variables.

Returns: Python object, NULL for this class.

◆ isArray()

virtual bool Aqua::InputOutput::Variable::isArray ( )

pure virtual

Let efficiently know whether the variable is an array or not.

Returns: true if the variable is an array, false if the variable is a scalar

Implemented in Aqua::InputOutput::ArrayVariable, Aqua::InputOutput::ScalarVariable< T >, Aqua::InputOutput::ScalarVariable< dcl >, Aqua::InputOutput::ScalarVariable< fcl >, Aqua::InputOutput::ScalarVariable< icl >, Aqua::InputOutput::ScalarVariable< lcl >, Aqua::InputOutput::ScalarVariable< uicl >, and Aqua::InputOutput::ScalarVariable< ulcl >.

◆ isScalar()

bool Aqua::InputOutput::Variable::isScalar ( )

inline

Let efficiently know whether the variable is a scalar or not.

Returns: true if the variable is a scalar, false if the variable is an array

Here is the call graph for this function:

◆ name()

std::string Aqua::InputOutput::Variable::name ( ) const

inline

Name of the variable.

Returns: The name of the variable

◆ set()

void Aqua::InputOutput::Variable::set	(	void *	ptr,
		bool	synced = true )

virtual

Set variable from memory.

If synced, this method is setting a completed user event as the variable writing event. Remeber to call this at the end of any overloaded function

Parameters

ptr	Unused parameter, it is of use for overloaded functions
synced	true if the operation shall block the execution until the variable events are dispatched

Reimplemented in Aqua::InputOutput::ArrayVariable, Aqua::InputOutput::ScalarVariable< T >, Aqua::InputOutput::ScalarVariable< dcl >, Aqua::InputOutput::ScalarVariable< fcl >, Aqua::InputOutput::ScalarVariable< icl >, Aqua::InputOutput::ScalarVariable< lcl >, Aqua::InputOutput::ScalarVariable< uicl >, and Aqua::InputOutput::ScalarVariable< ulcl >.

Here is the call graph for this function:

◆ set_async()

void Aqua::InputOutput::Variable::set_async ( void * ptr )

inline

Set variable from memory.

Sometimes a tool would make events micromanagement, becoming useful to can retrieve the value in an asynchronous way. That is for instance the case of events manipulated in callbacks

Parameters

ptr	Memory to copy

Here is the call graph for this function:

◆ setFromPythonObject()

virtual bool Aqua::InputOutput::Variable::setFromPythonObject	(	PyObject UNUSED_PARAM *	obj,
		int UNUSED_PARAM	i0 = 0,
		int UNUSED_PARAM	n = 0 )

inlinevirtual

Set the variable from a Python object.

Parameters

obj	Python object.
i0	First component to be set, just for array variables.
n	Number of component to be set, just for array variables.

Returns: true, i.e. an error.

◆ size()

virtual size_t Aqua::InputOutput::Variable::size ( ) const

inlinevirtual

Get the variable type size.

Returns: Variable type size (in bytes)

Reimplemented in Aqua::InputOutput::ArrayVariable.

Here is the call graph for this function:

◆ type()

virtual std::string Aqua::InputOutput::Variable::type ( ) const

inlinevirtual

Type of the variable.

Returns: The type of the variable

◆ typesize()

virtual size_t Aqua::InputOutput::Variable::typesize ( ) const

inlinevirtual

Get the variable type size.

Returns: Variable type size (in bytes)

Reimplemented in Aqua::InputOutput::ArrayVariable, Aqua::InputOutput::ScalarVariable< T >, Aqua::InputOutput::ScalarVariable< dcl >, Aqua::InputOutput::ScalarVariable< fcl >, Aqua::InputOutput::ScalarVariable< icl >, Aqua::InputOutput::ScalarVariable< lcl >, Aqua::InputOutput::ScalarVariable< uicl >, and Aqua::InputOutput::ScalarVariable< ulcl >.

The documentation for this class was generated from the following files:

/home/pepe/SPH/Code/aquagpusph/aquagpusph/Variable.hpp
/home/pepe/SPH/Code/aquagpusph/aquagpusph/Variable.cpp
