Aqua::InputOutput::ArrayVariable Class Reference

An array variable. More...

#include <Variable.hpp>

Inheritance diagram for Aqua::InputOutput::ArrayVariable:

Collaboration diagram for Aqua::InputOutput::ArrayVariable:

Public Member Functions
	ArrayVariable (const std::string varname, const std::string vartype)
	~ArrayVariable ()
bool	isArray ()
	Report that the varaible is an array.
size_t	typesize () const
size_t	size () const
void *	get (bool UNUSED_PARAM synced=false)
void	set (void *ptr, bool synced=false)
bool	reallocatable () const
	Get if a variable is reallocatable.
void	reallocatable (bool is)
	Set if a variable is reallocatable.
PyObject *	getPythonObject (int i0=0, int n=0)
bool	setFromPythonObject (PyObject *obj, int i0=0, int n=0)
const std::string	asString (bool synced=true)
const std::string	asString (size_t i, bool synced=true)
Public Member Functions inherited from Aqua::InputOutput::Variable
	Variable (const std::string varname, const std::string vartype)
	Constructor.
virtual	~Variable ()
	Destructor.
bool	isScalar ()
	Let efficiently know whether the variable is a scalar or not.
std::string	name () const
	Name of the variable.
virtual std::string	type () const
	Type of the variable.
void *	get_async ()
	Get variable pointer basis pointer.
void	set_async (void *ptr)
	Set variable from memory.
virtual PyObject *	getPythonObject (int UNUSED_PARAM i0=0, int UNUSED_PARAM n=0)
	Get a Python interpretation of the variable.
virtual bool	setFromPythonObject (PyObject UNUSED_PARAM *obj, int UNUSED_PARAM i0=0, int UNUSED_PARAM n=0)
	Set the variable from a Python object.
virtual const std::string	asString (bool UNUSED_PARAM synced=true)
	Get the variable text representation.
void	setEvent (cl_event event)
	Set the variable current writing event.
void	setWritingEvent (cl_event event)
	Alias of InputOutput::Variable::setEvent()
cl_event	getEvent () const
	Returns the last writing event associated to this variable.
cl_event	getWritingEvent () const
	Alias of InputOutput::Variable::getEvent()
void	addReadingEvent (cl_event event)
	Add a new reading event to the variable.
std::vector< cl_event >	getReadingEvents () const
	Get the list of reading events.
void	sync (bool readonly=false)
	Wait for variable reading and writing events to be completed.

Additional Inherited Members
Protected Member Functions inherited from Aqua::InputOutput::Variable
void	cleanReadingEvents ()
	Clean up the list of reading events.
Static Protected Member Functions inherited from Aqua::InputOutput::Variable
static cl_event	createDummyEvent ()
	Create a competed user event to be set as the writing event when synced writing operations are carried out.

Detailed Description

An array variable.

Constructor & Destructor Documentation

ArrayVariable()

Aqua::InputOutput::ArrayVariable::ArrayVariable	(	const std::string	varname,
		const std::string	vartype )

Constructor.

Parameters

varname	Name of the variable.
vartype	Type of the variable.

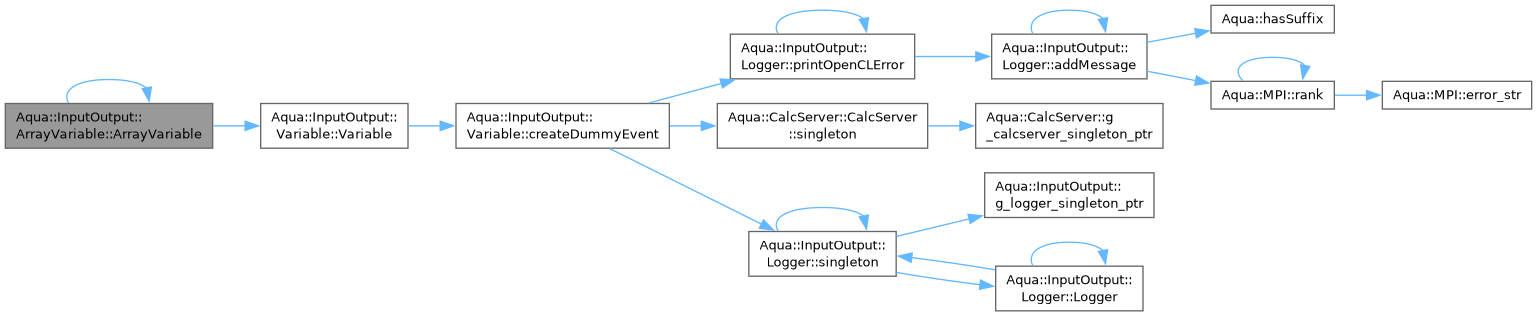

Here is the call graph for this function:

~ArrayVariable()

Aqua::InputOutput::ArrayVariable::~ArrayVariable

(

)

Destructor.

Member Function Documentation

asString() [1/2]

const std::string Aqua::InputOutput::ArrayVariable::asString

(

bool

synced = true

)

Get the variable text representation

Parameters

synced

true if the function shall block until the last writing event is dispatched, false otherwise

Returns

The variable represented as a string, NULL in case of errors.

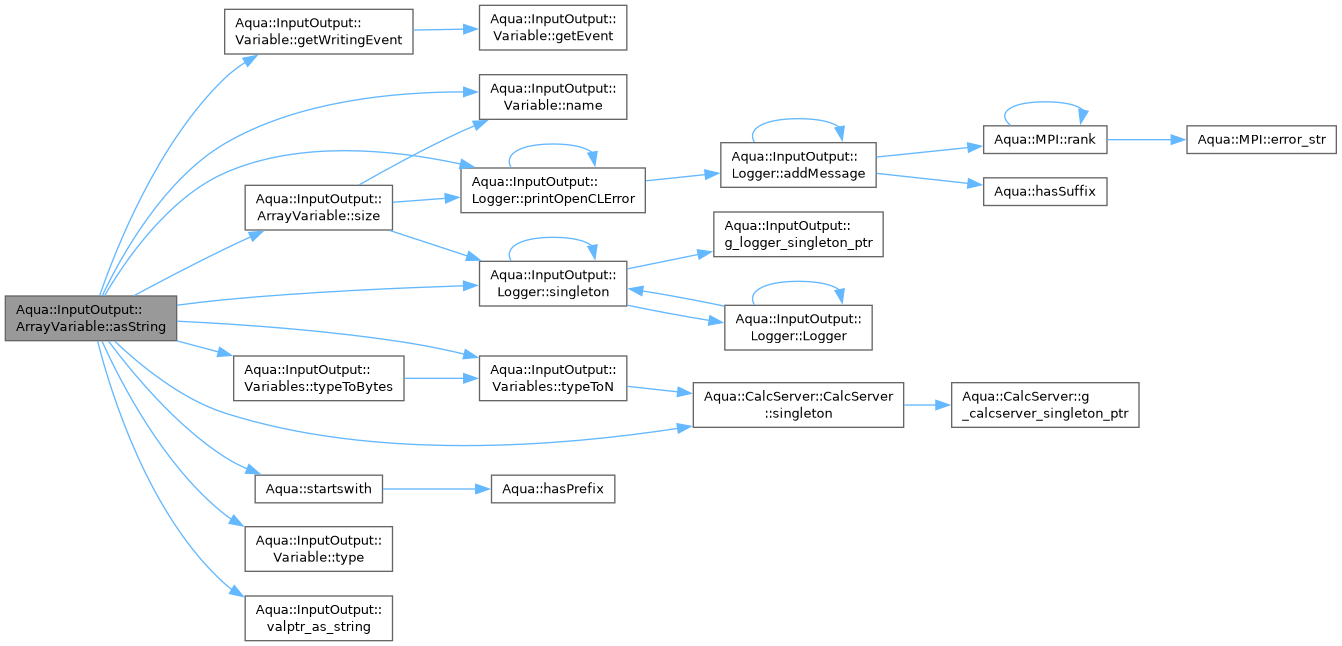

Here is the call graph for this function:

asString() [2/2]

const std::string Aqua::InputOutput::ArrayVariable::asString	(	size_t	i,
		bool	synced = true )

Get a component text representation

Parameters

i	Index of the component to be extracted.
synced	true if the function shall block until the last writing event is dispatched, false otherwise

Returns

The component represented as a string, NULL in case of errors.

Here is the call graph for this function:

get()

void * Aqua::InputOutput::ArrayVariable::get ( bool UNUSED_PARAM synced = false )

inlinevirtual

Get variable pointer basis pointer

Parameters

synced

Unused parameter

Returns

Implementation pointer.

Reimplemented from Aqua::InputOutput::Variable.

getPythonObject()

PyObject * Aqua::InputOutput::ArrayVariable::getPythonObject	(	int	i0 = 0,
		int	n = 0 )

Get a PyArrayObject interpretation of the variable

Parameters

i0	First component to be read.
n	Number of component to be read, 0 to read all available memory, i.e. All the array after i0.

Returns

PyArrayObject Python object. NULL if the memory cannot be read.

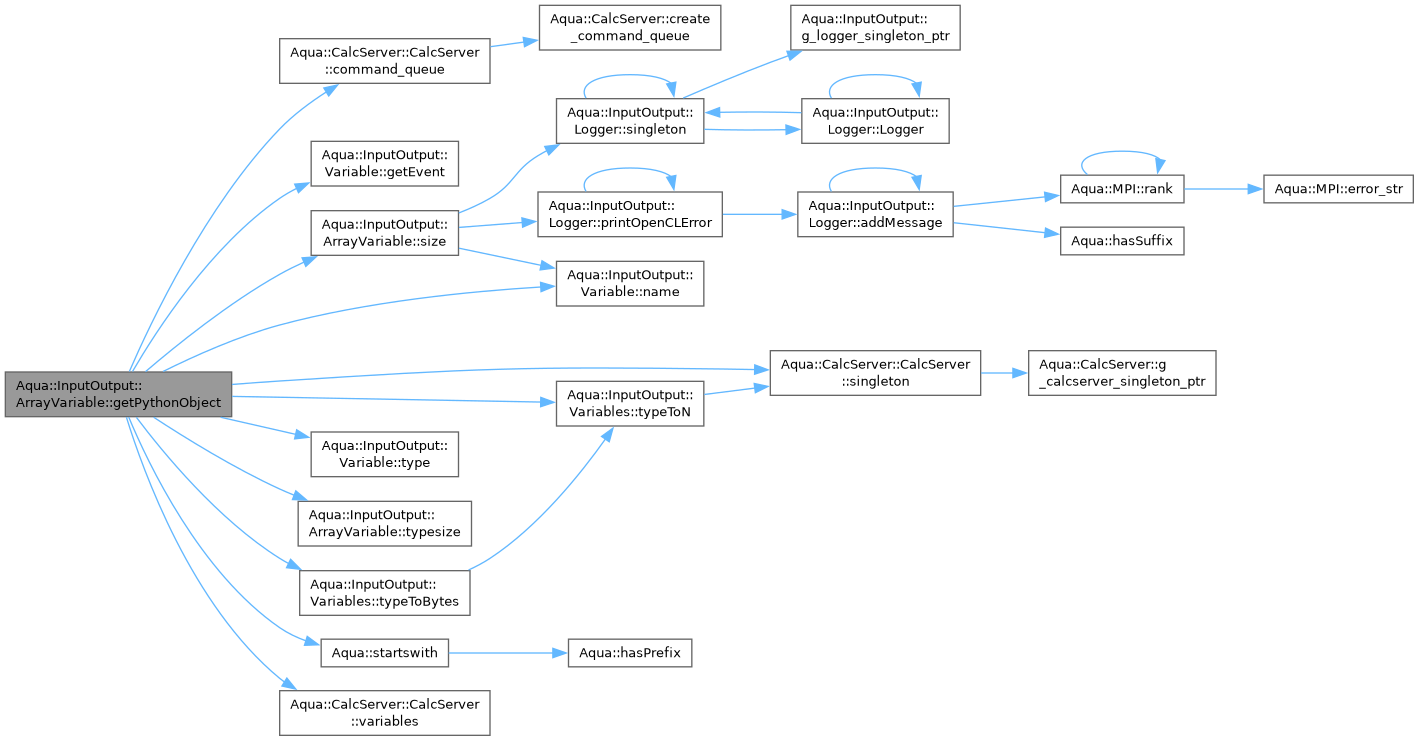

Here is the call graph for this function:

isArray()

bool Aqua::InputOutput::ArrayVariable::isArray ( )

inlinevirtual

Report that the varaible is an array.

Returns

true

Implements Aqua::InputOutput::Variable.

reallocatable() [1/2]

bool Aqua::InputOutput::ArrayVariable::reallocatable ( ) const

inline

Get if a variable is reallocatable.

Returns

true if the variable is marked as reallocatable, false otherwise

reallocatable() [2/2]

void Aqua::InputOutput::ArrayVariable::reallocatable ( bool is )

inline

Set if a variable is reallocatable.

Parameters

is	true if the variable is reallocatable, false otherwise

Note

Non-reallocatable variables are in general way more efficient

set()

void Aqua::InputOutput::ArrayVariable::set ( void * ptr, bool synced = false )

virtual

Set variable from memory

Parameters

ptr	Memory to copy.
synced	Unused parameter

Exceptions

std::runtime_error

if the variable is not reallocatable and it has been already set

Reimplemented from Aqua::InputOutput::Variable.

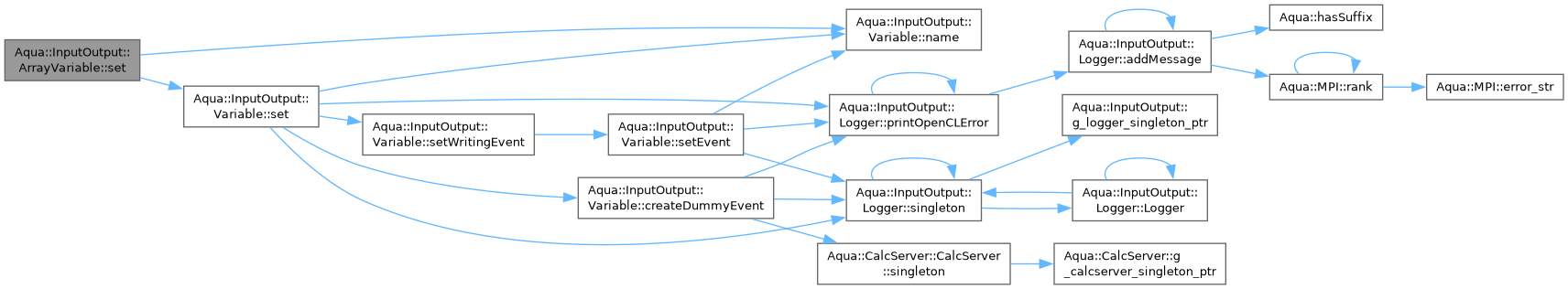

Here is the call graph for this function:

setFromPythonObject()

bool Aqua::InputOutput::ArrayVariable::setFromPythonObject	(	PyObject *	obj,
		int	i0 = 0,
		int	n = 0 )

Set the variable from a Python object

Parameters

obj	PyArrayObject object.
i0	ignored parameter.
n	ignored parameter

Returns

false if all gone right, true otherwise.

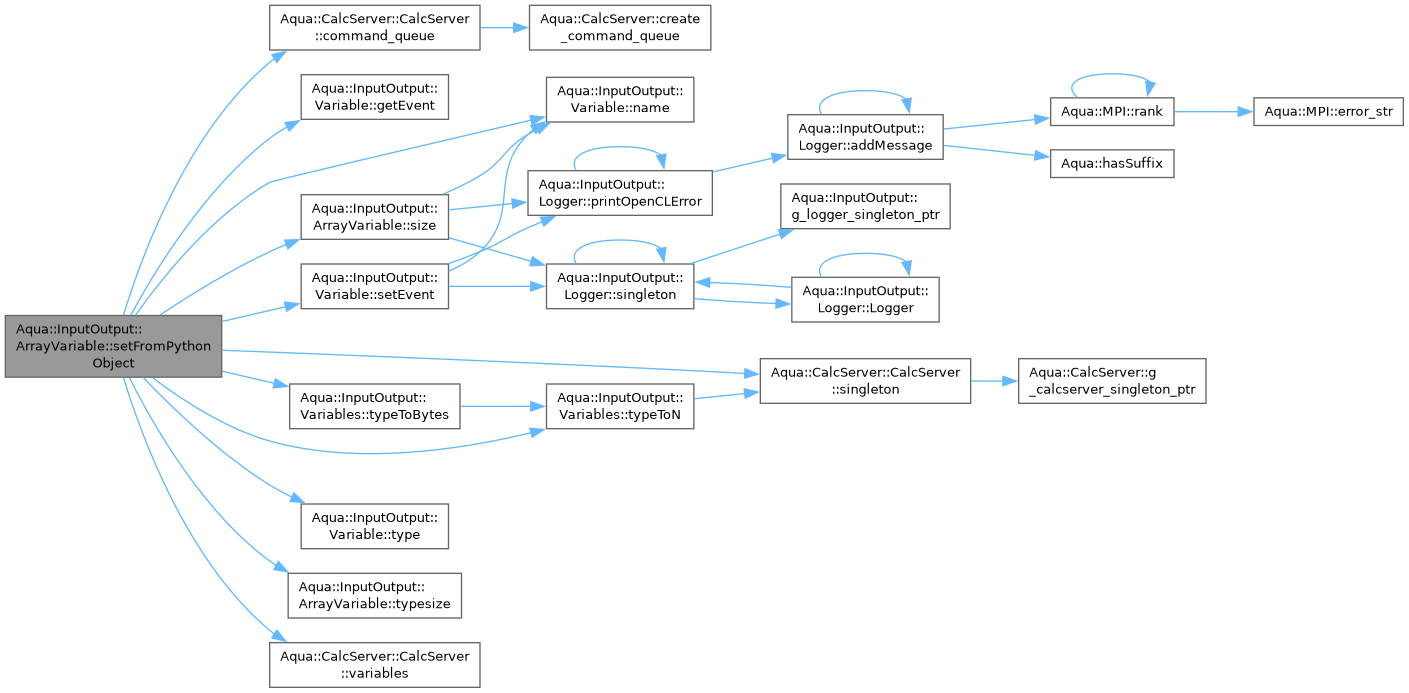

Here is the call graph for this function:

size()

size_t Aqua::InputOutput::ArrayVariable::size ( ) const

virtual

Get the array size.

Returns

Array allocated memory (in bytes)

Note

In order to get the length of the array the command size() / Variables::typeToBytes(type()) can be used

Reimplemented from Aqua::InputOutput::Variable.

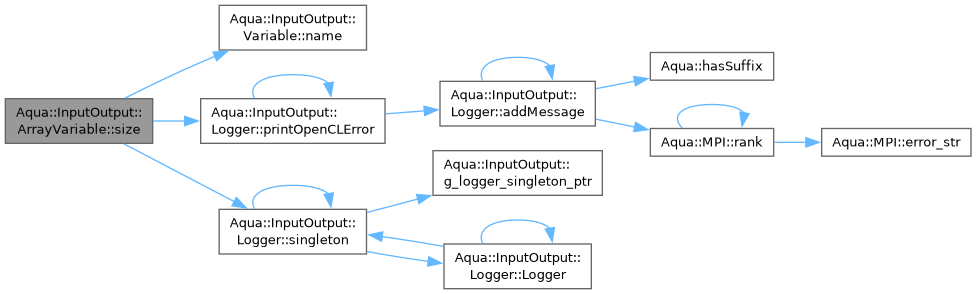

Here is the call graph for this function:

typesize()

size_t Aqua::InputOutput::ArrayVariable::typesize ( ) const

inlinevirtual

Get the cl_mem type size.

Returns

cl_mem type size (in bytes)

Note

In order to know the typesize of the components into the array you may use Variables::typeToBytes()

Reimplemented from Aqua::InputOutput::Variable.

---

The documentation for this class was generated from the following files:

• /home/pepe/SPH/Code/aquagpusph/aquagpusph/Variable.hpp
• /home/pepe/SPH/Code/aquagpusph/aquagpusph/Variable.cpp
