Particles file loader/saver base class. More...

#include <Particles.hpp>

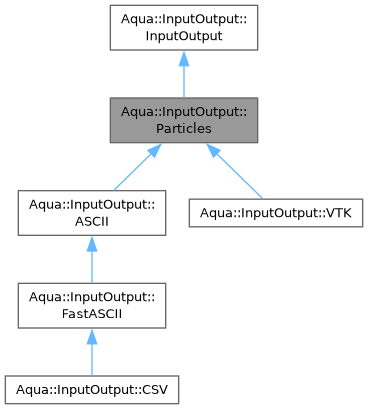

Inheritance diagram for Aqua::InputOutput::Particles:

[legend]

Collaboration diagram for Aqua::InputOutput::Particles:

Public Member Functions
	Particles (ProblemSetup &sim_data, unsigned int iset, size_t offset, size_t n=0)
	Constructor.
virtual	~Particles ()
	Destructor.
const std::string &	file () const
	Get the last printed file path.
size_t	n () const
	Get the number of particles managed by this instance.
cl_event	getUserEvent () const
	Get the user event to be waited for before the file saving is finished.
virtual void	waitForSavers ()
	Wait for the eventual parallel saving threads.
virtual void	save (float t)
	Save the data.
virtual void	print_file ()
	Print the data to a file.
Public Member Functions inherited from Aqua::InputOutput::InputOutput
virtual void	load ()=0
	Load the data.

Protected Member Functions
const ProblemSetup &	simData () const
	Get the simulation data structure.
void	n (const size_t &n)
	Set the number of particles managed by this instance.
const ulvec2	bounds () const
	Get the particle index bounds of the "set of particles" managed by this class.
unsigned int	setId () const
	Get the "particles set" index associated with this class.
void	loadDefault ()
	Register some default arrays:
void	file (const std::string filename)
	Set the file name.
unsigned int	file (const std::string basename, unsigned int start_index, unsigned int digits=5)
float	time () const
	Get the current simulation time to be written.
cl_event	download (std::vector< std::string > fields)
	Download the data from the device and store it.
std::map< std::string, void * >	data () const
	Get the stored memory objects where the device data has been downloaded.
Protected Member Functions inherited from Aqua::InputOutput::InputOutput
	InputOutput ()
	Constructor.
virtual	~InputOutput ()
	Destructor.

Detailed Description

Particles file loader/saver base class.

In AQUAgpusph the input/output managers are divided in 3 different types:

The simulation configuration files manager
The report file managers
The particles output file managers

The particles files have 2 main objectives:

Particles data loading at the start of simulations.
Visualization of the simulation results.

See also: Aqua::InputOutput::InputOutput; Aqua::InputOutput::Report; Aqua::InputOutput::State

Constructor & Destructor Documentation

◆ Particles()

Aqua::InputOutput::Particles::Particles	(	ProblemSetup &	sim_data,
		unsigned int	iset,
		size_t	offset,
		size_t	n = 0 )

Constructor.

Parameters

sim_data	Simulation data
offset	First particle managed by this saver/loader
iset	Particles set index
n	Number of particles managed by this saver/loader. If 0, the number of particles will be obtained from the input file (thus only valid for loaders)

Here is the call graph for this function:

◆ ~Particles()

Aqua::InputOutput::Particles::~Particles ( )

virtual

Destructor.

Member Function Documentation

◆ bounds()

const ulvec2 Aqua::InputOutput::Particles::bounds ( ) const

inlineprotected

Get the particle index bounds of the "set of particles" managed by this class.

Returns: The index bounds (first and last particle).

◆ data()

std::map< std::string, void * > Aqua::InputOutput::Particles::data ( ) const

inlineprotected

Get the stored memory objects where the device data has been downloaded.

Returns: The memory objects

See also: download()

◆ download()

cl_event Aqua::InputOutput::Particles::download ( std::vector< std::string > fields )

protected

Download the data from the device and store it.

Parameters

fields Fields to download

Returns: The event that will be marked as completed when the data is already available

See also: data()

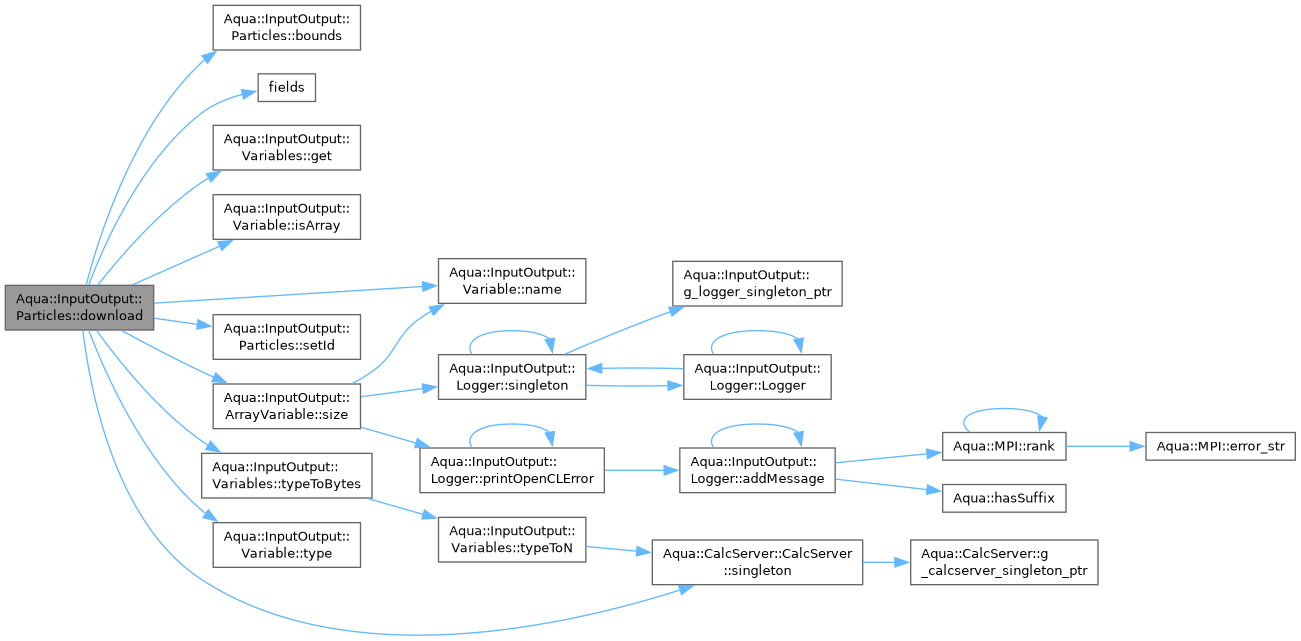

Here is the call graph for this function:

◆ file() [1/3]

const std::string & Aqua::InputOutput::Particles::file ( ) const

inline

Get the last printed file path.

Returns: The last printed file, NULL if a file has not been printed yet.

◆ file() [2/3]

unsigned int Aqua::InputOutput::Particles::file	(	const std::string	basename,
		unsigned int	start_index,
		unsigned int	digits = 5 )

protected

Look for the first non-existing file path

Parameters

basename	The base name of the file
start_index	First index that will be checked.
digits	Number of digits of the replaced integer number. If the number of digits of the integer value are greater than this value this parameter will be ignored, otherwise zeroes will be appended at the left of the decimal representation of the integer.

Returns: The next non-existing file index.

See also: Aqua::newFilePath()

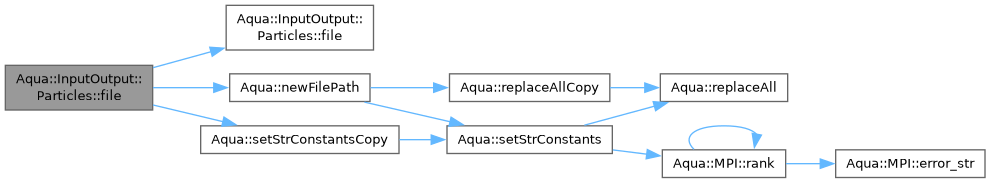

Here is the call graph for this function:

◆ file() [3/3]

void Aqua::InputOutput::Particles::file ( const std::string filename )

inlineprotected

Set the file name.

Parameters

filename The new file to save/load. Optionally a null parameter can be passed in order to clear the stored file name.

◆ getUserEvent()

cl_event Aqua::InputOutput::Particles::getUserEvent ( ) const

inline

Get the user event to be waited for before the file saving is finished.

Returns: The event

Note: In general waitForSavers() shall be used instead of this function, which is provided just to work with the OpenCL callbacks

◆ loadDefault()

void Aqua::InputOutput::Particles::loadDefault ( )

protected

Register some default arrays:

iset
1. id_sorted
2. id_unsorted

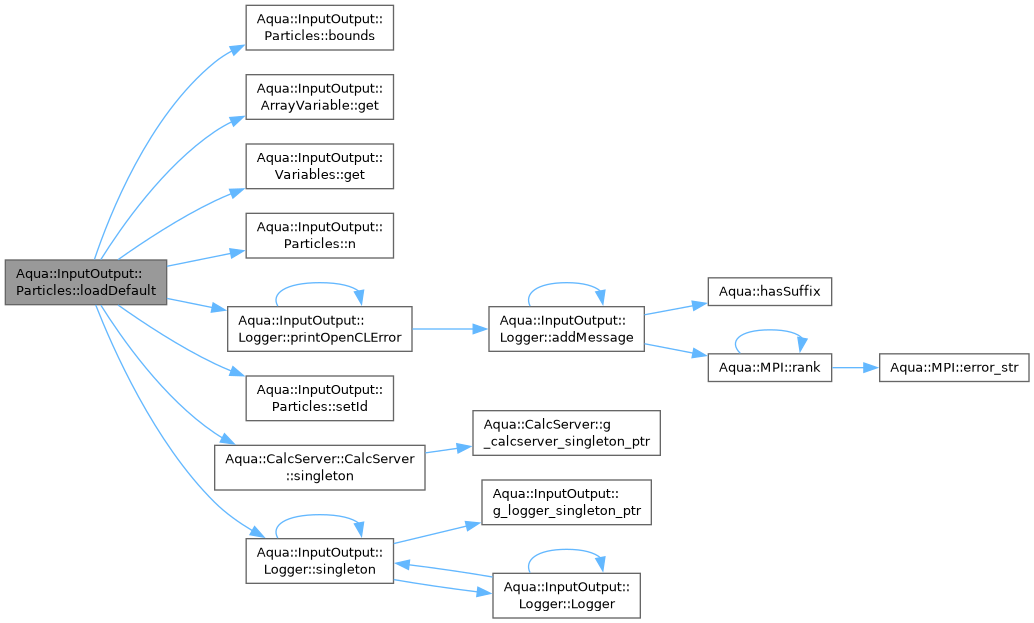

Here is the call graph for this function:

◆ n() [1/2]

size_t Aqua::InputOutput::Particles::n ( ) const

inline

Get the number of particles managed by this instance.

Returns: Number of particles

◆ n() [2/2]

void Aqua::InputOutput::Particles::n ( const size_t & n )

inlineprotected

Set the number of particles managed by this instance.

Returns: Number of particles

Here is the call graph for this function:

◆ print_file()

virtual void Aqua::InputOutput::Particles::print_file ( )

inlinevirtual

Print the data to a file.

This function shall be overloaded by the inherited classes. Remember to call this function anyway to set the user event as completed

Note: This method is public to work with the OpenCL callbacks, but it is not meant to be called by the users

Reimplemented in Aqua::InputOutput::ASCII, Aqua::InputOutput::CSV, and Aqua::InputOutput::VTK.

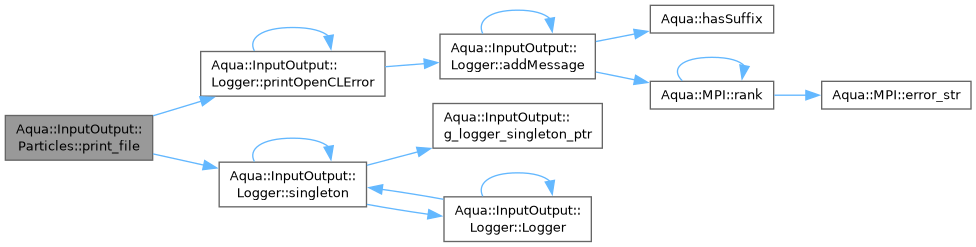

Here is the call graph for this function:

◆ save()

void Aqua::InputOutput::Particles::save ( float t )

virtual

Save the data.

Parameters

t	Simulation time

Implements Aqua::InputOutput::InputOutput.

Reimplemented in Aqua::InputOutput::VTK.

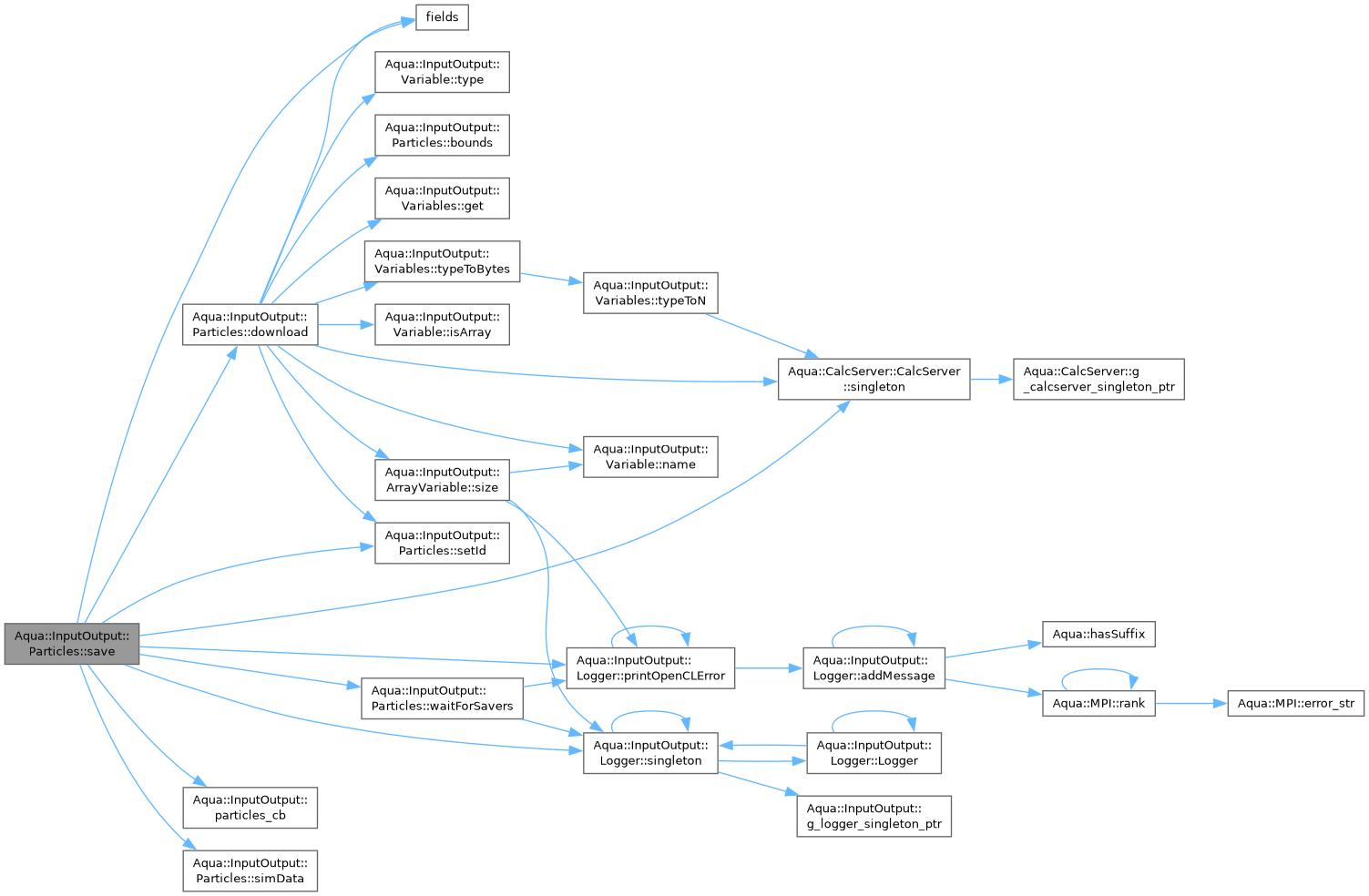

Here is the call graph for this function:

◆ setId()

unsigned int Aqua::InputOutput::Particles::setId ( ) const

inlineprotected

Get the "particles set" index associated with this class.

Returns: The "particles index" index.

◆ simData()

const ProblemSetup & Aqua::InputOutput::Particles::simData ( ) const

inlineprotected

Get the simulation data structure.

Returns: Simulation data

◆ time()

float Aqua::InputOutput::Particles::time ( ) const

inlineprotected

Get the current simulation time to be written.

Returns: The simulation time

◆ waitForSavers()

virtual void Aqua::InputOutput::Particles::waitForSavers ( )

inlinevirtual

Wait for the eventual parallel saving threads.

Some savers may optionally launch parallel threads to save the data, in an asynchronous way, in order to improve the performance. In such a case, AQUAgpusph shall wait them to finish before proceeding to destroy the data

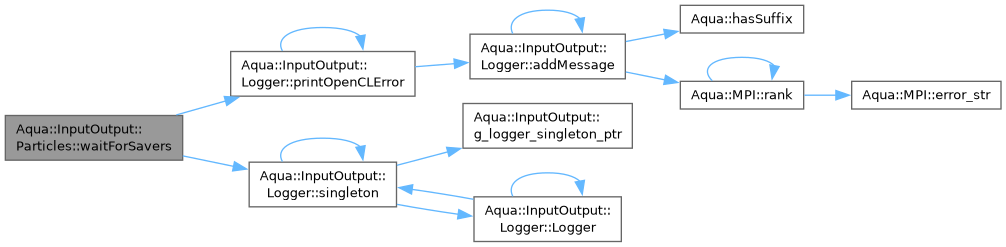

Here is the call graph for this function:

The documentation for this class was generated from the following files:

/home/pepe/SPH/Code/aquagpusph/aquagpusph/InputOutput/Particles.hpp
/home/pepe/SPH/Code/aquagpusph/aquagpusph/InputOutput/Particles.cpp
