Aqua::InputOutput::ASCII Class Reference

Plain text particles data files loader/saver. More...

#include <ASCII.hpp>

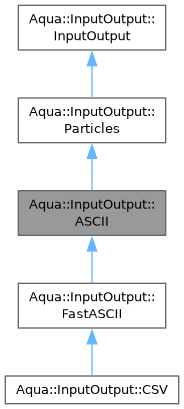

Inheritance diagram for Aqua::InputOutput::ASCII:

Collaboration diagram for Aqua::InputOutput::ASCII:

Public Member Functions
	ASCII (ProblemSetup &sim_data, unsigned int iset, size_t offset, size_t n=0, const std::string file_ext=".dat")
	Constructor.
virtual	~ASCII ()
	Destructor.
virtual void	load ()
	Load the data.
virtual void	print_file ()
	Print the data to a file.
Public Member Functions inherited from Aqua::InputOutput::Particles
	Particles (ProblemSetup &sim_data, unsigned int iset, size_t offset, size_t n=0)
	Constructor.
virtual	~Particles ()
	Destructor.
const std::string &	file () const
	Get the last printed file path.
size_t	n () const
	Get the number of particles managed by this instance.
cl_event	getUserEvent () const
	Get the user event to be waited for before the file saving is finished.
virtual void	waitForSavers ()
	Wait for the eventual parallel saving threads.
virtual void	save (float t)
	Save the data.

Protected Member Functions
virtual void	print_header (std::ofstream &f) const
	Write the file header.
virtual void	formatLine (std::string &l)
	Conveniently format a read line.
virtual std::string	readField (const std::string field, const std::string line, size_t index, void *data)
	Extract the field value from a line.
virtual size_t	readNParticles (std::ifstream &f)
	Count the number of particles present in the input file.
void	print_file (const char sep, const char comp_sep)
	Print the data to a file.
Protected Member Functions inherited from Aqua::InputOutput::Particles
const ProblemSetup &	simData () const
	Get the simulation data structure.
void	n (const size_t &n)
	Set the number of particles managed by this instance.
const ulvec2	bounds () const
	Get the particle index bounds of the "set of particles" managed by this class.
unsigned int	setId () const
	Get the "particles set" index associated with this class.
void	loadDefault ()
	Register some default arrays:
void	file (const std::string filename)
	Set the file name.
unsigned int	file (const std::string basename, unsigned int start_index, unsigned int digits=5)
float	time () const
	Get the current simulation time to be written.
cl_event	download (std::vector< std::string > fields)
	Download the data from the device and store it.
std::map< std::string, void * >	data () const
	Get the stored memory objects where the device data has been downloaded.
Protected Member Functions inherited from Aqua::InputOutput::InputOutput
	InputOutput ()
	Constructor.
virtual	~InputOutput ()
	Destructor.

Detailed Description

Plain text particles data files loader/saver.

These files are formatted as ASCCI plain text where the particles data are stored by rows, and where the fields are separated by columns. This class accepts math expressions to be evaluated during the file parsing.

Note

Comments are allowed using the symbol "#", such that all the text after this symbol, and in the same line, will be discarded. The fields can be separated by the following symbols:

• " "
• ","
• ";"
• "("
• ")"
• "["
• "]"
• "{"
• "}"
• tabulator

Warning

Saving the particles data in plain text format may be heavily hard disk demanding, and therefore it is strongly recommended to consider binary formats like Aqua::InputOutput::VTK.

Constructor & Destructor Documentation

ASCII()

Aqua::InputOutput::ASCII::ASCII	(	ProblemSetup &	sim_data,
		unsigned int	iset,
		size_t	offset,
		size_t	n = 0,
		const std::string	file_ext = ".dat" )

Constructor.

Parameters

sim_data	Simulation data
iset	Particles set index.
offset	First particle managed by this saver/loader.
n	Number of particles managed by this saver/loader. If 0, the number of particles will be obtained from the input file (thus only valid for loaders)
file_ext	Extension for the output files

Here is the call graph for this function:

~ASCII()

Aqua::InputOutput::ASCII::~ASCII ( )

virtual

Destructor.

Member Function Documentation

formatLine()

void Aqua::InputOutput::ASCII::formatLine ( std::string & l )

protectedvirtual

Conveniently format a read line.

Parameters

l	Line text.

Reimplemented in Aqua::InputOutput::CSV.

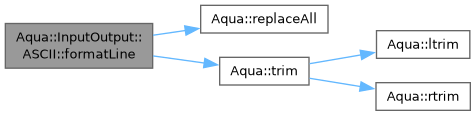

Here is the call graph for this function:

load()

void Aqua::InputOutput::ASCII::load ( )

virtual

Load the data.

Implements Aqua::InputOutput::InputOutput.

Reimplemented in Aqua::InputOutput::CSV.

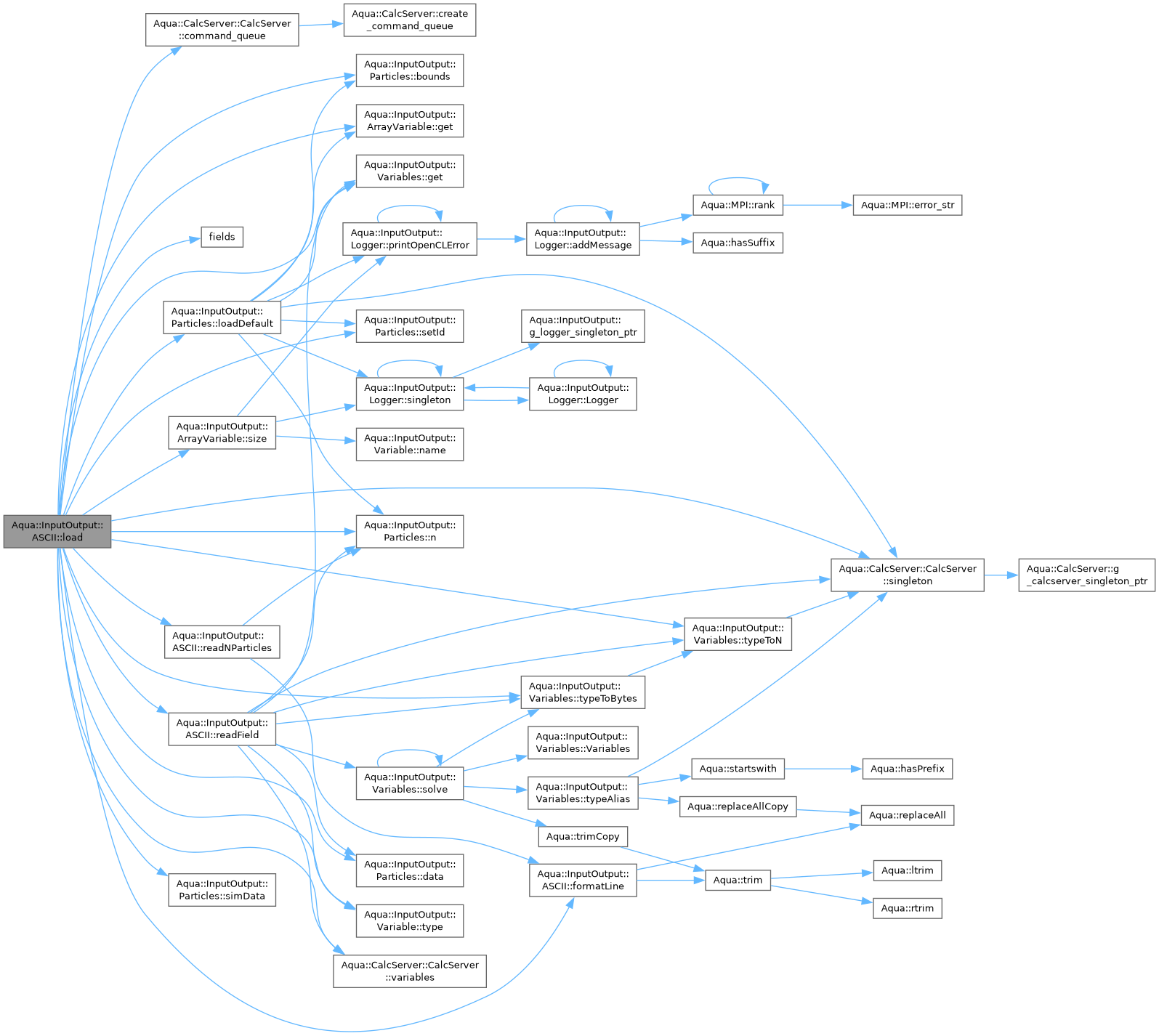

Here is the call graph for this function:

print_file() [1/2]

virtual void Aqua::InputOutput::ASCII::print_file ( )

inlinevirtual

Print the data to a file.

This function shall be overloaded by the inherited classes. Remember to call this function anyway to set the user event as completed

Note

This method is public to work with the OpenCL callbacks, but it is not meant to be called by the users

Reimplemented from Aqua::InputOutput::Particles.

Reimplemented in Aqua::InputOutput::CSV.

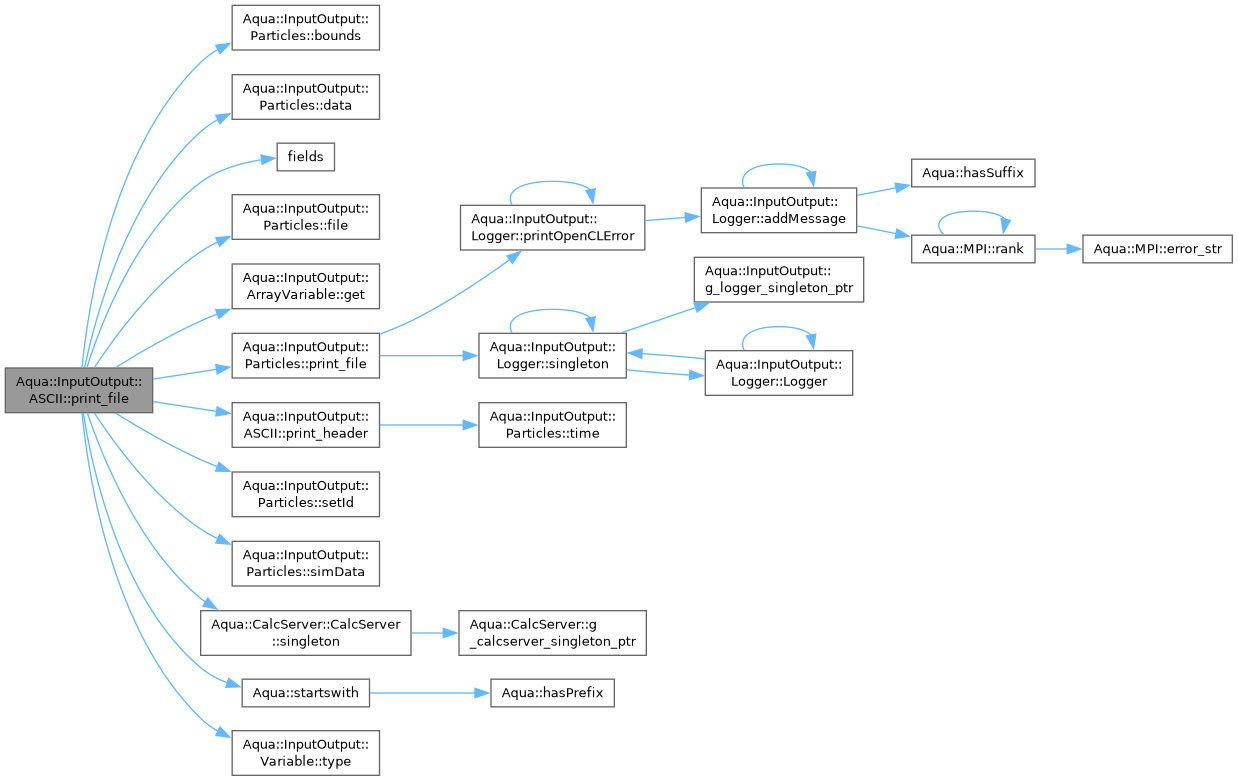

Here is the call graph for this function:

print_file() [2/2]

void Aqua::InputOutput::ASCII::print_file ( const char sep, const char comp_sep )

protected

Print the data to a file.

Parameters

sep	Fields separator
comp_sep	Components separator (for vectorial types)

Note

This method is public to work with the OpenCL callbacks, but it is not meant to be called by the users

Here is the call graph for this function:

print_header()

void Aqua::InputOutput::ASCII::print_header ( std::ofstream & f ) const

protectedvirtual

Write the file header.

Parameters

f	The file handler

Reimplemented in Aqua::InputOutput::CSV.

Here is the call graph for this function:

readField()

std::string Aqua::InputOutput::ASCII::readField ( const std::string field, const std::string line, size_t index, void * data )

protectedvirtual

Extract the field value from a line.

Parameters

field	Field name.
line	Text line,
index	Index of the particle to read.
data	Data array.

Returns

Remaining text after extracting the field values.

Reimplemented in Aqua::InputOutput::FastASCII.

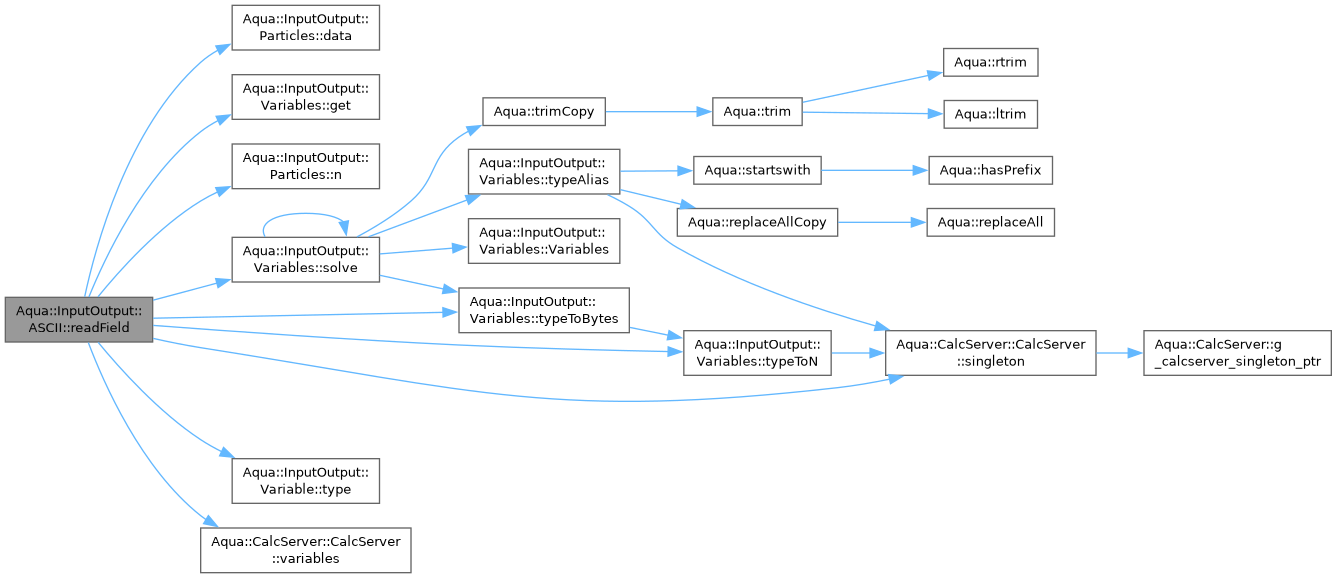

Here is the call graph for this function:

readNParticles()

size_t Aqua::InputOutput::ASCII::readNParticles ( std::ifstream & f )

protectedvirtual

Count the number of particles present in the input file.

Parameters

f	File to be read.

Returns

The number of particles found in the file.

Reimplemented in Aqua::InputOutput::CSV.

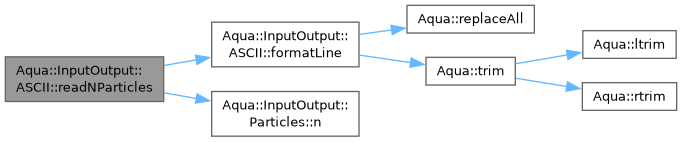

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• /home/pepe/SPH/Code/aquagpusph/aquagpusph/InputOutput/ASCII.hpp
• /home/pepe/SPH/Code/aquagpusph/aquagpusph/InputOutput/ASCII.cpp
