Plain text particles data files loader/saver. More...

#include <FastASCII.hpp>

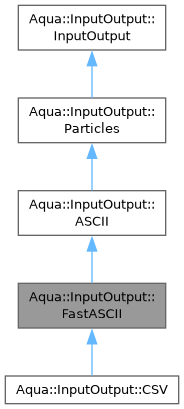

Inheritance diagram for Aqua::InputOutput::FastASCII:

[legend]

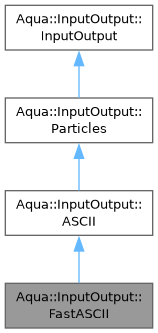

Collaboration diagram for Aqua::InputOutput::FastASCII:

[legend]

Public Member Functions
	FastASCII (ProblemSetup &sim_data, unsigned int iset, size_t offset, size_t n=0, const std::string file_ext=".dat")
	Constructor.
	~FastASCII ()
	Destructor.
Public Member Functions inherited from Aqua::InputOutput::ASCII
	ASCII (ProblemSetup &sim_data, unsigned int iset, size_t offset, size_t n=0, const std::string file_ext=".dat")
	Constructor.
virtual	~ASCII ()
	Destructor.
virtual void	load ()
	Load the data.
virtual void	print_file ()
	Print the data to a file.
Public Member Functions inherited from Aqua::InputOutput::Particles
	Particles (ProblemSetup &sim_data, unsigned int iset, size_t offset, size_t n=0)
	Constructor.
virtual	~Particles ()
	Destructor.
const std::string &	file () const
	Get the last printed file path.
size_t	n () const
	Get the number of particles managed by this instance.
cl_event	getUserEvent () const
	Get the user event to be waited for before the file saving is finished.
virtual void	waitForSavers ()
	Wait for the eventual parallel saving threads.
virtual void	save (float t)
	Save the data.

Protected Member Functions
std::string	readField (const std::string field, const std::string line, size_t index, void *data)
	Extract the field value from a line.
Protected Member Functions inherited from Aqua::InputOutput::ASCII
virtual void	print_header (std::ofstream &f) const
	Write the file header.
virtual void	formatLine (std::string &l)
	Conveniently format a read line.
virtual size_t	readNParticles (std::ifstream &f)
	Count the number of particles present in the input file.
void	print_file (const char sep, const char comp_sep)
	Print the data to a file.
Protected Member Functions inherited from Aqua::InputOutput::Particles
const ProblemSetup &	simData () const
	Get the simulation data structure.
void	n (const size_t &n)
	Set the number of particles managed by this instance.
const ulvec2	bounds () const
	Get the particle index bounds of the "set of particles" managed by this class.
unsigned int	setId () const
	Get the "particles set" index associated with this class.
void	loadDefault ()
	Register some default arrays:
void	file (const std::string filename)
	Set the file name.
unsigned int	file (const std::string basename, unsigned int start_index, unsigned int digits=5)
float	time () const
	Get the current simulation time to be written.
cl_event	download (std::vector< std::string > fields)
	Download the data from the device and store it.
std::map< std::string, void * >	data () const
	Get the stored memory objects where the device data has been downloaded.
Protected Member Functions inherited from Aqua::InputOutput::InputOutput
	InputOutput ()
	Constructor.
virtual	~InputOutput ()
	Destructor.

Detailed Description

Plain text particles data files loader/saver.

These files are formatted as ASCCI plain text where the particles data are stored by rows, and where the fields are separated by columns.

Note

Comments are allowed using the symbol "#", such that all the text after this symbol, and in the same line, will be discarded. The fields can be separated by the following symbols:

" "
","
";"
"("
")"
"["
"]"
"{"
"}"
tabulator

Remarks: In the case of integer numbers (signed or unsigned) this class does not care about decimal points, just truncating the value, i.e. 1.5 will be interpreted as 1, and -1.5 will be interpreted as -1.

Warning: Saving the particles data in plain text format may be heavily hard disk demanding, and therefore it is strongly recommended to consider binary formats like Aqua::InputOutput::VTK.

Constructor & Destructor Documentation

◆ FastASCII()

Aqua::InputOutput::FastASCII::FastASCII	(	ProblemSetup &	sim_data,
		unsigned int	iset,
		size_t	offset,
		size_t	n = 0,
		const std::string	file_ext = ".dat" )

Constructor.

Parameters

sim_data	Simulation data
iset	Particles set index.
offset	First particle managed by this saver/loader.
n	Number of particles managed by this saver/loader. If 0, the number of particles will be obtained from the input file (thus only valid for loaders)

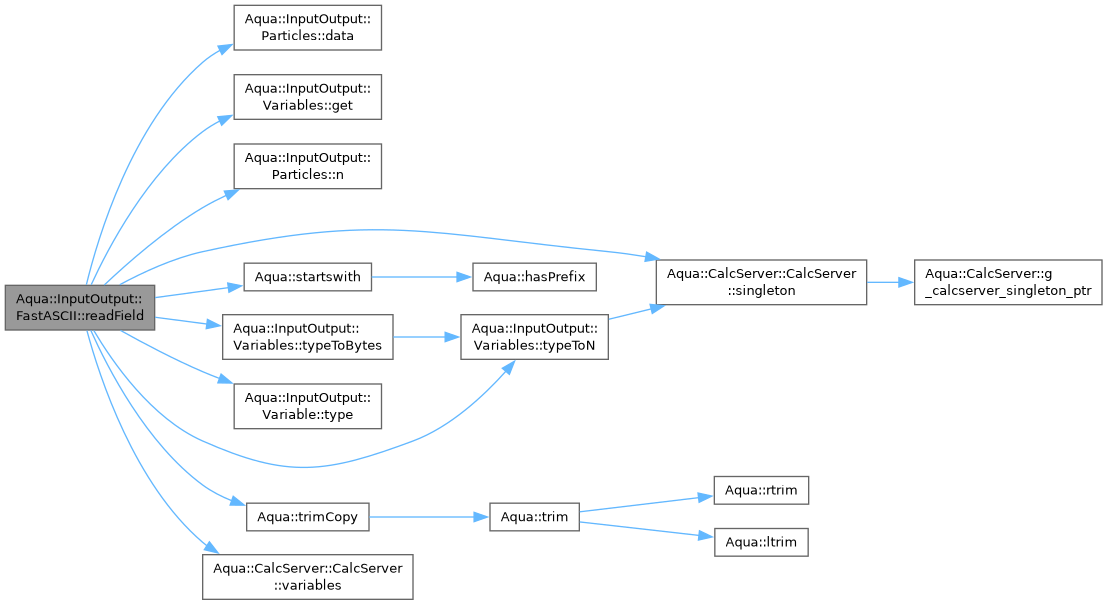

Here is the call graph for this function:

◆ ~FastASCII()

Aqua::InputOutput::FastASCII::~FastASCII ( )

Destructor.

Member Function Documentation

◆ readField()

std::string Aqua::InputOutput::FastASCII::readField	(	const std::string	field,
		const std::string	line,
		size_t	index,
		void *	data )

protectedvirtual

Extract the field value from a line.

Parameters

field	Field name.
line	Text line,
index	Index of the particle to read.
data	Data array.

Returns: Remaining text after extracting the field values.

Reimplemented from Aqua::InputOutput::ASCII.
