Execute all the tools in its scope if the condition is fulfilled. More...

#include <Conditional.hpp>

Inheritance diagram for Aqua::CalcServer::If:

[legend]

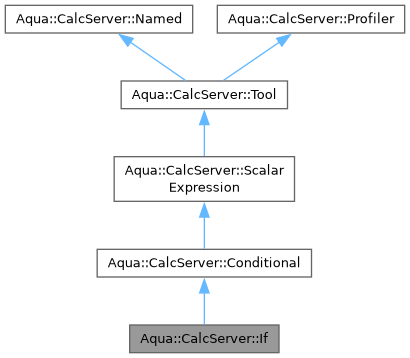

Collaboration diagram for Aqua::CalcServer::If:

[legend]

Public Member Functions
	If (const std::string name, const std::string condition, bool once=false)
	Constructor.
	~If ()
	Destructor.
Tool *	next_tool ()
Public Member Functions inherited from Aqua::CalcServer::Conditional
	Conditional (const std::string name, const std::string condition, bool once=false)
	Constructor.
	~Conditional ()
	Destructor.
void	setup ()
	Initialize the tool.
int	scope_modifier () const
Public Member Functions inherited from Aqua::CalcServer::ScalarExpression
	ScalarExpression (const std::string name, const std::string expr, const std::string type="float", bool once=false)
	Constructor.
	~ScalarExpression ()
	Destructor.
const std::string	getOutputType () const
	Get the output typesize.
void	setOutputType (const std::string type)
	Set the output typesize.
const std::string	getExpression () const
	Get the expression to evaluate.
const void *	getValue () const
	Get the stored output value.
cl_event	getUserEvent () const
	Get the user event generated by this tool to mark when is finished.
void	solve ()
	Evaluate the expression and store the value.
Public Member Functions inherited from Aqua::CalcServer::Tool
	Tool (const std::string tool_name, bool once=false)
virtual	~Tool ()
virtual void	execute ()
	Execute the tool measuring the elapsed time.
Tool *	prev_tool () const
void	prev_tool (Tool *tool)
size_t	allocatedMemory () const
unsigned int	used_times () const
void	addElapsedTime (float elapsed_time)
	Add new data to the average and squared elapsed times.
float	elapsedTime (bool averaged=true) const
float	elapsedTimeVariance () const
float	elapsedTimeDeviation () const
std::vector< InputOutput::Variable * >	getInputDependencies () const
	Get the input depedencies of the tool.
std::vector< InputOutput::Variable * >	getOutputDependencies () const
	Get the output depedencies of the tool.
std::tuple< std::vector< InputOutput::Variable * >, std::vector< InputOutput::Variable * > >	getDependencies () const
	Get the depedencies of the tool.
cl_event	getEvent () const
	Get the tool event.
void	parent (Tool *tool)
	Set the tool parent.
Tool *	parent ()
	Get the tool parent.
Public Member Functions inherited from Aqua::CalcServer::Named
	Named (const std::string name)
	~Named ()
void	name (const std::string tool_name)
const std::string	name () const
	Get the name.
Public Member Functions inherited from Aqua::CalcServer::Profiler
	Profiler ()
	~Profiler ()
std::vector< Profile * >	substages () const
	Get the substages.

Protected Member Functions
void	_solve ()
	Evaluate the expression and check whether it is true or false.
Protected Member Functions inherited from Aqua::CalcServer::ScalarExpression
virtual cl_event	_execute (const std::vector< cl_event > events)
Protected Member Functions inherited from Aqua::CalcServer::Tool
int	id_in_pipeline () const
std::string	varPrefix () const
	Produce a variable name prefix.
void	next_tool (Tool *tool)
void	allocatedMemory (size_t mem_size)
virtual cl_event	_execute (const UNUSED_PARAM std::vector< cl_event > events)
void	setDependencies (std::vector< std::string > inputs, std::vector< std::string > outputs)
	Set the depedencies of the tool.
void	setDependencies (std::vector< InputOutput::Variable * > inputs, std::vector< InputOutput::Variable * > outputs)
	Set the depedencies of the tool.
void	setDependencies (std::vector< std::string > vars)
	Set the depedencies of the tool.
void	setInputDependencies (std::vector< std::string > vars)
	Set the reading depedencies of the tool.
void	setInputDependencies (std::vector< InputOutput::Variable * > vars)
	Set the reading depedencies of the tool.
void	setOutputDependencies (std::vector< std::string > vars)
	Set the writing depedencies of the tool.
void	setOutputDependencies (std::vector< InputOutput::Variable * > vars)
	Set the writing depedencies of the tool.
void	setDependencies (std::vector< InputOutput::Variable * > vars)
	Set the depedencies of the tool.
const std::vector< cl_event >	getEvents (dep_events which=dep_events::all) const
	Get the list of events that this tool shall wait for.
Protected Member Functions inherited from Aqua::CalcServer::Profiler
void	substages (std::vector< Profile * > instances)
	Set the tool substages.

Additional Inherited Members
Protected Types inherited from Aqua::CalcServer::Tool
enum	dep_events { in = 0x01 , out = 0x02 , all = 0x03 }
Static Protected Member Functions inherited from Aqua::CalcServer::Tool
static std::vector< cl_kernel >	compile (const std::string source, const std::vector< std::string > names, const std::string flags="")
	Compile an OpenCL source code and generate the corresponding kernel.
static cl_kernel	compile_kernel (const std::string source, const std::string kernel_name, const std::string flags="")
	Compile an OpenCL source code and generate the corresponding kernel.
Protected Attributes inherited from Aqua::CalcServer::Conditional
bool	_result
	Condition result.

Detailed Description

Execute all the tools in its scope if the condition is fulfilled.

See also: Aqua::CalcServer::Conditional

Constructor & Destructor Documentation

◆ If()

Aqua::CalcServer::If::If	(	const std::string	name,
		const std::string	condition,
		bool	once = false )

Constructor.

Parameters

name	Tool name.
condition	Condition to evaluate. If the result is 0, false will be considered and all the subsequent tools will be disabled until an End tool is reached.
once	Run this tool just once. Useful to make initializations.

Here is the call graph for this function:

◆ ~If()

Aqua::CalcServer::If::~If ( )

Destructor.

Member Function Documentation

◆ _solve()

void Aqua::CalcServer::If::_solve ( )

protectedvirtual

Evaluate the expression and check whether it is true or false.

Reimplemented from Aqua::CalcServer::Conditional.

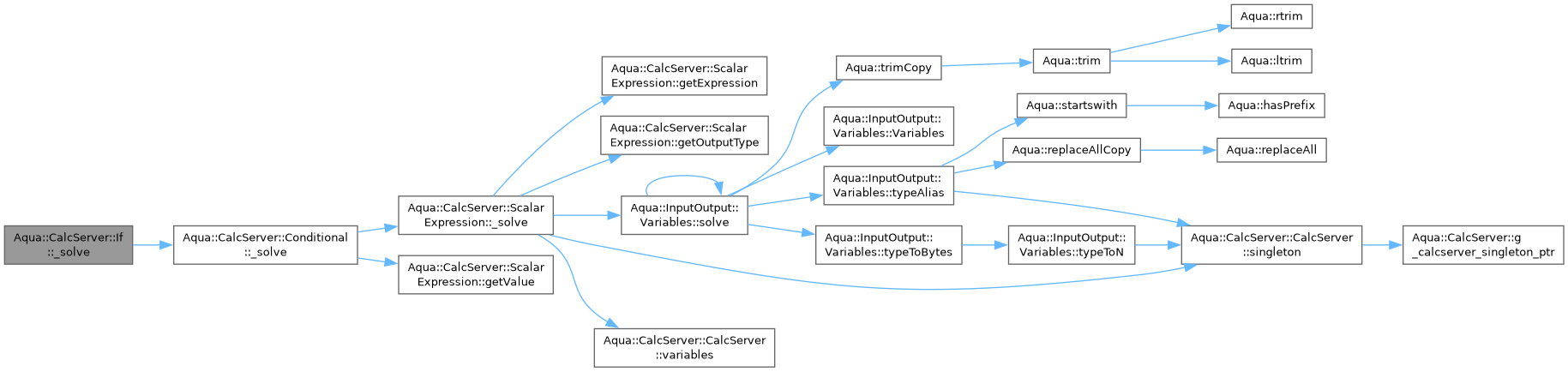

Here is the call graph for this function:

◆ next_tool()

Tool * Aqua::CalcServer::If::next_tool ( )

virtual

Get the next tool to be executed in the pipeline.

Such tool will be the next one if the condition is fulfilled, or the tool after the Aqua::CalcServer::End tool which closes the scope otherwise.

Since the closing Aqua::CalcServer::End tool is invariably giving back the control to this tool, the condition will be marked as unfulfilled when this tool is called, avoiding the loop execution

Returns: Next tool to be executed. NULL if no more tools shall be executed in the pipeline

Reimplemented from Aqua::CalcServer::Conditional.

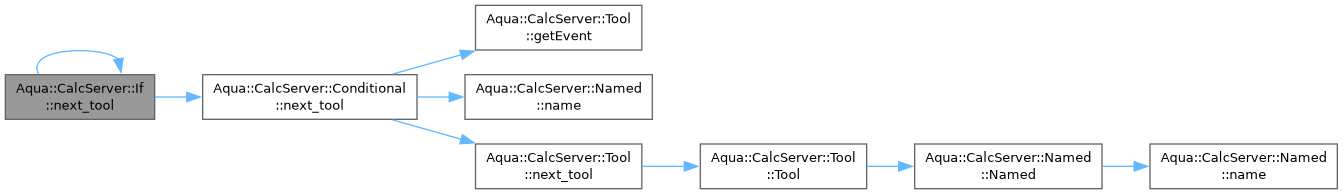

Here is the call graph for this function:

The documentation for this class was generated from the following files:

/home/pepe/SPH/Code/aquagpusph/aquagpusph/CalcServer/Conditional.hpp
/home/pepe/SPH/Code/aquagpusph/aquagpusph/CalcServer/Conditional.cpp
