Tools base class. More...

#include <Tool.hpp>

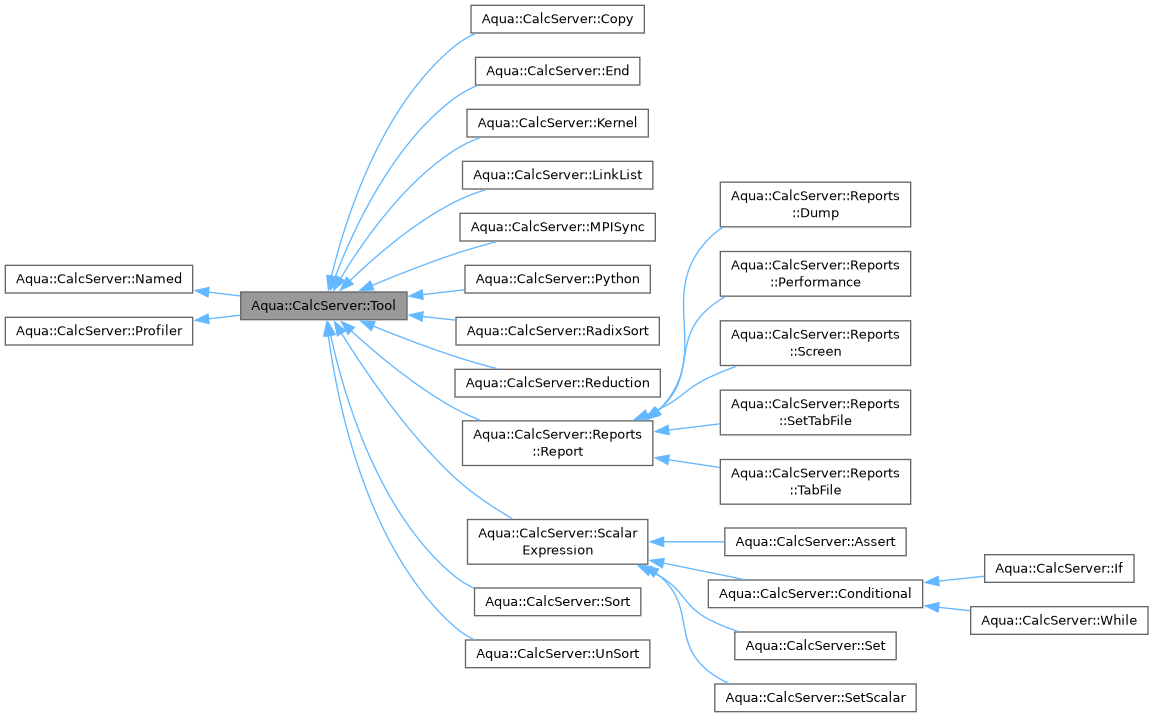

Inheritance diagram for Aqua::CalcServer::Tool:

[legend]

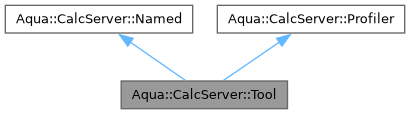

Collaboration diagram for Aqua::CalcServer::Tool:

[legend]

Public Member Functions
	Tool (const std::string tool_name, bool once=false)
virtual	~Tool ()
virtual void	setup ()
virtual void	execute ()
	Execute the tool measuring the elapsed time.
virtual Tool *	next_tool ()
Tool *	prev_tool () const
void	prev_tool (Tool *tool)
size_t	allocatedMemory () const
unsigned int	used_times () const
void	addElapsedTime (float elapsed_time)
	Add new data to the average and squared elapsed times.
float	elapsedTime (bool averaged=true) const
float	elapsedTimeVariance () const
float	elapsedTimeDeviation () const
virtual int	scope_modifier () const
std::vector< InputOutput::Variable * >	getInputDependencies () const
	Get the input depedencies of the tool.
std::vector< InputOutput::Variable * >	getOutputDependencies () const
	Get the output depedencies of the tool.
std::tuple< std::vector< InputOutput::Variable * >, std::vector< InputOutput::Variable * > >	getDependencies () const
	Get the depedencies of the tool.
cl_event	getEvent () const
	Get the tool event.
void	parent (Tool *tool)
	Set the tool parent.
Tool *	parent ()
	Get the tool parent.
Public Member Functions inherited from Aqua::CalcServer::Named
	Named (const std::string name)
	~Named ()
void	name (const std::string tool_name)
const std::string	name () const
	Get the name.
Public Member Functions inherited from Aqua::CalcServer::Profiler
	Profiler ()
	~Profiler ()
std::vector< Profile * >	substages () const
	Get the substages.

Protected Types
enum	dep_events { in = 0x01 , out = 0x02 , all = 0x03 }

Protected Member Functions
int	id_in_pipeline () const

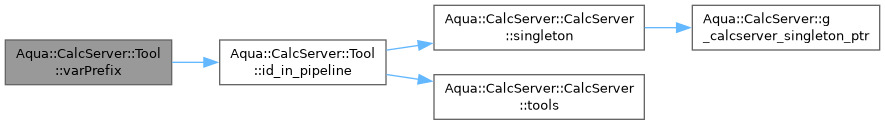

std::string	varPrefix () const
	Produce a variable name prefix.
void	next_tool (Tool *tool)
void	allocatedMemory (size_t mem_size)
virtual cl_event	_execute (const UNUSED_PARAM std::vector< cl_event > events)
void	setDependencies (std::vector< std::string > inputs, std::vector< std::string > outputs)
	Set the depedencies of the tool.
void	setDependencies (std::vector< InputOutput::Variable * > inputs, std::vector< InputOutput::Variable * > outputs)
	Set the depedencies of the tool.
void	setDependencies (std::vector< std::string > vars)
	Set the depedencies of the tool.
void	setInputDependencies (std::vector< std::string > vars)
	Set the reading depedencies of the tool.
void	setInputDependencies (std::vector< InputOutput::Variable * > vars)
	Set the reading depedencies of the tool.
void	setOutputDependencies (std::vector< std::string > vars)
	Set the writing depedencies of the tool.
void	setOutputDependencies (std::vector< InputOutput::Variable * > vars)
	Set the writing depedencies of the tool.
void	setDependencies (std::vector< InputOutput::Variable * > vars)
	Set the depedencies of the tool.
const std::vector< cl_event >	getEvents (dep_events which=dep_events::all) const
	Get the list of events that this tool shall wait for.
Protected Member Functions inherited from Aqua::CalcServer::Profiler
void	substages (std::vector< Profile * > instances)
	Set the tool substages.

Static Protected Member Functions
static std::vector< cl_kernel >	compile (const std::string source, const std::vector< std::string > names, const std::string flags="")
	Compile an OpenCL source code and generate the corresponding kernel.
static cl_kernel	compile_kernel (const std::string source, const std::string kernel_name, const std::string flags="")
	Compile an OpenCL source code and generate the corresponding kernel.

Detailed Description

Tools base class.

The way that AQUAgpusph compute each problem is set through a set of tools that are computed sequentially. Several tools can be considered, for instance:

A single OpenCL kernel
A more complex OpenCL tool like Reductions or LinkList
Python scripts
Variables set

Member Enumeration Documentation

◆ dep_events

enum Aqua::CalcServer::Tool::dep_events

protected

Enumerator
in
out
all

Constructor & Destructor Documentation

◆ Tool()

Aqua::CalcServer::Tool::Tool	(	const std::string	tool_name,
		bool	once = false )

Constructor.

Parameters

tool_name	Name of the tool. Useful to identify errors.
once	Run this tool just once. Useful to make initializations.

Here is the call graph for this function:

◆ ~Tool()

Aqua::CalcServer::Tool::~Tool ( )

virtual

Destructor

Member Function Documentation

◆ _execute()

virtual cl_event Aqua::CalcServer::Tool::_execute ( const UNUSED_PARAM std::vector< cl_event > events )

inlineprotectedvirtual

Execute the tool

Parameters

events List of events that shall be waited before safe execution

Returns: OpenCL event to be waited before accessing the dependencies

◆ addElapsedTime()

void Aqua::CalcServer::Tool::addElapsedTime ( float elapsed_time )

Add new data to the average and squared elapsed times.

Parameters

elapsed_time Elapsed time

◆ allocatedMemory() [1/2]

size_t Aqua::CalcServer::Tool::allocatedMemory ( ) const

inline

Get the allocated memory for this tool.

Returns: allocated memory by this tool.

◆ allocatedMemory() [2/2]

void Aqua::CalcServer::Tool::allocatedMemory ( size_t mem_size )

inlineprotected

Set the allocated memory for this tool.

Parameters

mem_size allocated memory by this tool.

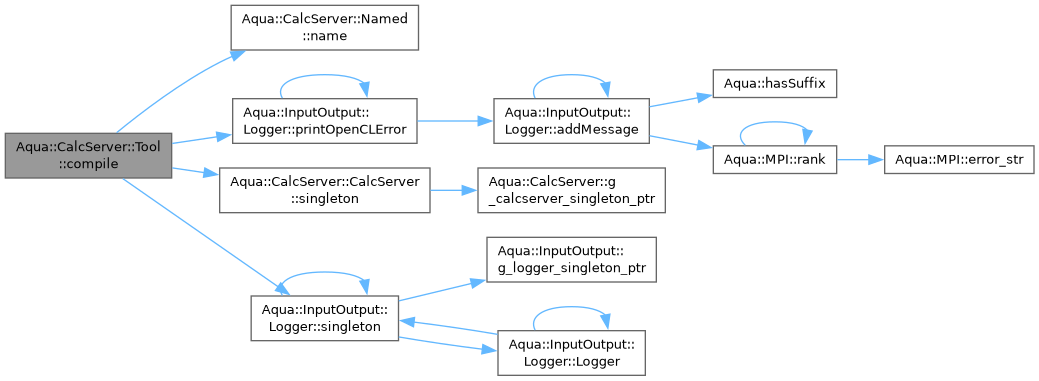

◆ compile()

std::vector< cl_kernel > Aqua::CalcServer::Tool::compile	(	const std::string	source,
		const std::vector< std::string >	names,
		const std::string	flags = "" )

staticprotected

Compile an OpenCL source code and generate the corresponding kernel.

With this method several operations are carried out at the same time. First the program is compiled and linked. Afterwards, the required kernels are extracted, and the program object is released

Parameters

source	Source code to be compiled
names	Function names to be extracted in the kernel
flags	Additional compilation flags. Some flags are used by default: -DDEBUG/-DNDEBUG depending on whether DEBUG mode is enabled or not -cl-mad-enable -cl-fast-relaxed-math -DHAVE_2D/-DHAVE_3D depending on whether 2D or 3D is considered

Returns: Kernel instances

Here is the call graph for this function:

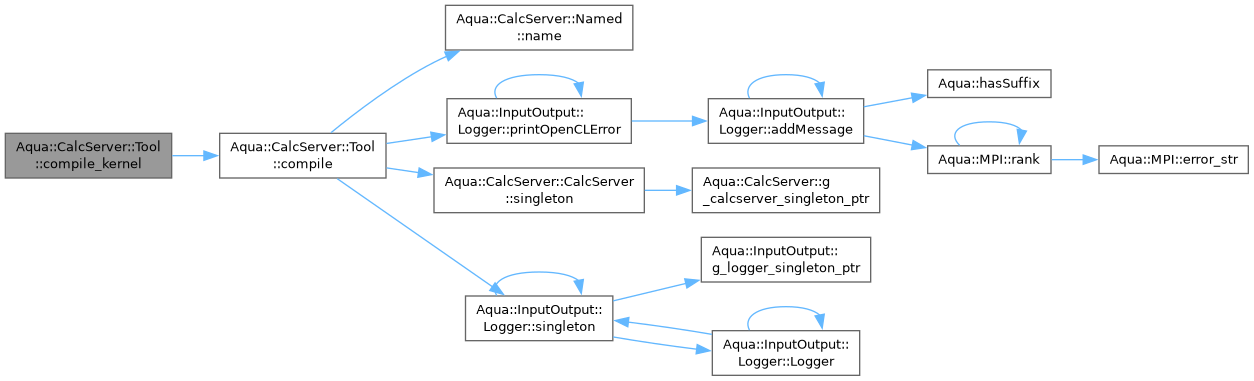

◆ compile_kernel()

cl_kernel Aqua::CalcServer::Tool::compile_kernel	(	const std::string	source,
		const std::string	kernel_name,
		const std::string	flags = "" )

staticprotected

Compile an OpenCL source code and generate the corresponding kernel.

With this method several operations are carried out at the same time. First the program is compiled and linked. Afterwards, the required kernel is extracted, and the program object is released

Parameters

source	Source code to be compiled
kernel_name	Function name to be extracted in the kernel
flags	Additional compilation flags. Some flags are used by default: -DDEBUG/-DNDEBUG depending on whether DEBUG mode is enabled or not -cl-mad-enable -cl-fast-relaxed-math -DHAVE_2D/-DHAVE_3D depending on whether 2D or 3D is considered

Returns: Kernel instance

Here is the call graph for this function:

◆ elapsedTime()

float Aqua::CalcServer::Tool::elapsedTime ( bool averaged = true ) const

inline

Get the time consumed by the tool.

Parameters

averaged true if the avergaed time step is required, false otherwise.

Returns: time consumed.

◆ elapsedTimeDeviation()

float Aqua::CalcServer::Tool::elapsedTimeDeviation ( ) const

inline

Get the time consumed standard deviation.

Returns: Time consumed standard deviation.

Here is the call graph for this function:

◆ elapsedTimeVariance()

float Aqua::CalcServer::Tool::elapsedTimeVariance ( ) const

inline

Get the time consumed variance.

Returns: Time consumed variance.

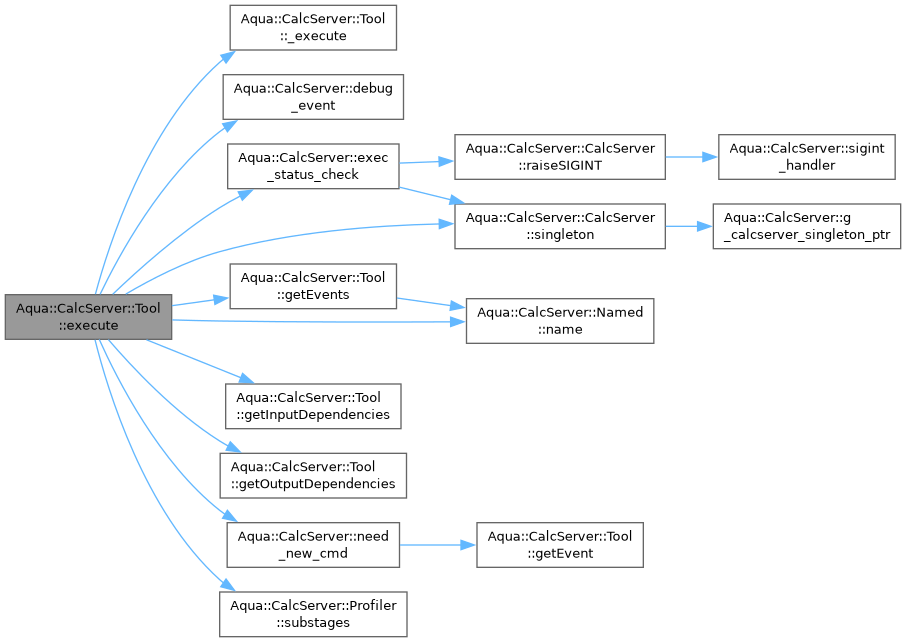

◆ execute()

void Aqua::CalcServer::Tool::execute ( )

virtual

Execute the tool measuring the elapsed time.

Actually this method is just ensuring that the tool can be executed, e.g. the tool has been already executed, but it is asked to be ran just once. If the tool can be executed, then _execute() method is called, measuring the time required to carry out the task.

Returns: false if all gone right, true otherwise.

Note: Usually you don't want to overload this method, but the _execute() protected one.

Here is the call graph for this function:

◆ getDependencies()

std::tuple< std::vector< InputOutput::Variable * >, std::vector< InputOutput::Variable * > > Aqua::CalcServer::Tool::getDependencies ( ) const

inline

Get the depedencies of the tool.

Returns: The input and output dependencies

◆ getEvent()

cl_event Aqua::CalcServer::Tool::getEvent ( ) const

inline

Get the tool event.

That event will mark when the tool has already finished

Returns: The event

◆ getEvents()

const std::vector< cl_event > Aqua::CalcServer::Tool::getEvents ( dep_events which = dep_events::all ) const

protected

Get the list of events that this tool shall wait for.

Returns: List of events

Note: The events returned have been retained, so call clReleaseEvent() after using them

Here is the call graph for this function:

◆ getInputDependencies()

std::vector< InputOutput::Variable * > Aqua::CalcServer::Tool::getInputDependencies ( ) const

inline

Get the input depedencies of the tool.

Returns: The input and output dependencies

◆ getOutputDependencies()

std::vector< InputOutput::Variable * > Aqua::CalcServer::Tool::getOutputDependencies ( ) const

inline

Get the output depedencies of the tool.

Returns: The input and output dependencies

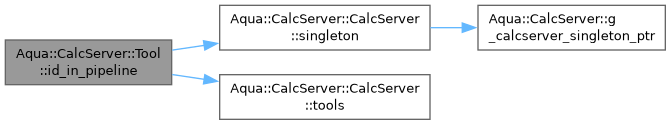

◆ id_in_pipeline()

int Aqua::CalcServer::Tool::id_in_pipeline ( ) const

protected

Get the tool index in the pipeline

Returns: Index of the tool in the pipeline. -1 if the tool cannot be find

Here is the call graph for this function:

◆ next_tool() [1/2]

virtual Tool * Aqua::CalcServer::Tool::next_tool ( )

inlinevirtual

Get the next tool to be executed in the pipeline.

Such tool is usually just the next one in the linearized tools chain. However, conditional tools may alter the flow

Returns: Next tool to be executed. NULL if this is the last tool of the pipeline

Reimplemented in Aqua::CalcServer::Conditional, and Aqua::CalcServer::If.

Here is the call graph for this function:

◆ next_tool() [2/2]

void Aqua::CalcServer::Tool::next_tool ( Tool * tool )

inlineprotected

Set the next tool to be executed in the pipeline.

Parameters

tool	Next tool to be executed. NULL if this is the last tool of the pipeline

Here is the call graph for this function:

◆ parent() [1/2]

Tool * Aqua::CalcServer::Tool::parent ( )

inline

Get the tool parent.

Returns: Parent tool. NULL if the tool has no parent

Here is the call graph for this function:

◆ parent() [2/2]

void Aqua::CalcServer::Tool::parent ( Tool * tool )

inline

Set the tool parent.

Parameters

tool	Parent tool. It can be NULL to set a top level tool

Here is the call graph for this function:

◆ prev_tool() [1/2]

Tool * Aqua::CalcServer::Tool::prev_tool ( ) const

inline

Get the previous tool executed in the pipeline.

CalcServer::CalcServer will provide with this information.

Returns: Previous enqueued tool. NULL if there is no previous tool on the pipeline

Here is the call graph for this function:

◆ prev_tool() [2/2]

void Aqua::CalcServer::Tool::prev_tool ( Tool * tool )

inline

Set the previous tool executed in the pipeline.

CalcServer::CalcServer will provide with this information.

Parameters

tool	Previous enqueued tool.

Here is the call graph for this function:

◆ scope_modifier()

virtual int Aqua::CalcServer::Tool::scope_modifier ( ) const

inlinevirtual

Get the scope modifier

Scopes can be used to create groups of tools that can be eventually enabled/disabled in runtime. This is sueful to create conditions.

Returns: 0 if this tool is not modifying the scope, 1 if this tool is creating a new subscope, and -1 if this tool is closing an already created subscope, returning to the previous one

Note: scopes shall be always balanced

Reimplemented in Aqua::CalcServer::Conditional, and Aqua::CalcServer::End.

◆ setDependencies() [1/4]

void Aqua::CalcServer::Tool::setDependencies	(	std::vector< InputOutput::Variable * >	inputs,
		std::vector< InputOutput::Variable * >	outputs )

inlineprotected

Set the depedencies of the tool.

The dependencies are the variables that this tool is either reading or writing.

Parameters

inputs	Input variables
outputs	Output variables

◆ setDependencies() [2/4]

void Aqua::CalcServer::Tool::setDependencies ( std::vector< InputOutput::Variable * > vars )

inlineprotected

Set the depedencies of the tool.

The dependencies are the variables that this tool is either reading or writing.

Warning: This function will treat all the dependencies as outputs

Parameters

vars	Output variables

Here is the call graph for this function:

◆ setDependencies() [3/4]

void Aqua::CalcServer::Tool::setDependencies	(	std::vector< std::string >	inputs,
		std::vector< std::string >	outputs )

inlineprotected

Set the depedencies of the tool.

The dependencies are the variables that this tool is either reading or writing.

Parameters

inputs	Names of the input variables
outputs	Names of the output variables

◆ setDependencies() [4/4]

void Aqua::CalcServer::Tool::setDependencies ( std::vector< std::string > vars )

inlineprotected

Set the depedencies of the tool.

The dependencies are the variables that this tool is either reading or writing.

Warning: This function will treat all the dependencies as outputs

Parameters

vars	Output variable names

Here is the call graph for this function:

◆ setInputDependencies() [1/2]

void Aqua::CalcServer::Tool::setInputDependencies ( std::vector< InputOutput::Variable * > vars )

inlineprotected

Set the reading depedencies of the tool.

The dependencies are the variables that this tool is either reading or writing.

Parameters

inputs Input variables

◆ setInputDependencies() [2/2]

void Aqua::CalcServer::Tool::setInputDependencies ( std::vector< std::string > vars )

inlineprotected

Set the reading depedencies of the tool.

The dependencies are the variables that this tool is either reading or writing.

Parameters

inputs Names of the input variables

◆ setOutputDependencies() [1/2]

void Aqua::CalcServer::Tool::setOutputDependencies ( std::vector< InputOutput::Variable * > vars )

inlineprotected

Set the writing depedencies of the tool.

The dependencies are the variables that this tool is either reading or writing.

Parameters

inputs Output variables

◆ setOutputDependencies() [2/2]

void Aqua::CalcServer::Tool::setOutputDependencies ( std::vector< std::string > vars )

inlineprotected

Set the writing depedencies of the tool.

The dependencies are the variables that this tool is either reading or writing.

Parameters

inputs Names of the output variables

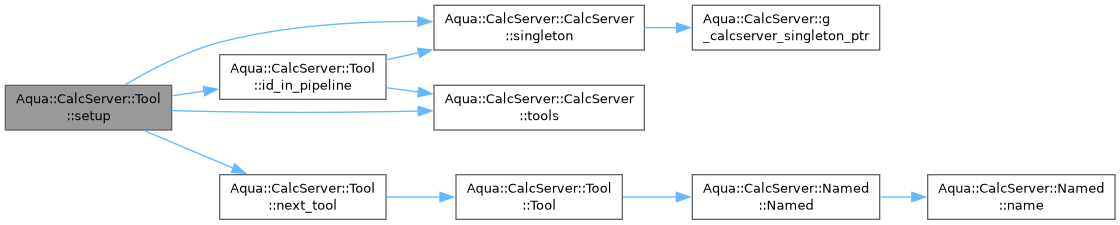

◆ setup()

void Aqua::CalcServer::Tool::setup ( )

virtual

◆ used_times()

unsigned int Aqua::CalcServer::Tool::used_times ( ) const

inline

Get the number of times that this tool has been called.

Returns: Number of times this tool has been called.

◆ varPrefix()

std::string Aqua::CalcServer::Tool::varPrefix ( ) const

inlineprotected

Produce a variable name prefix.

The prefix produced is unique for each instance of this class, granting that the variable will have a unique name, as long as the same name is not used elsewhere on the same class

Here is the call graph for this function:

The documentation for this class was generated from the following files:

/home/pepe/SPH/Code/aquagpusph/aquagpusph/CalcServer/Tool.hpp
/home/pepe/SPH/Code/aquagpusph/aquagpusph/CalcServer/Tool.cpp

Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Detailed Description

Member Enumeration Documentation

◆ dep_events

Constructor & Destructor Documentation

◆ Tool()

◆ ~Tool()

Member Function Documentation

◆ _execute()

◆ addElapsedTime()

◆ allocatedMemory() [1/2]

◆ allocatedMemory() [2/2]

◆ compile()

◆ compile_kernel()

◆ elapsedTime()

◆ elapsedTimeDeviation()

◆ elapsedTimeVariance()

◆ execute()

◆ getDependencies()

◆ getEvent()

◆ getEvents()

◆ getInputDependencies()

◆ getOutputDependencies()

◆ id_in_pipeline()

◆ next_tool() [1/2]

◆ next_tool() [2/2]

◆ parent() [1/2]

◆ parent() [2/2]

◆ prev_tool() [1/2]

◆ prev_tool() [2/2]

◆ scope_modifier()

◆ setDependencies() [1/4]

◆ setDependencies() [2/4]

◆ setDependencies() [3/4]

◆ setDependencies() [4/4]

◆ setInputDependencies() [1/2]

◆ setInputDependencies() [2/2]

◆ setOutputDependencies() [1/2]

◆ setOutputDependencies() [2/2]

◆ setup()

◆ used_times()

◆ varPrefix()
