Aqua::CalcServer Namespace Reference

Calculation server name space. More...

Namespaces
namespace	Reports
	Runtime outputs name space.

Data Structures
struct	_ProfilingSample
	Profiling sample. More...
struct	_ProfilingSnapshot
	Profiling snapshot. More...
class	ArgSetter
class	Assert
	Check that a condition holds true, or throw a fatal error otherwise. More...
class	CalcServer
	Entity that perform the main work of the simulation. More...
class	Conditional
	Base class for conditional tools like While or If. More...
class	Copy
	Copy an array component by component. More...
class	End
	Close the scope open by a previous conditional tool, like While or If. More...
class	EventProfile
	Profiler for tools based on OpenCL enqueued commands. More...
class	If
	Execute all the tools in its scope if the condition is fulfilled. More...
class	Kernel
	A tool consisting in an OpenCL kernel execution. The variables used in the OpenCL kernel are automatically detected. More...
class	LinkList
	Complex tool to perform the link-list based on an array. This tool include the following steps: More...
class	MPISync
	Synchronize arrays between processes. More...
class	Named
	A helper class for named objects. More...
class	Profile
	Profiler subinstance base class. More...
class	Profiler
	Profiling base class. More...
class	ProfilingInfo
	A FIFO list of profiling snapshots. More...
class	Python
	Execute a Python script. More...
class	RadixSort
	Methods to perform a radix sort using the GPU (or any device supported by OpenCL). The code has 3 steps: More...
class	Reduction
	Reductions, like scans, prefix sums, maximum or minimum, etc... More...
class	ScalarExpression
	Base class for tools that has to evaluate a scalar expression. More...
class	ScalarProfile
	Profiler for tools based on scalar solvers. More...
class	Set
	Set all the components of an array with the desired value. More...
class	SetScalar
	Set a scalar variable. More...
class	Sort
	Methods to perform a vector sorting using the GPU (or any device supported by OpenCL). More...
class	Tool
	Tools base class. More...
class	UnSort
	Recover the original id of each particle. More...
class	user_interruption
	Exception raised when the user manually interrupts the simulation. More...
class	While
	Execute all the tools in its scope until the condition becomes unfulfilled. More...

Typedefs
typedef InputOutput::ProblemSetup::sphSettings::debug_opts	debug_opts
typedef struct Aqua::CalcServer::_ProfilingSample	ProfilingSample
	Profiling sample.
typedef struct Aqua::CalcServer::_ProfilingSnapshot	ProfilingSnapshot
	Profiling snapshot.

Functions
void	sigint_handler (int UNUSED_PARAM s)
	Handle SIGINT signals.
std::atomic< CalcServer * >	g_calcserver_singleton_ptr (nullptr)
	Singleton instance of Aqua::CalcServer::CalcServer.
cl_command_queue	create_command_queue (cl_context context, cl_device_id device, cl_int *errcode_ret)
	Create an OpenCL command queue.
std::tuple< unsigned int, unsigned int >	opencl_version (std::string version)
	Get the OpenCL major and minor version from the string returned by clGetPlatformInfo() and clGetDeviceInfo()
std::tuple< unsigned int, unsigned int >	opencl_version (cl_platform_id platform)
	Get the paltform's OpenCL major and minor version.
std::tuple< unsigned int, unsigned int >	opencl_version (cl_device_id device)
	Get the device's OpenCL major and minor version.
std::string	getDeviceInfoStr (cl_device_id device, cl_device_info param_name)
	Wrapper to clGetDeviceInfo() for strings related operations.
void CL_CALLBACK	context_error_notify (const char *errinfo, const void UNUSED_PARAM *private_info, size_t UNUSED_PARAM cb, void *user_data)
	Runtime error reporting tool.
void CL_CALLBACK	device_timer_sampler (cl_event event, cl_int UNUSED_PARAM event_command_status, void *user_data)
	Sample both the system clock and the devie timer to compute the offset.
void CL_CALLBACK	event_profile_cb (cl_event UNUSED_PARAM n_event, cl_int UNUSED_PARAM cmd_exec_status, void *user_data)
	Callback called when the profiler ending event has finished.
void	debug_arg (unsigned int i, InputOutput::Variable *var, cl_kernel kernel, TLogLevel log_level=L_DEBUG, const char *indent="\t\t")
	Auxiliar function to print information about arguments.
void CL_CALLBACK	cbUserEventSync (cl_event n_event, cl_int cmd_exec_status, void *user_data)
	Syncing utility to set an user event status to the same status of another OpenCL event.
void	sync_user_event (cl_event user_event, cl_event event)
	Synchronize an user event with another OpenCL event.
bool	isKernelArgReadOnly (cl_kernel kernel, cl_uint arg_index)
void CL_CALLBACK	populator (cl_event event, cl_int event_command_status, void *user_data)
	Callback called when Aqua::CalcServer::Reduction already set the new value on the output value.
void CL_CALLBACK	solver (cl_event event, cl_int event_command_status, void *user_data)
	Callback called when all the dependencies of the Aqua::CalcServer::ScalarExpression tool are fulfilled.
void CL_CALLBACK	exec_status_check (cl_event event, cl_int event_command_status, void *user_data)
bool	need_new_cmd (const Tool *prev_tool, std::vector< cl_event > events)
void	debug_event (cl_event event, CalcServer *C, TLogLevel log_level=L_DEBUG, const char *indent="\t\t")
	Auxiliar function to print information about events, for debugging purposes.

Variables
static bool	sigint_received = false
	Have been a SIGINT already registered?
std::mutex	profiling_mutex
	A mutex to avoid several threads writing profiling samples simultaneously.
std::string	LINKLIST_INC = xxd2string(LinkList_hcl_in, LinkList_hcl_in_len)
std::string	LINKLIST_SRC = xxd2string(LinkList_cl_in, LinkList_cl_in_len)
std::string	RADIXSORT_INC = xxd2string(RadixSort_hcl_in, RadixSort_hcl_in_len)
std::string	RADIXSORT_SRC = xxd2string(RadixSort_cl_in, RadixSort_cl_in_len)
std::string	REDUCTION_INC = xxd2string(Reduction_hcl_in, Reduction_hcl_in_len)
std::string	REDUCTION_SRC = xxd2string(Reduction_cl_in, Reduction_cl_in_len)
std::string	SET_INC = xxd2string(Set_hcl_in, Set_hcl_in_len)
std::string	SET_SRC = xxd2string(Set_cl_in, Set_cl_in_len)
std::string	SORT_INC = xxd2string(Sort_hcl_in, Sort_hcl_in_len)
std::string	SORT_SRC = xxd2string(Sort_cl_in, Sort_cl_in_len)
std::string	UNSORT_INC = xxd2string(UnSort_hcl_in, UnSort_hcl_in_len)
std::string	UNSORT_SRC = xxd2string(UnSort_cl_in, UnSort_cl_in_len)

Detailed Description

Calculation server name space.

Typedef Documentation

debug_opts

typedef InputOutput::ProblemSetup::sphSettings::debug_opts Aqua::CalcServer::debug_opts

ProfilingSample

typedef struct Aqua::CalcServer::_ProfilingSample Aqua::CalcServer::ProfilingSample

Profiling sample.

ProfilingSnapshot

typedef struct Aqua::CalcServer::_ProfilingSnapshot Aqua::CalcServer::ProfilingSnapshot

Profiling snapshot.

Function Documentation

cbUserEventSync()

void CL_CALLBACK Aqua::CalcServer::cbUserEventSync	(	cl_event	n_event,
		cl_int	cmd_exec_status,
		void *	user_data )

Syncing utility to set an user event status to the same status of another OpenCL event.

This utility shall be used by means of sync_user_event()

Parameters

n_event	Associated event
cmd_exec_status	Triggering status
user_data	Recasted cl_event pointer

Note

If cmd_exec_status=CL_COMPLETE clReleaseEvent will be called on top of the user event. Thus, call clRetainEvent if you want to further keep the event

context_error_notify()

void CL_CALLBACK Aqua::CalcServer::context_error_notify	(	const char *	errinfo,
		const void UNUSED_PARAM *	private_info,
		size_t UNUSED_PARAM	cb,
		void *	user_data )

Runtime error reporting tool.

Errors reported in this way directly depends on the implementation.

Parameters

errinfo	is a pointer to an error string.
private_info	pointer to binary data that is returned by the OpenCL implementation that can be used to log additional information helpful in debugging the error.
cb	Size of the binary data, #private_info.
user_data	Current tool name.

create_command_queue()

cl_command_queue Aqua::CalcServer::create_command_queue	(	cl_context	context,
		cl_device_id	device,
		cl_int *	errcode_ret )

Create an OpenCL command queue.

This function is just a wrapper for backguard compatibility. More specifically, clCreateCommandQueue is deprecated since OpenCL 1.2

Parameters

context	OpenCL context
device	OpenCL device
errcode_ret	Returning error code

See also

https://www.khronos.org/registry/OpenCL/sdk/2.0/docs/man/xhtml/deprecated.html

https://www.khronos.org/registry/OpenCL/sdk/2.0/docs/man/xhtml/clCreateCommandQueueWithProperties.html

debug_arg()

void Aqua::CalcServer::debug_arg	(	unsigned int	i,
		InputOutput::Variable *	var,
		cl_kernel	kernel,
		TLogLevel	log_level = L_DEBUG,
		const char *	indent = "\t\t" )

Auxiliar function to print information about arguments.

Parameters

i	The index of the argument
var	The variable to be set
kernel	The kernel where the variable has to be set
C	The CalcServer instance
log_level	The log level
indent	Base indent level

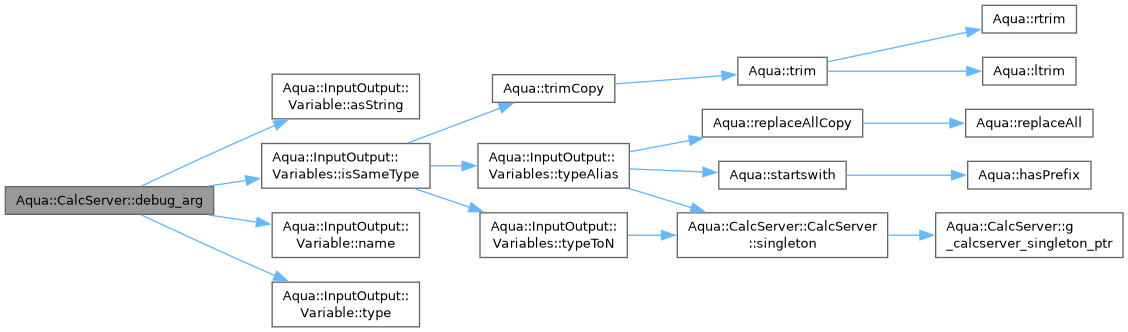

Here is the call graph for this function:

debug_event()

void Aqua::CalcServer::debug_event	(	cl_event	event,
		CalcServer *	C,
		TLogLevel	log_level = L_DEBUG,
		const char *	indent = "\t\t" )

Auxiliar function to print information about events, for debugging purposes.

Parameters

event	The event to debug
C	The CalcServer instance
log_level	The log level
indent	Base indent level

device_timer_sampler()

void CL_CALLBACK Aqua::CalcServer::device_timer_sampler	(	cl_event	event,
		cl_int UNUSED_PARAM	event_command_status,
		void *	user_data )

Sample both the system clock and the devie timer to compute the offset.

Parameters

event	The triggering event
event_command_status	CL_COMPLETE
user_data	A casted pointer to the Aqua::CalcServer::CalcServer::_device_timer_offset value

Here is the call graph for this function:

event_profile_cb()

void CL_CALLBACK Aqua::CalcServer::event_profile_cb	(	cl_event UNUSED_PARAM	n_event,
		cl_int UNUSED_PARAM	cmd_exec_status,
		void *	user_data )

Callback called when the profiler ending event has finished.

Parameters

event	The Ending event
cmd_exec_status	Event status
user_data	Recasted EventProfile pointer

exec_status_check()

void CL_CALLBACK Aqua::CalcServer::exec_status_check	(	cl_event	event,
		cl_int	event_command_status,
		void *	user_data )

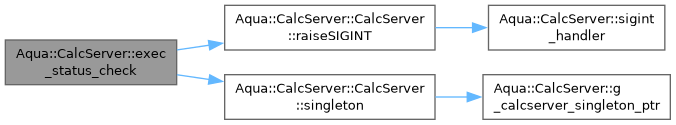

Here is the call graph for this function:

g_calcserver_singleton_ptr()

std::atomic< CalcServer * > Aqua::CalcServer::g_calcserver_singleton_ptr

(

nullptr

)

Singleton instance of Aqua::CalcServer::CalcServer.

getDeviceInfoStr()

std::string Aqua::CalcServer::getDeviceInfoStr	(	cl_device_id	device,
		cl_device_info	param_name )

Wrapper to clGetDeviceInfo() for strings related operations.

Parameters

device	The device
param_name	The parameter

Returns

The returned string

isKernelArgReadOnly()

bool Aqua::CalcServer::isKernelArgReadOnly	(	cl_kernel	kernel,
		cl_uint	arg_index )

need_new_cmd()

bool Aqua::CalcServer::need_new_cmd	(	const Tool *	prev_tool,
		std::vector< cl_event >	events )

Here is the call graph for this function:

opencl_version() [1/3]

std::tuple< unsigned int, unsigned int > Aqua::CalcServer::opencl_version

(

cl_device_id

device

)

Get the device's OpenCL major and minor version.

Parameters

platform

The platform identifier

Returns

The major and minor version numbers. 0.0 if the version cannot be recovered

Here is the call graph for this function:

opencl_version() [2/3]

std::tuple< unsigned int, unsigned int > Aqua::CalcServer::opencl_version

(

cl_platform_id

platform

)

Get the paltform's OpenCL major and minor version.

Parameters

platform

The platform identifier

Returns

The major and minor version numbers. 0.0 if the version cannot be recovered

Here is the call graph for this function:

opencl_version() [3/3]

std::tuple< unsigned int, unsigned int > Aqua::CalcServer::opencl_version

(

std::string

version

)

Get the OpenCL major and minor version from the string returned by clGetPlatformInfo() and clGetDeviceInfo()

Parameters

version

The version string

Returns

The major and minor version numbers. 0.0 if the string is ill-formatted

Here is the call graph for this function:

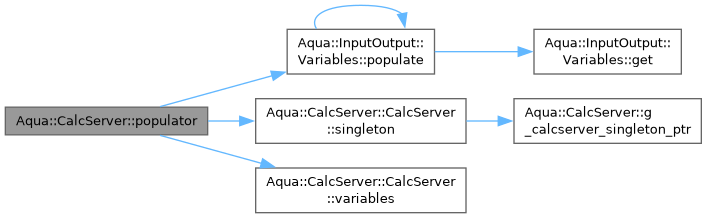

populator()

void CL_CALLBACK Aqua::CalcServer::populator	(	cl_event	event,
		cl_int	event_command_status,
		void *	user_data )

Callback called when Aqua::CalcServer::Reduction already set the new value on the output value.

This function is just populating the variable

Parameters

event	The triggering event
event_command_status	CL_COMPLETE upon all dependencies successfully fulfilled. A negative integer if one or mor dependencies failed.
user_data	A casted pointer to the Aqua::CalcServer::ScalarExpression tool (or the inherited one)

Here is the call graph for this function:

sigint_handler()

void Aqua::CalcServer::sigint_handler

(

int UNUSED_PARAM

s

)

Handle SIGINT signals.

The first time a SIGINT is received, Aqua::CalcServer::sigint_received is set to true, such that, at the end of the current time step the simulation will stop, the last output will be printed, and the resources will be correctly released.

If SIGINT is received twice, then this handler will enforce the inmediate program exit.

Parameters

s	Recevied signal, SIGINT

solver()

void CL_CALLBACK Aqua::CalcServer::solver	(	cl_event	event,
		cl_int	event_command_status,
		void *	user_data )

Callback called when all the dependencies of the Aqua::CalcServer::ScalarExpression tool are fulfilled.

This function is just redirecting the work to Aqua::CalcServer::ScalarExpression::solve()

Parameters

event	The triggering event
event_command_status	CL_COMPLETE upon all dependencies successfully fulfilled. A negative integer if one or mor dependencies failed.
user_data	A casted pointer to the Aqua::CalcServer::ScalarExpression tool (or the inherited one)

sync_user_event()

void Aqua::CalcServer::sync_user_event	(	cl_event	user_event,
		cl_event	event )

Synchronize an user event with another OpenCL event.

clReleaseEvent() will be called on both events. Thus, call clRetainEvent() if you want to further keep them

Parameters

user_event	User event to be synced
event	Associated OpenCL event

Here is the call graph for this function:

Variable Documentation

LINKLIST_INC

std::string Aqua::CalcServer::LINKLIST_INC = xxd2string(LinkList_hcl_in, LinkList_hcl_in_len)

LINKLIST_SRC

std::string Aqua::CalcServer::LINKLIST_SRC = xxd2string(LinkList_cl_in, LinkList_cl_in_len)

profiling_mutex

std::mutex Aqua::CalcServer::profiling_mutex

A mutex to avoid several threads writing profiling samples simultaneously.

RADIXSORT_INC

std::string Aqua::CalcServer::RADIXSORT_INC = xxd2string(RadixSort_hcl_in, RadixSort_hcl_in_len)

RADIXSORT_SRC

std::string Aqua::CalcServer::RADIXSORT_SRC = xxd2string(RadixSort_cl_in, RadixSort_cl_in_len)

REDUCTION_INC

std::string Aqua::CalcServer::REDUCTION_INC = xxd2string(Reduction_hcl_in, Reduction_hcl_in_len)

REDUCTION_SRC

std::string Aqua::CalcServer::REDUCTION_SRC = xxd2string(Reduction_cl_in, Reduction_cl_in_len)

SET_INC

std::string Aqua::CalcServer::SET_INC = xxd2string(Set_hcl_in, Set_hcl_in_len)

SET_SRC

std::string Aqua::CalcServer::SET_SRC = xxd2string(Set_cl_in, Set_cl_in_len)

sigint_received

bool Aqua::CalcServer::sigint_received = false

static

Have been a SIGINT already registered?

SORT_INC

std::string Aqua::CalcServer::SORT_INC = xxd2string(Sort_hcl_in, Sort_hcl_in_len)

SORT_SRC

std::string Aqua::CalcServer::SORT_SRC = xxd2string(Sort_cl_in, Sort_cl_in_len)

UNSORT_INC

std::string Aqua::CalcServer::UNSORT_INC = xxd2string(UnSort_hcl_in, UnSort_hcl_in_len)

UNSORT_SRC

std::string Aqua::CalcServer::UNSORT_SRC = xxd2string(UnSort_cl_in, UnSort_cl_in_len)
