Aqua::CalcServer::UnSort Class Reference

Recover the original id of each particle. More...

#include <UnSort.hpp>

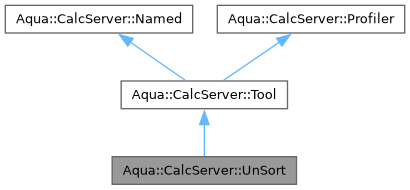

Inheritance diagram for Aqua::CalcServer::UnSort:

Collaboration diagram for Aqua::CalcServer::UnSort:

Public Member Functions
	UnSort (const std::string name, const std::string var_name, const std::string permutations_name="id", bool once=false)
	~UnSort ()
void	setup ()
InputOutput::ArrayVariable *	input ()
cl_mem	output ()
Public Member Functions inherited from Aqua::CalcServer::Tool
	Tool (const std::string tool_name, bool once=false)
virtual	~Tool ()
virtual void	execute ()
	Execute the tool measuring the elapsed time.
virtual Tool *	next_tool ()
Tool *	prev_tool () const
void	prev_tool (Tool *tool)
size_t	allocatedMemory () const
unsigned int	used_times () const
void	addElapsedTime (float elapsed_time)
	Add new data to the average and squared elapsed times.
float	elapsedTime (bool averaged=true) const
float	elapsedTimeVariance () const
float	elapsedTimeDeviation () const
virtual int	scope_modifier () const
std::vector< InputOutput::Variable * >	getInputDependencies () const
	Get the input depedencies of the tool.
std::vector< InputOutput::Variable * >	getOutputDependencies () const
	Get the output depedencies of the tool.
std::tuple< std::vector< InputOutput::Variable * >, std::vector< InputOutput::Variable * > >	getDependencies () const
	Get the depedencies of the tool.
cl_event	getEvent () const
	Get the tool event.
void	parent (Tool *tool)
	Set the tool parent.
Tool *	parent ()
	Get the tool parent.
Public Member Functions inherited from Aqua::CalcServer::Named
	Named (const std::string name)
	~Named ()
void	name (const std::string tool_name)
const std::string	name () const
	Get the name.
Public Member Functions inherited from Aqua::CalcServer::Profiler
	Profiler ()
	~Profiler ()
std::vector< Profile * >	substages () const
	Get the substages.

Protected Member Functions
cl_event	_execute (const std::vector< cl_event > events)
Protected Member Functions inherited from Aqua::CalcServer::Tool
int	id_in_pipeline () const
std::string	varPrefix () const
	Produce a variable name prefix.
void	next_tool (Tool *tool)
void	allocatedMemory (size_t mem_size)
virtual cl_event	_execute (const UNUSED_PARAM std::vector< cl_event > events)
void	setDependencies (std::vector< std::string > inputs, std::vector< std::string > outputs)
	Set the depedencies of the tool.
void	setDependencies (std::vector< InputOutput::Variable * > inputs, std::vector< InputOutput::Variable * > outputs)
	Set the depedencies of the tool.
void	setDependencies (std::vector< std::string > vars)
	Set the depedencies of the tool.
void	setInputDependencies (std::vector< std::string > vars)
	Set the reading depedencies of the tool.
void	setInputDependencies (std::vector< InputOutput::Variable * > vars)
	Set the reading depedencies of the tool.
void	setOutputDependencies (std::vector< std::string > vars)
	Set the writing depedencies of the tool.
void	setOutputDependencies (std::vector< InputOutput::Variable * > vars)
	Set the writing depedencies of the tool.
void	setDependencies (std::vector< InputOutput::Variable * > vars)
	Set the depedencies of the tool.
const std::vector< cl_event >	getEvents (dep_events which=dep_events::all) const
	Get the list of events that this tool shall wait for.
Protected Member Functions inherited from Aqua::CalcServer::Profiler
void	substages (std::vector< Profile * > instances)
	Set the tool substages.

Additional Inherited Members
Protected Types inherited from Aqua::CalcServer::Tool
enum	dep_events { in = 0x01 , out = 0x02 , all = 0x03 }
Static Protected Member Functions inherited from Aqua::CalcServer::Tool
static std::vector< cl_kernel >	compile (const std::string source, const std::vector< std::string > names, const std::string flags="")
	Compile an OpenCL source code and generate the corresponding kernel.
static cl_kernel	compile_kernel (const std::string source, const std::string kernel_name, const std::string flags="")
	Compile an OpenCL source code and generate the corresponding kernel.

Detailed Description

Recover the original id of each particle.

This tool is not designed for the common usage but as an auxiliar tool for the savers or the MPI syncing, therefore it will not be selectable for the users.

Constructor & Destructor Documentation

UnSort()

Aqua::CalcServer::UnSort::UnSort	(	const std::string	name,
		const std::string	var_name,
		const std::string	permutations_name = "id",
		bool	once = false )

Constructor

Parameters

name	Tool name
var_name	Variable to unsort
permutations_name	Permutations to be considered
once	Run this tool just once. Useful to make initializations

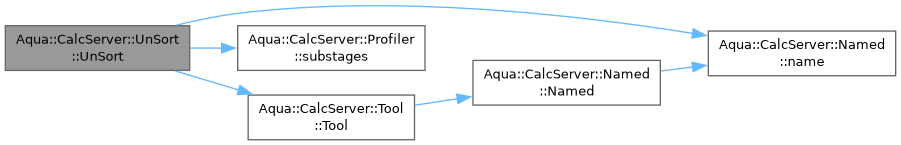

Here is the call graph for this function:

~UnSort()

Aqua::CalcServer::UnSort::~UnSort

(

)

Destructor.

Member Function Documentation

_execute()

cl_event Aqua::CalcServer::UnSort::_execute ( const std::vector< cl_event > events )

protected

Execute the tool

Parameters

events

List of events that shall be waited before safe execution

Returns

OpenCL event to be waited before accessing the dependencies

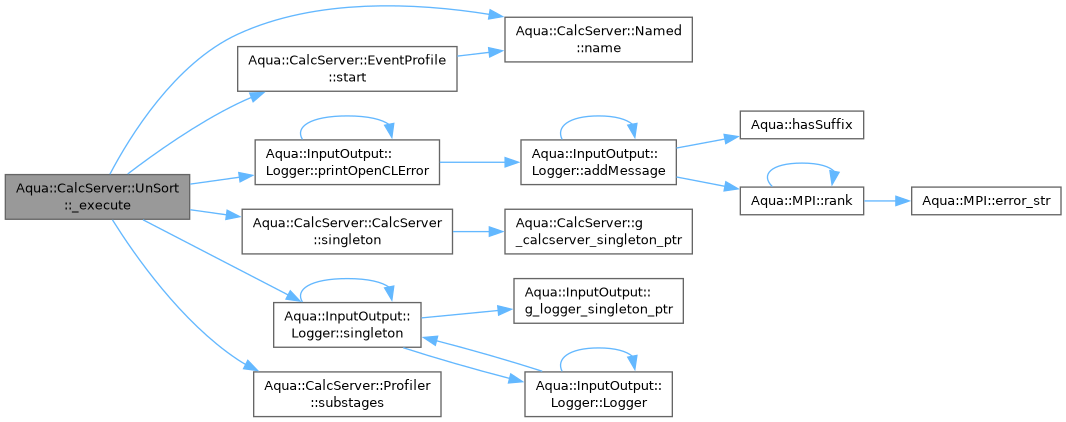

Here is the call graph for this function:

input()

InputOutput::ArrayVariable * Aqua::CalcServer::UnSort::input ( )

inline

Get the input variable.

Returns

The variable to become sorted.

output()

cl_mem Aqua::CalcServer::UnSort::output ( )

inline

Get the memory object where the unsorted data is stored.

Returns

The memory object where the unsorted data is stored.

setup()

void Aqua::CalcServer::UnSort::setup ( )

virtual

Initialize the tool.

Reimplemented from Aqua::CalcServer::Tool.

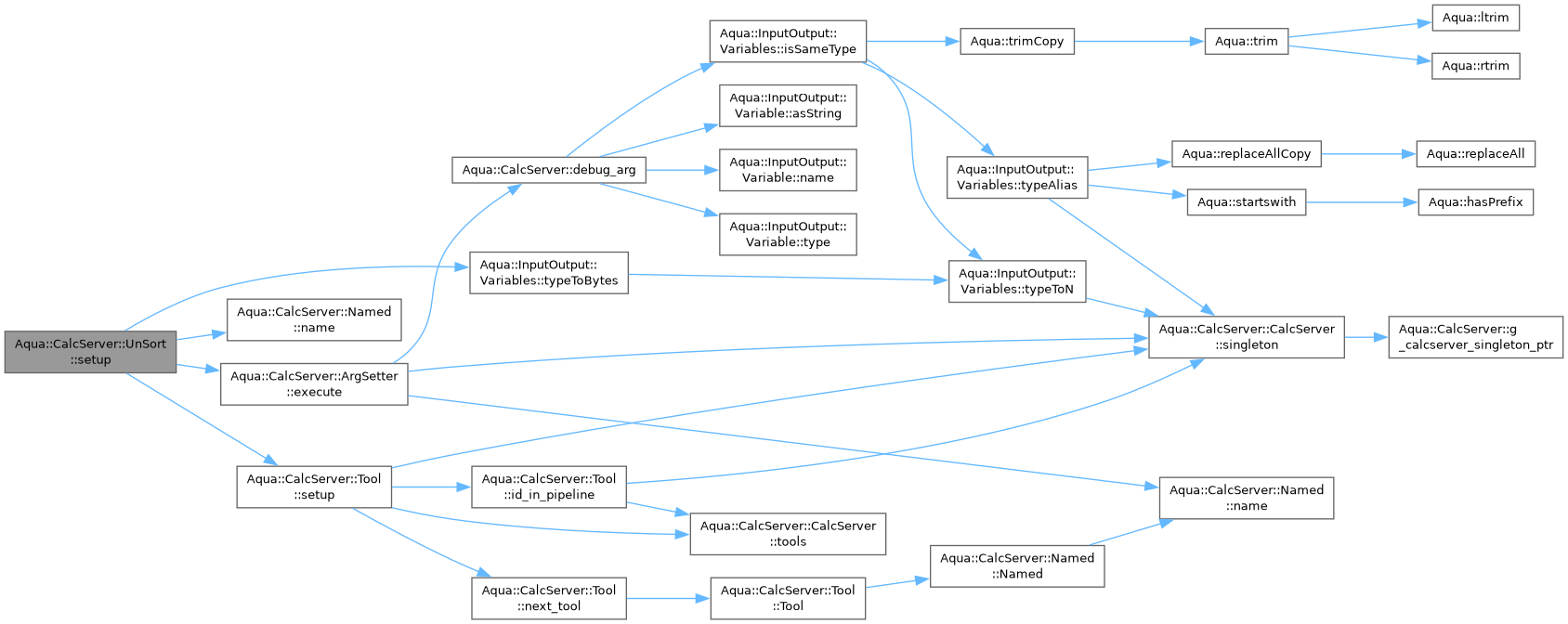

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• /home/pepe/SPH/Code/aquagpusph/aquagpusph/CalcServer/UnSort.hpp
• /home/pepe/SPH/Code/aquagpusph/aquagpusph/CalcServer/UnSort.cpp
