Complex tool to perform the link-list based on an array. This tool include the following steps: More...

#include <LinkList.hpp>

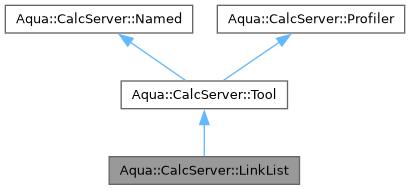

Inheritance diagram for Aqua::CalcServer::LinkList:

[legend]

Collaboration diagram for Aqua::CalcServer::LinkList:

[legend]

Public Member Functions
	LinkList (const std::string tool_name, const std::string input="r", const std::string input_min="r_min", const std::string input_max="r_max", const std::string ihoc="ihoc", const std::string icell="icell", const std::string n_cells="n_cells", const std::string permutations="id_unsorted", const std::string inv_permutations="id_sorted", bool recompute_grid=true, const std::string sorter="radix-sort", bool once=false)
	~LinkList ()
void	setup ()
cl_event	getUserEvent () const
	Get the user event generated by this tool to mark when ncells have been successfully computed and the required memory allocated.
Public Member Functions inherited from Aqua::CalcServer::Tool
	Tool (const std::string tool_name, bool once=false)
virtual	~Tool ()
virtual void	execute ()
	Execute the tool measuring the elapsed time.
virtual Tool *	next_tool ()
Tool *	prev_tool () const
void	prev_tool (Tool *tool)
size_t	allocatedMemory () const
unsigned int	used_times () const
void	addElapsedTime (float elapsed_time)
	Add new data to the average and squared elapsed times.
float	elapsedTime (bool averaged=true) const
float	elapsedTimeVariance () const
float	elapsedTimeDeviation () const
virtual int	scope_modifier () const
std::vector< InputOutput::Variable * >	getInputDependencies () const
	Get the input depedencies of the tool.
std::vector< InputOutput::Variable * >	getOutputDependencies () const
	Get the output depedencies of the tool.
std::tuple< std::vector< InputOutput::Variable * >, std::vector< InputOutput::Variable * > >	getDependencies () const
	Get the depedencies of the tool.
cl_event	getEvent () const
	Get the tool event.
void	parent (Tool *tool)
	Set the tool parent.
Tool *	parent ()
	Get the tool parent.
Public Member Functions inherited from Aqua::CalcServer::Named
	Named (const std::string name)
	~Named ()
void	name (const std::string tool_name)
const std::string	name () const
	Get the name.
Public Member Functions inherited from Aqua::CalcServer::Profiler
	Profiler ()
	~Profiler ()
std::vector< Profile * >	substages () const
	Get the substages.

Protected Member Functions
template<typename T>
void	nCells ()
	Compute the number of cells.
void	allocate ()
	Allocate the "ihoc" array.
void	setVariables ()
	Update the changed variables.
cl_event	_execute (const std::vector< cl_event > events)
template<>
void	nCells ()
template<>
void	nCells ()
Protected Member Functions inherited from Aqua::CalcServer::Tool
int	id_in_pipeline () const
std::string	varPrefix () const
	Produce a variable name prefix.
void	next_tool (Tool *tool)
void	allocatedMemory (size_t mem_size)
virtual cl_event	_execute (const UNUSED_PARAM std::vector< cl_event > events)
void	setDependencies (std::vector< std::string > inputs, std::vector< std::string > outputs)
	Set the depedencies of the tool.
void	setDependencies (std::vector< InputOutput::Variable * > inputs, std::vector< InputOutput::Variable * > outputs)
	Set the depedencies of the tool.
void	setDependencies (std::vector< std::string > vars)
	Set the depedencies of the tool.
void	setInputDependencies (std::vector< std::string > vars)
	Set the reading depedencies of the tool.
void	setInputDependencies (std::vector< InputOutput::Variable * > vars)
	Set the reading depedencies of the tool.
void	setOutputDependencies (std::vector< std::string > vars)
	Set the writing depedencies of the tool.
void	setOutputDependencies (std::vector< InputOutput::Variable * > vars)
	Set the writing depedencies of the tool.
void	setDependencies (std::vector< InputOutput::Variable * > vars)
	Set the depedencies of the tool.
const std::vector< cl_event >	getEvents (dep_events which=dep_events::all) const
	Get the list of events that this tool shall wait for.
Protected Member Functions inherited from Aqua::CalcServer::Profiler
void	substages (std::vector< Profile * > instances)
	Set the tool substages.

Additional Inherited Members
Protected Types inherited from Aqua::CalcServer::Tool
enum	dep_events { in = 0x01 , out = 0x02 , all = 0x03 }
Static Protected Member Functions inherited from Aqua::CalcServer::Tool
static std::vector< cl_kernel >	compile (const std::string source, const std::vector< std::string > names, const std::string flags="")
	Compile an OpenCL source code and generate the corresponding kernel.
static cl_kernel	compile_kernel (const std::string source, const std::string kernel_name, const std::string flags="")
	Compile an OpenCL source code and generate the corresponding kernel.

Detailed Description

Complex tool to perform the link-list based on an array. This tool include the following steps:

Minimum and maximum positions computations
1. Number of cells calculation
2. "ihoc" array allocation
3. "ihoc" and "icell" calculations
4. Radix sort of "icell", computing permutation array "id_sorted" and "id_unsorted" as well.
  Note
  Hardcoded versions of the files CalcServer/LinkList.cl.in and CalcServer/LinkList.hcl.in are internally included as a text array.

  Warning
  This tool is assuming that "support" and "h" variables remains constant

Constructor & Destructor Documentation

◆ LinkList()

Aqua::CalcServer::LinkList::LinkList	(	const std::string	tool_name,
		const std::string	input = "r",
		const std::string	input_min = "r_min",
		const std::string	input_max = "r_max",
		const std::string	ihoc = "ihoc",
		const std::string	icell = "icell",
		const std::string	n_cells = "n_cells",
		const std::string	permutations = "id_unsorted",
		const std::string	inv_permutations = "id_sorted",
		bool	recompute_grid = true,
		const std::string	sorter = "radix-sort",
		bool	once = false )

Constructor.

Parameters

tool_name	Tool name.
input	Input array to be used as the particles positions.
input_min	Minimum of the particles positions.
input_max	Maximum of the particles positions.
ihoc	Head of cells array.
icell	Cell of each particle.
n_cells	Number of cells.
permutations	Variable where the permutations will be stored.
inv_permutations	Variable where the inverse permutations will be stored.
recompute_grid	Should be `input_min` and `input_max` recomputed or readed from the variables.
sorter	The sorting tool, either "bitonic" or "radix-sort"
once	Run this tool just once. Useful to make initializations.

Note: ihoc array is marked as reallocatable with Aqua::InputOutput::ArrayVariable::reallocatable(), since it might need to be extended

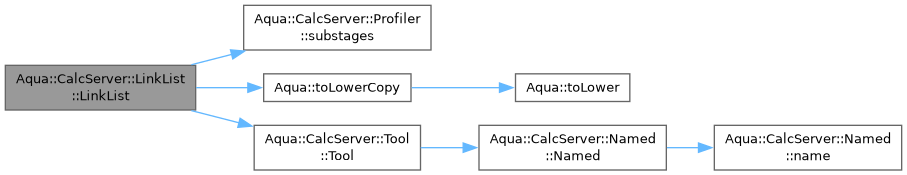

Here is the call graph for this function:

◆ ~LinkList()

Aqua::CalcServer::LinkList::~LinkList ( )

Destructor

Member Function Documentation

◆ _execute()

cl_event Aqua::CalcServer::LinkList::_execute ( const std::vector< cl_event > events )

protected

Execute the tool

Parameters

events List of events that shall be waited before safe execution

Returns: OpenCL event to be waited before accessing the dependencies

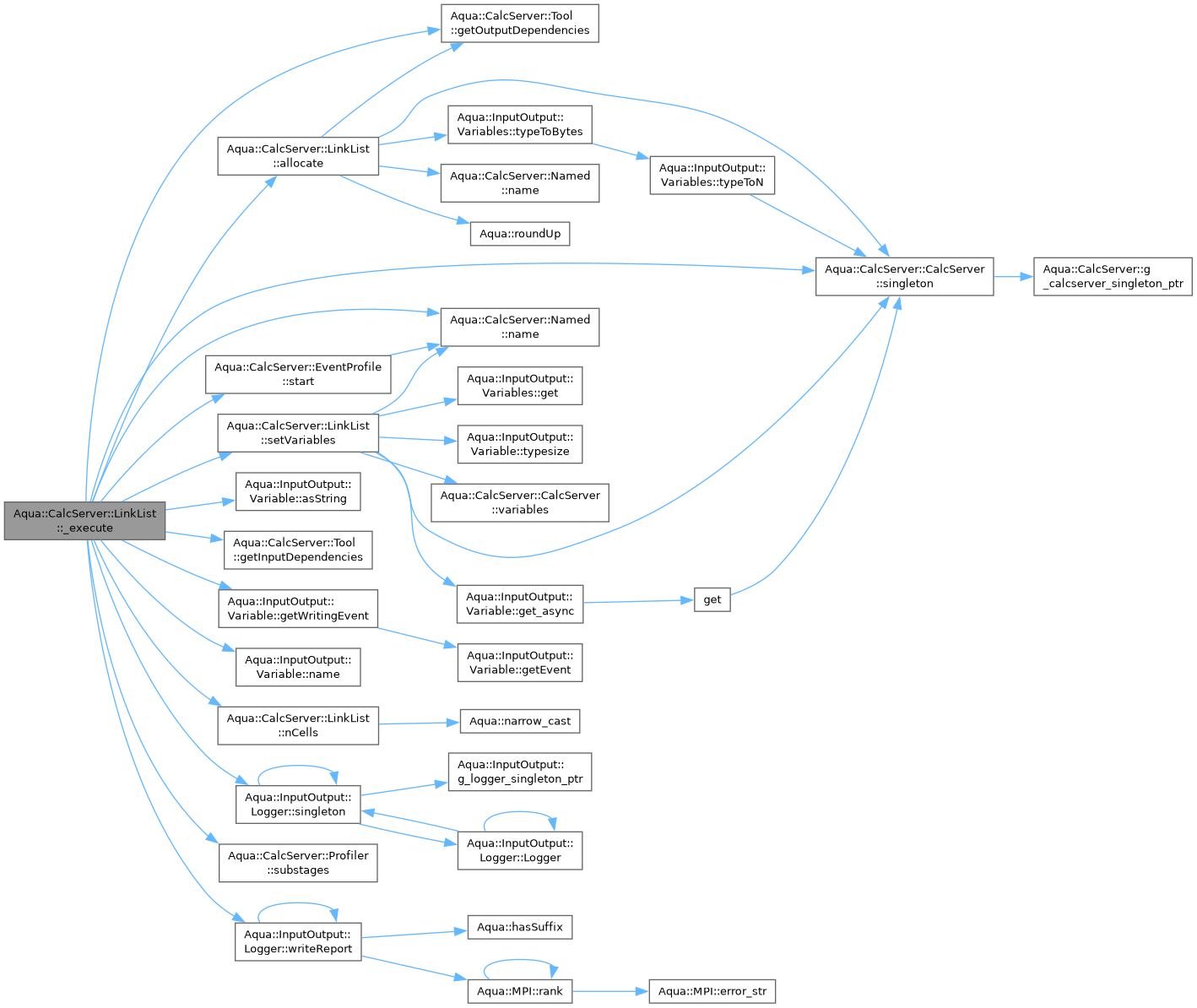

Here is the call graph for this function:

◆ allocate()

void Aqua::CalcServer::LinkList::allocate ( )

protected

Allocate the "ihoc" array.

Note: This method is publicly available to make it accessible from an OpenCL callback

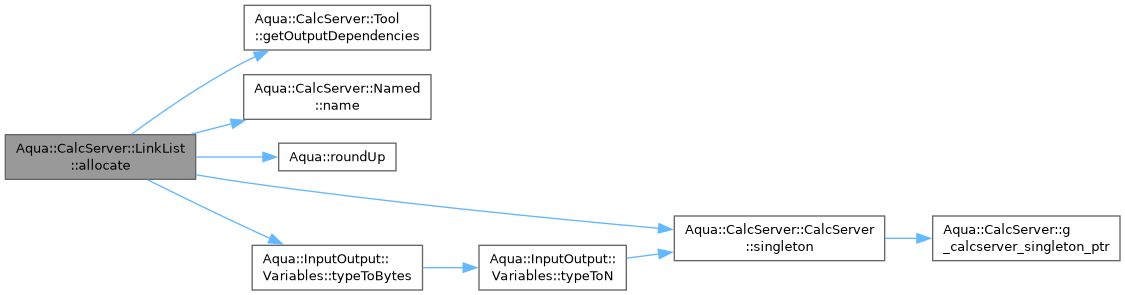

Here is the call graph for this function:

◆ getUserEvent()

cl_event Aqua::CalcServer::LinkList::getUserEvent ( ) const

inline

Get the user event generated by this tool to mark when ncells have been successfully computed and the required memory allocated.

Returns: The event

◆ nCells() [1/3]

template<>

void Aqua::CalcServer::LinkList::nCells ( )

protected

Here is the call graph for this function:

◆ nCells() [2/3]

template<>

void Aqua::CalcServer::LinkList::nCells ( )

protected

Here is the call graph for this function:

◆ nCells() [3/3]

template<typename T>

void Aqua::CalcServer::LinkList::nCells ( )

protected

Compute the number of cells.

Note: This method is publicly available to make it accessible from an OpenCL callback

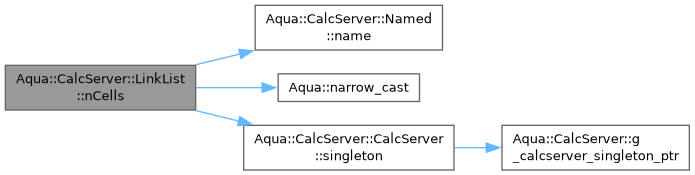

Here is the call graph for this function:

◆ setup()

void Aqua::CalcServer::LinkList::setup ( )

virtual

Initialize the tool.

Reimplemented from Aqua::CalcServer::Tool.

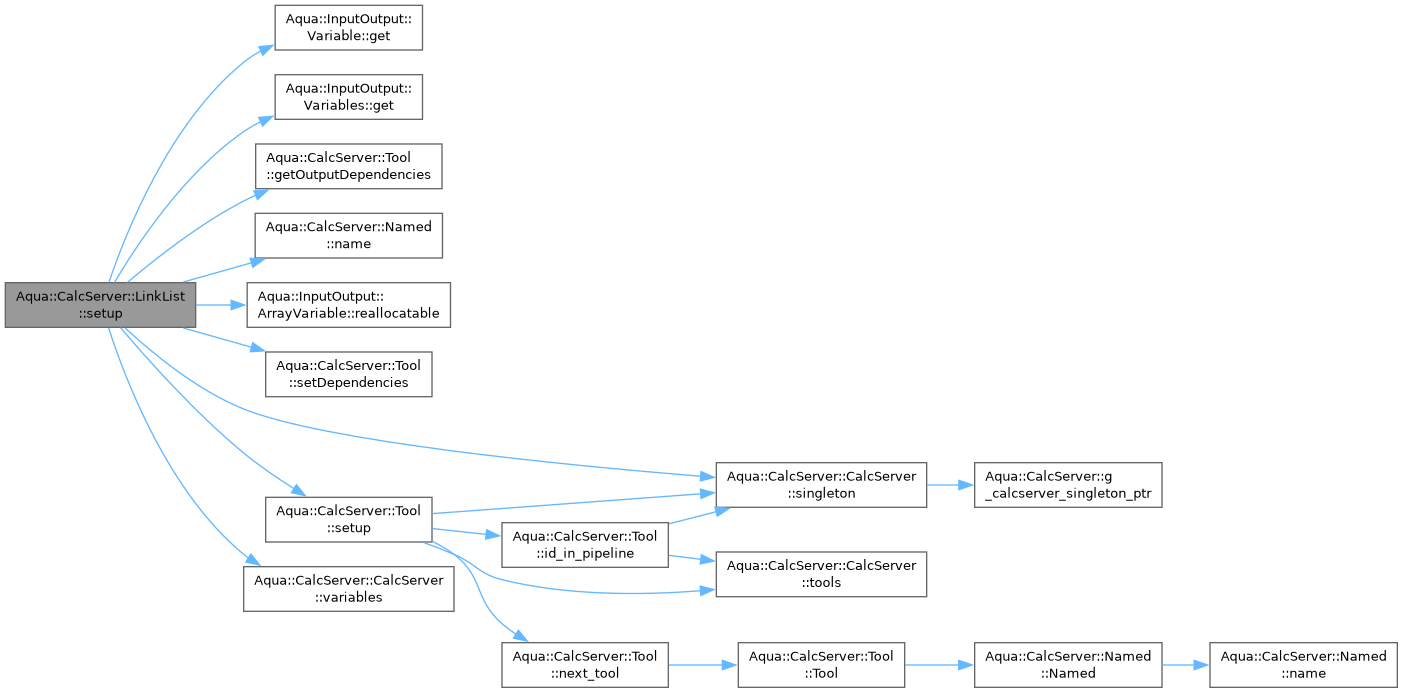

Here is the call graph for this function:

◆ setVariables()

void Aqua::CalcServer::LinkList::setVariables ( )

protected

Update the changed variables.

Note: This method is publicly available to make it accessible from an OpenCL callback

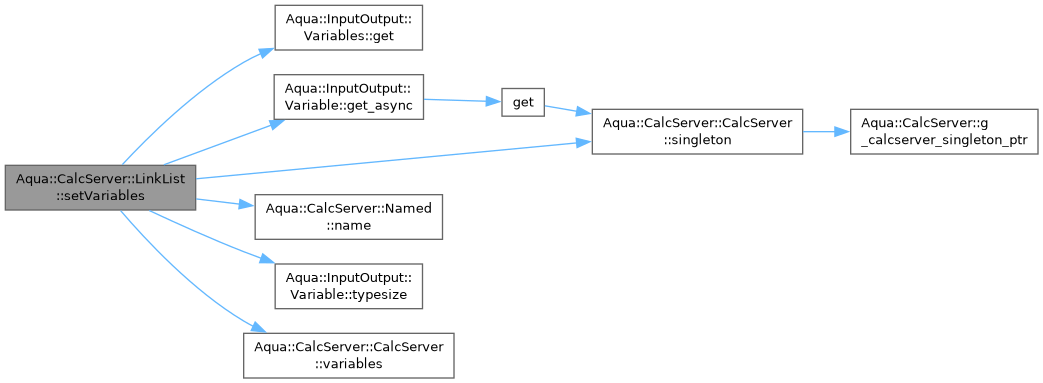

Here is the call graph for this function:

The documentation for this class was generated from the following files:

/home/pepe/SPH/Code/aquagpusph/aquagpusph/CalcServer/LinkList.hpp
/home/pepe/SPH/Code/aquagpusph/aquagpusph/CalcServer/LinkList.cpp
