Aqua::CalcServer::Reports::TabFile Class Reference

Runtime output file. More...

#include <TabFile.hpp>

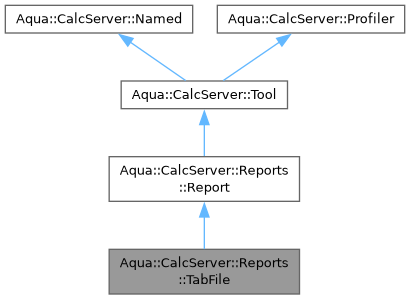

Inheritance diagram for Aqua::CalcServer::Reports::TabFile:

Collaboration diagram for Aqua::CalcServer::Reports::TabFile:

Public Member Functions
	TabFile (const std::string tool_name, const std::string fields, const std::string output_file)
	Constructor.
	~TabFile ()
	Destructor.
void	setup ()
	Initialize the tool.
void	print ()
Public Member Functions inherited from Aqua::CalcServer::Reports::Report
	Report (const std::string tool_name, const std::string fields, unsigned int ipf=1, float fps=0.f)
	Constructor.
virtual	~Report ()
	Destructor.
const std::string	data (bool with_title=true, bool with_names=true, bool synced=false)
	Return the text string of the data to be printed.
cl_event	getUserEvent () const
	Get the user event generated by this tool to mark when is finished.
void	setUserEventStatus (cl_int status) const
	Set the user event status.
Public Member Functions inherited from Aqua::CalcServer::Tool
	Tool (const std::string tool_name, bool once=false)
virtual	~Tool ()
virtual void	execute ()
	Execute the tool measuring the elapsed time.
virtual Tool *	next_tool ()
Tool *	prev_tool () const
void	prev_tool (Tool *tool)
size_t	allocatedMemory () const
unsigned int	used_times () const
void	addElapsedTime (float elapsed_time)
	Add new data to the average and squared elapsed times.
float	elapsedTime (bool averaged=true) const
float	elapsedTimeVariance () const
float	elapsedTimeDeviation () const
virtual int	scope_modifier () const
std::vector< InputOutput::Variable * >	getInputDependencies () const
	Get the input depedencies of the tool.
std::vector< InputOutput::Variable * >	getOutputDependencies () const
	Get the output depedencies of the tool.
std::tuple< std::vector< InputOutput::Variable * >, std::vector< InputOutput::Variable * > >	getDependencies () const
	Get the depedencies of the tool.
cl_event	getEvent () const
	Get the tool event.
void	parent (Tool *tool)
	Set the tool parent.
Tool *	parent ()
	Get the tool parent.
Public Member Functions inherited from Aqua::CalcServer::Named
	Named (const std::string name)
	~Named ()
void	name (const std::string tool_name)
const std::string	name () const
	Get the name.
Public Member Functions inherited from Aqua::CalcServer::Profiler
	Profiler ()
	~Profiler ()
std::vector< Profile * >	substages () const
	Get the substages.

Protected Member Functions
cl_event	_execute (const std::vector< cl_event > events)
Protected Member Functions inherited from Aqua::CalcServer::Reports::Report
void	processFields (const std::string fields)
	Compute the fields by lines.
std::vector< InputOutput::Variable * >	variables ()
	Get the variables list.
bool	mustUpdate ()
	Check if an output must be performed.
cl_event	setCallback (const std::vector< cl_event > events, void(CL_CALLBACK *cb)(cl_event, cl_int, void *))
	Register a callback to be executed whenever it is possible.
Protected Member Functions inherited from Aqua::CalcServer::Tool
int	id_in_pipeline () const
std::string	varPrefix () const
	Produce a variable name prefix.
void	next_tool (Tool *tool)
void	allocatedMemory (size_t mem_size)
virtual cl_event	_execute (const UNUSED_PARAM std::vector< cl_event > events)
void	setDependencies (std::vector< std::string > inputs, std::vector< std::string > outputs)
	Set the depedencies of the tool.
void	setDependencies (std::vector< InputOutput::Variable * > inputs, std::vector< InputOutput::Variable * > outputs)
	Set the depedencies of the tool.
void	setDependencies (std::vector< std::string > vars)
	Set the depedencies of the tool.
void	setInputDependencies (std::vector< std::string > vars)
	Set the reading depedencies of the tool.
void	setInputDependencies (std::vector< InputOutput::Variable * > vars)
	Set the reading depedencies of the tool.
void	setOutputDependencies (std::vector< std::string > vars)
	Set the writing depedencies of the tool.
void	setOutputDependencies (std::vector< InputOutput::Variable * > vars)
	Set the writing depedencies of the tool.
void	setDependencies (std::vector< InputOutput::Variable * > vars)
	Set the depedencies of the tool.
const std::vector< cl_event >	getEvents (dep_events which=dep_events::all) const
	Get the list of events that this tool shall wait for.
Protected Member Functions inherited from Aqua::CalcServer::Profiler
void	substages (std::vector< Profile * > instances)
	Set the tool substages.

Additional Inherited Members
Protected Types inherited from Aqua::CalcServer::Tool
enum	dep_events { in = 0x01 , out = 0x02 , all = 0x03 }
Static Protected Member Functions inherited from Aqua::CalcServer::Tool
static std::vector< cl_kernel >	compile (const std::string source, const std::vector< std::string > names, const std::string flags="")
	Compile an OpenCL source code and generate the corresponding kernel.
static cl_kernel	compile_kernel (const std::string source, const std::string kernel_name, const std::string flags="")
	Compile an OpenCL source code and generate the corresponding kernel.

Detailed Description

Runtime output file.

A runtime output is an output which is created during the code execution, featured by:

1. Low amount of involved memory
2. Relatively low computational cost Thus, it can be safely computed and printed quite often

Constructor & Destructor Documentation

TabFile()

Aqua::CalcServer::Reports::TabFile::TabFile	(	const std::string	tool_name,
		const std::string	fields,
		const std::string	output_file )

Constructor.

Parameters

tool_name	Tool name
fields	Fields to be printed The fields are separated by commas or semicolons, and the spaces are just ignored The semicolons will also force a line break in the report
output_file	File to be written. Several scape strings can be used, as described in Aqua::newFilePath()

Remarks

The output file will be cleared.

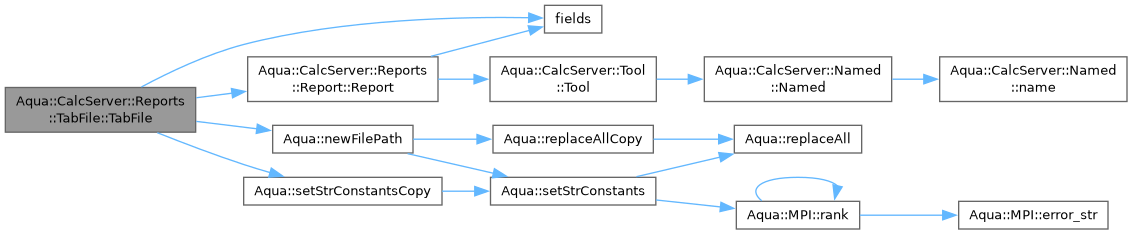

Here is the call graph for this function:

~TabFile()

Aqua::CalcServer::Reports::TabFile::~TabFile

(

)

Destructor.

Member Function Documentation

_execute()

cl_event Aqua::CalcServer::Reports::TabFile::_execute ( const std::vector< cl_event > events )

protected

Execute the tool

Parameters

events

List of events that shall be waited before safe execution

Returns

OpenCL event to be waited before accessing the dependencies

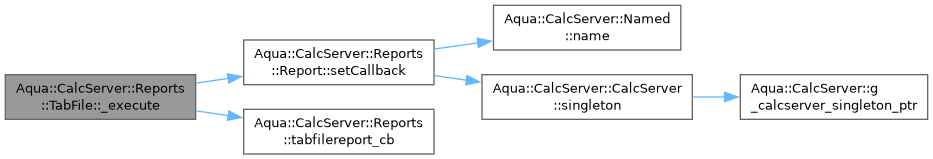

Here is the call graph for this function:

print()

void Aqua::CalcServer::Reports::TabFile::print

(

)

Print the data on the tabulated file

Note

This function is public to let the OpenCL callback call it, but it is not meant to be used by regular users

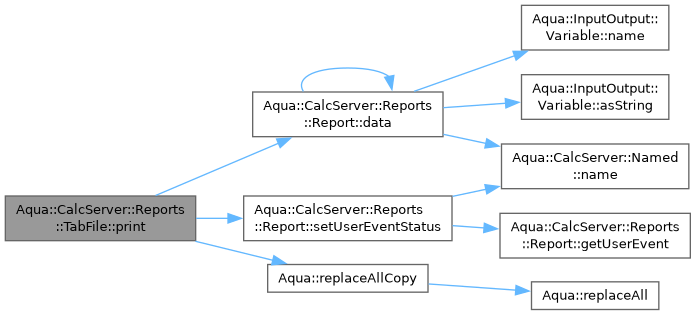

Here is the call graph for this function:

setup()

void Aqua::CalcServer::Reports::TabFile::setup ( )

virtual

Initialize the tool.

Reimplemented from Aqua::CalcServer::Reports::Report.

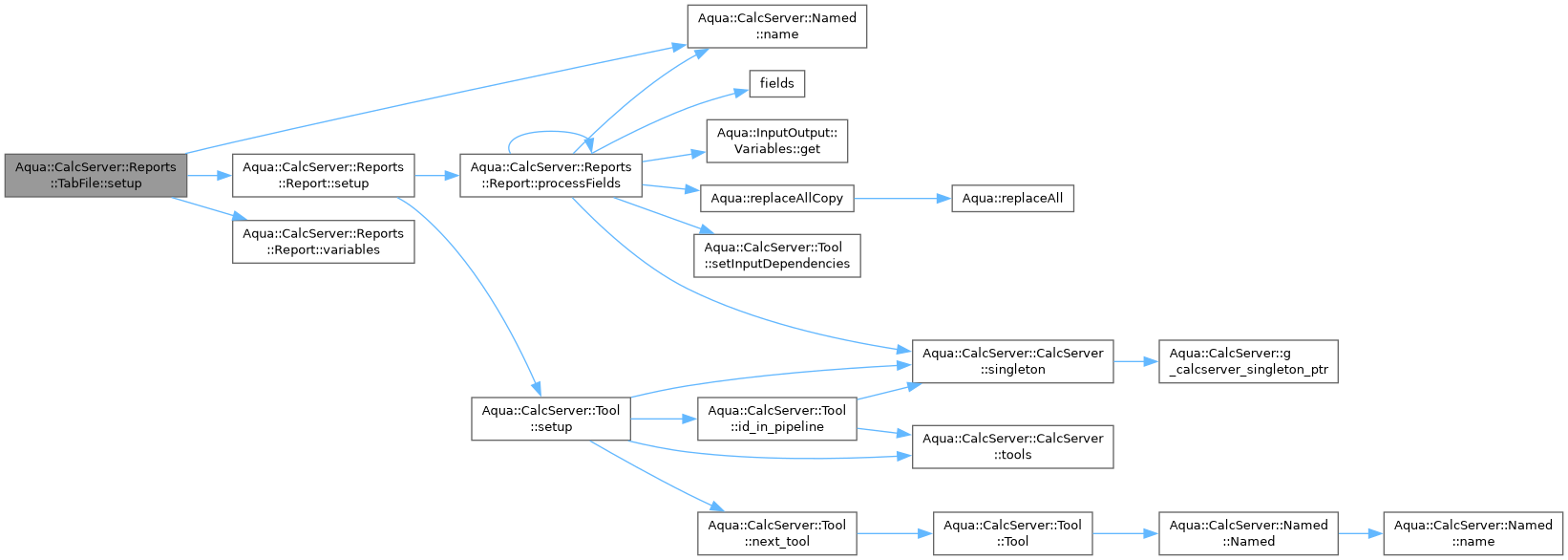

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• /home/pepe/SPH/Code/aquagpusph/aquagpusph/CalcServer/Reports/TabFile.hpp
• /home/pepe/SPH/Code/aquagpusph/aquagpusph/CalcServer/Reports/TabFile.cpp
