Runtime outputs base class. More...

#include <Report.hpp>

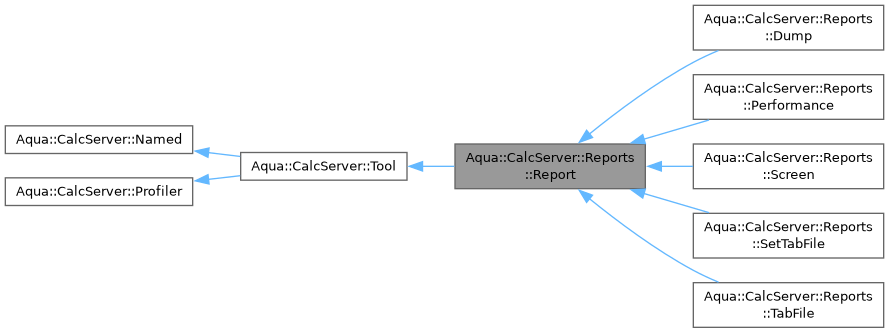

Inheritance diagram for Aqua::CalcServer::Reports::Report:

[legend]

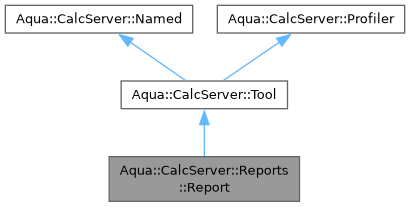

Collaboration diagram for Aqua::CalcServer::Reports::Report:

[legend]

Public Member Functions
	Report (const std::string tool_name, const std::string fields, unsigned int ipf=1, float fps=0.f)
	Constructor.
virtual	~Report ()
	Destructor.
virtual void	setup ()
	Initialize the tool.
const std::string	data (bool with_title=true, bool with_names=true, bool synced=false)
	Return the text string of the data to be printed.
cl_event	getUserEvent () const
	Get the user event generated by this tool to mark when is finished.
void	setUserEventStatus (cl_int status) const
	Set the user event status.
Public Member Functions inherited from Aqua::CalcServer::Tool
	Tool (const std::string tool_name, bool once=false)
virtual	~Tool ()
virtual void	execute ()
	Execute the tool measuring the elapsed time.
virtual Tool *	next_tool ()
Tool *	prev_tool () const
void	prev_tool (Tool *tool)
size_t	allocatedMemory () const
unsigned int	used_times () const
void	addElapsedTime (float elapsed_time)
	Add new data to the average and squared elapsed times.
float	elapsedTime (bool averaged=true) const
float	elapsedTimeVariance () const
float	elapsedTimeDeviation () const
virtual int	scope_modifier () const
std::vector< InputOutput::Variable * >	getInputDependencies () const
	Get the input depedencies of the tool.
std::vector< InputOutput::Variable * >	getOutputDependencies () const
	Get the output depedencies of the tool.
std::tuple< std::vector< InputOutput::Variable * >, std::vector< InputOutput::Variable * > >	getDependencies () const
	Get the depedencies of the tool.
cl_event	getEvent () const
	Get the tool event.
void	parent (Tool *tool)
	Set the tool parent.
Tool *	parent ()
	Get the tool parent.
Public Member Functions inherited from Aqua::CalcServer::Named
	Named (const std::string name)
	~Named ()
void	name (const std::string tool_name)
const std::string	name () const
	Get the name.
Public Member Functions inherited from Aqua::CalcServer::Profiler
	Profiler ()
	~Profiler ()
std::vector< Profile * >	substages () const
	Get the substages.

Protected Member Functions
void	processFields (const std::string fields)
	Compute the fields by lines.
std::vector< InputOutput::Variable * >	variables ()
	Get the variables list.
bool	mustUpdate ()
	Check if an output must be performed.
cl_event	setCallback (const std::vector< cl_event > events, void(CL_CALLBACK cb)(cl_event, cl_int, void ))
	Register a callback to be executed whenever it is possible.
Protected Member Functions inherited from Aqua::CalcServer::Tool
int	id_in_pipeline () const
std::string	varPrefix () const
	Produce a variable name prefix.
void	next_tool (Tool *tool)
void	allocatedMemory (size_t mem_size)
virtual cl_event	_execute (const UNUSED_PARAM std::vector< cl_event > events)
void	setDependencies (std::vector< std::string > inputs, std::vector< std::string > outputs)
	Set the depedencies of the tool.
void	setDependencies (std::vector< InputOutput::Variable * > inputs, std::vector< InputOutput::Variable * > outputs)
	Set the depedencies of the tool.
void	setDependencies (std::vector< std::string > vars)
	Set the depedencies of the tool.
void	setInputDependencies (std::vector< std::string > vars)
	Set the reading depedencies of the tool.
void	setInputDependencies (std::vector< InputOutput::Variable * > vars)
	Set the reading depedencies of the tool.
void	setOutputDependencies (std::vector< std::string > vars)
	Set the writing depedencies of the tool.
void	setOutputDependencies (std::vector< InputOutput::Variable * > vars)
	Set the writing depedencies of the tool.
void	setDependencies (std::vector< InputOutput::Variable * > vars)
	Set the depedencies of the tool.
const std::vector< cl_event >	getEvents (dep_events which=dep_events::all) const
	Get the list of events that this tool shall wait for.
Protected Member Functions inherited from Aqua::CalcServer::Profiler
void	substages (std::vector< Profile * > instances)
	Set the tool substages.

Additional Inherited Members
Protected Types inherited from Aqua::CalcServer::Tool
enum	dep_events { in = 0x01 , out = 0x02 , all = 0x03 }
Static Protected Member Functions inherited from Aqua::CalcServer::Tool
static std::vector< cl_kernel >	compile (const std::string source, const std::vector< std::string > names, const std::string flags="")
	Compile an OpenCL source code and generate the corresponding kernel.
static cl_kernel	compile_kernel (const std::string source, const std::string kernel_name, const std::string flags="")
	Compile an OpenCL source code and generate the corresponding kernel.

Detailed Description

Runtime outputs base class.

A runtime output is an output value that:

Is composed by a relatively low amount of memory
Its computation is not taking too much time Therefore it could be computed and printed oftenly.

It is tipically applied to print some relevant screen information or plot friendly tabulated files.

Constructor & Destructor Documentation

◆ Report()

Aqua::CalcServer::Reports::Report::Report	(	const std::string	tool_name,
		const std::string	fields,
		unsigned int	ipf = 1,
		float	fps = 0.f )

Constructor.

Parameters

tool_name	Tool name.
fields	Fields to be printed. The fields are separated by commas or semicolons, and the spaces are just ignored.
ipf	Iterations per frame, 0 to just ignore this printing criteria.
fps	Frames per second, 0 to just ignore this printing criteria.

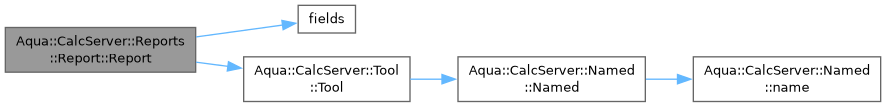

Here is the call graph for this function:

◆ ~Report()

Aqua::CalcServer::Reports::Report::~Report ( )

virtual

Destructor.

Member Function Documentation

◆ data()

const std::string Aqua::CalcServer::Reports::Report::data	(	bool	with_title = true,
		bool	with_names = true,
		bool	synced = false )

Return the text string of the data to be printed.

Parameters

with_title	true if the report title should be inserted, false otherwise.
with_names	true if the variable names should be printed, false otherwise.
synced	true if the function shall block until the variables writing events are dispatched, false otherwise

Returns: Text string to be printed either in a file or in the screen.

Here is the call graph for this function:

◆ getUserEvent()

cl_event Aqua::CalcServer::Reports::Report::getUserEvent ( ) const

inline

Get the user event generated by this tool to mark when is finished.

Returns: The event

Note: This event will be the same than Aqua::CalcServer::Tool::getEvent(), however we need it just in case the callback is executed before Aqua::CalcServer::Tool had time to store it (race condition)

◆ mustUpdate()

bool Aqua::CalcServer::Reports::Report::mustUpdate ( )

protected

Check if an output must be performed.

If the answer is true, the tool will set the time instant as the last printing event

Returns: true if a report should be printed, false otherwise.

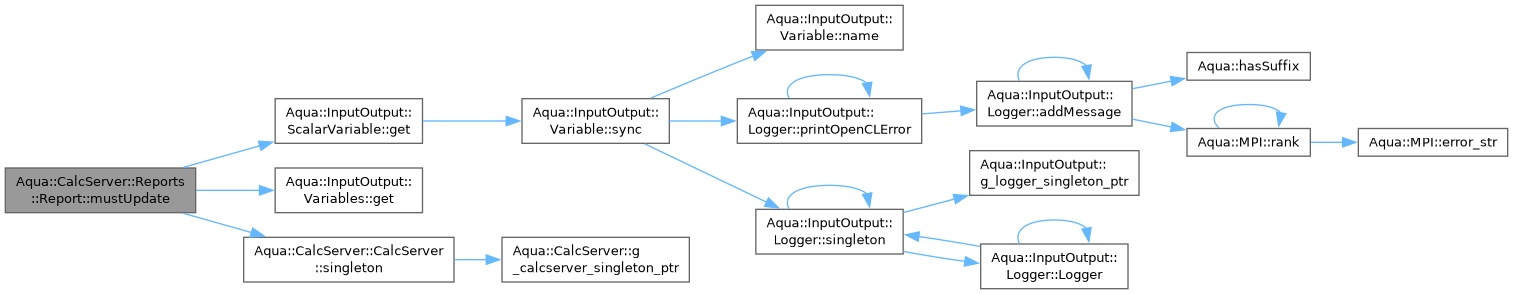

Here is the call graph for this function:

◆ processFields()

void Aqua::CalcServer::Reports::Report::processFields ( const std::string fields )

protected

Compute the fields by lines.

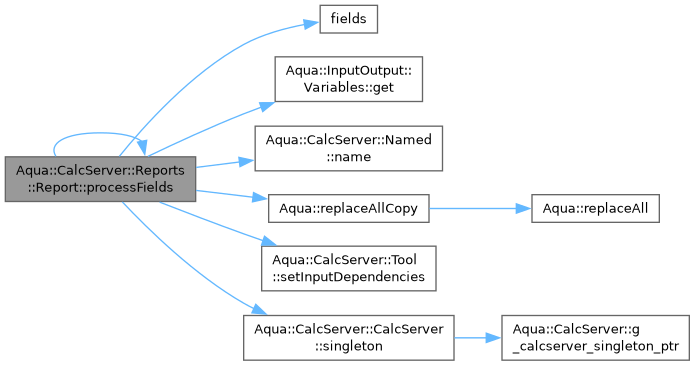

Here is the call graph for this function:

◆ setCallback()

cl_event Aqua::CalcServer::Reports::Report::setCallback	(	const std::vector< cl_event >	events,
		void(CL_CALLBACK cb)(cl_event, cl_int, void )	)

protected

Register a callback to be executed whenever it is possible.

Parameters

events	Events to be waited for. If an empty list is provided, the callback is waiting until all previous enqueued commands (on the current command queue) are finished.
cb	Callback to be called.

Returns: The user event to be set as complete by the callback

Note: The callback is responsible of setting the user event as CL_COMPLETE.; The callback is responsible of calling clReleaseEvent() on the user event

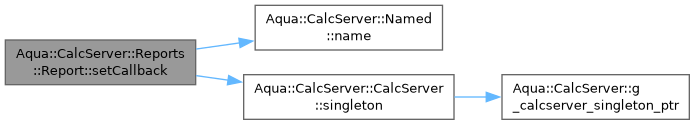

Here is the call graph for this function:

◆ setup()

void Aqua::CalcServer::Reports::Report::setup ( )

virtual

Initialize the tool.

Reimplemented from Aqua::CalcServer::Tool.

Reimplemented in Aqua::CalcServer::Reports::Dump, Aqua::CalcServer::Reports::Performance, Aqua::CalcServer::Reports::Screen, Aqua::CalcServer::Reports::SetTabFile, and Aqua::CalcServer::Reports::TabFile.

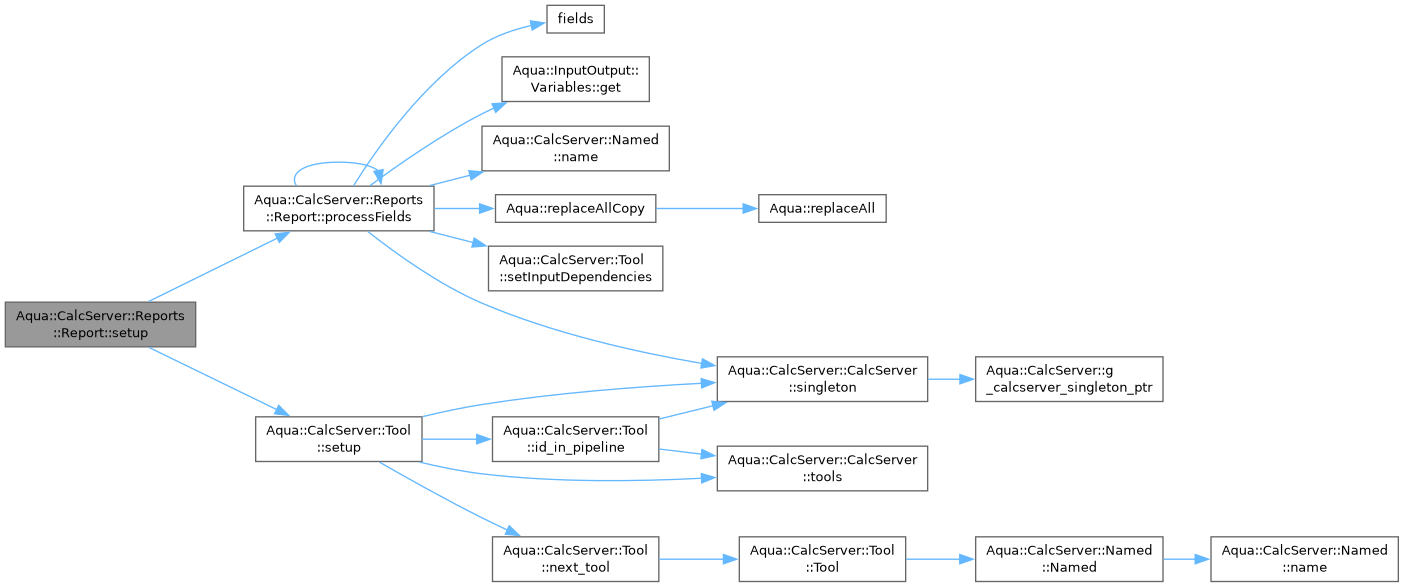

Here is the call graph for this function:

◆ setUserEventStatus()

void Aqua::CalcServer::Reports::Report::setUserEventStatus ( cl_int status ) const

inline

Set the user event status.

Parameters

status Either CL_COMPLETE or a negative integer

Exceptions

std::runtime_error if an OpenCL error is detected

Warning: After calling this function, the event eventually got with getUserEvent() is not valid anymore

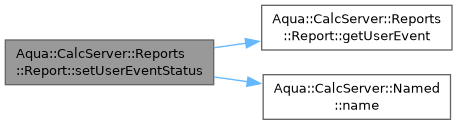

Here is the call graph for this function:

◆ variables()

std::vector< InputOutput::Variable * > Aqua::CalcServer::Reports::Report::variables ( )

inlineprotected

Get the variables list.

Returns: The variables list resulting from _fields

The documentation for this class was generated from the following files:

/home/pepe/SPH/Code/aquagpusph/aquagpusph/CalcServer/Reports/Report.hpp
/home/pepe/SPH/Code/aquagpusph/aquagpusph/CalcServer/Reports/Report.cpp
